TF silo leg and connector roll forming line
- Equipment overview:
- The roll forming machine consists of raft frame , machine base, transmission system and roll forming tools. The transmission system includes motor, reducer, transmission frame.
Components

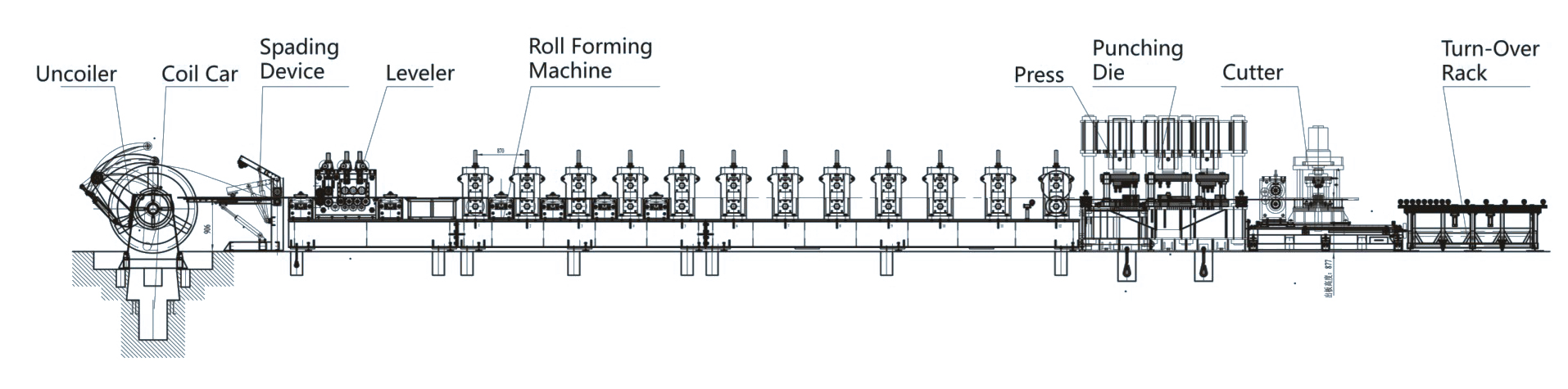

Uncoiling---leveling and feeding----roll forming---punching----cutting --–final product
Specification
The machine base adopts welded structure and has quenching treatment.
2 The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.
Technical parameters:
|
Serial number |
Item |
Unit |
Parameters |
Remark |
|
|
1 |
Suitable material |
Type |
|
hot rolled galvanized steel coil,Q235B ,Q345B,SGH440 |
|
|
strength |
MPa |
345 |
|
||
|
Thickness |
mm |
3--5 |
|
||
|
Coil internal diameter |
mm |
508,610 |
|
||
|
Coil weight |
T |
5 |
|
||
|
2 |
Specification |
mm |
380 |
|
|
|
3 |
Line speed |
m/min |
10 |
|
|
|
4 |
Roller material |
|
D2 quenching treatment |
|
|
|
5 |
Roller driven type |
|
External chain transmission |
|
|
|
6 |
Operating system |
|
Windows2000 |
|
|
|
7 |
Total motor power |
Kw |
About 300 |
|
|
|
8 |
Electric control system |
|
PLC automatic control system |
|
|
|
9 |
Dimension(L*W*H) |
m |
30X2X1.7 |
||
