TF Power Cabinet Column Cold Roll Forming Production Line

Equipment overview:

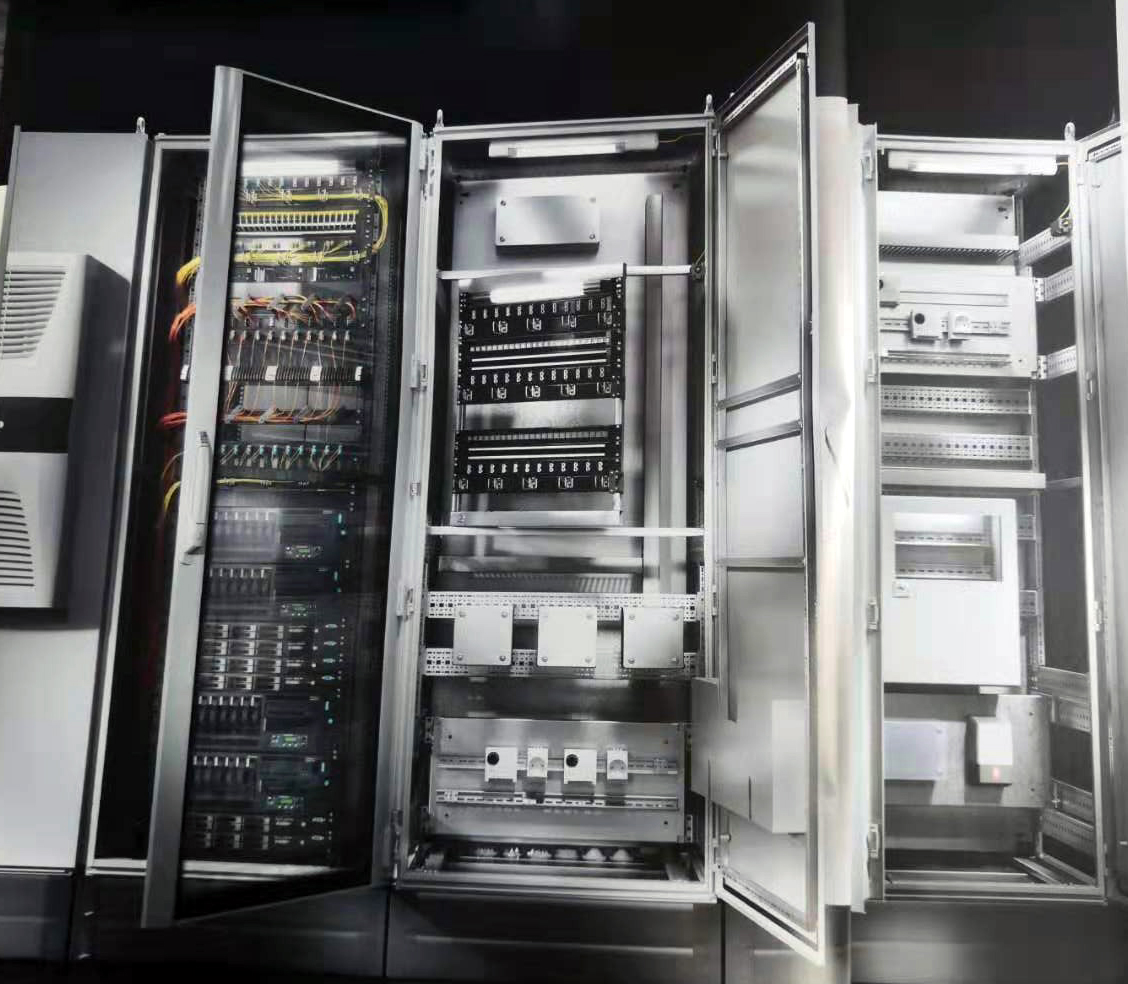

TF35 *28 power cabinet column production line is used to produce low-voltage distribution cabinet column. The production line has the functions of butt welding, punching, forming, seaming , fixed length cutting and detection. It can solve many industry pr
Send E-mailget price
  • Product description
  • Product Details

Components

 TF Power Cabinet Column Cold Roll Forming Production Line

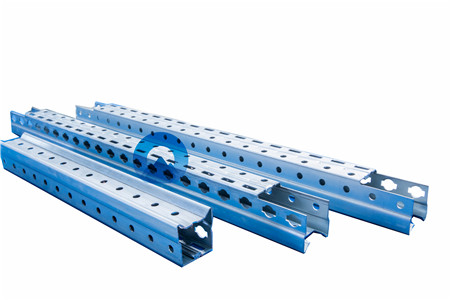

TF35 *28 power cabinet column production line is used to produce low-voltage distribution cabinet column. The production line has the functions of butt welding, punching, forming, seaming , fixed length cutting and detection. It can solve many industry problems such as punching deformation, inconsistent accuracy of different face positions, non-detection of dense punching, fluctuation of material properties and size fluctuation, etc. It can make the comprehensive accuracy of products reach (+0.5) and able to meets customers’ accuracy requirements.

Specification

 TF Power Cabinet Column Cold Roll Forming Production Line
TF Power Cabinet Column Cold Roll Forming Production Line

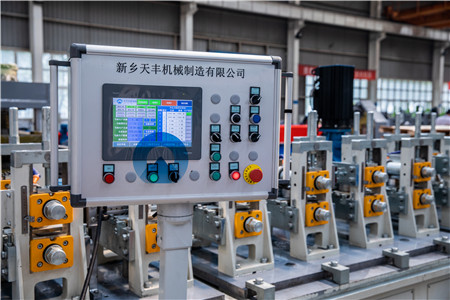

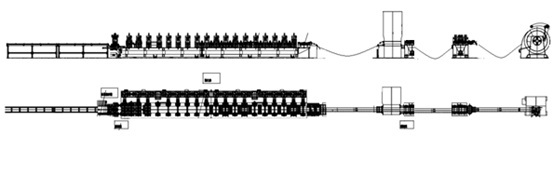

TF35 *28 power cabinet column production line is automated integrated equipment of electrical control, uncoiler, leveler, shearing &butt welding machine (simple), servo feeding system, punch, positioning and guiding group, rolling forming, calibration, cutting off, bilateral discharging etc. It is required that on-line notching and punching should be completed at one time, then to carry out the roll forming production line of packing and stacking pillars, the production speed of the whole line is about 2-8 m/min, the shape tolerance of the product is (+0.5 mm), and the servo feeding accuracy is (+0.15 mm). Short-circuit, over-voltage, over-current and phase-gap protection functions can automatically detect and record saw blade cutting times, punching times, servo motor temperature alarm, air pressure, lubrication and refueling can be displayed on touch screen. When a fault occurs, it automatically sends out sound and light alarm, displays the fault location and fault treatment method, goes beyond the scope, and stops automatically.

Technical parameters:



No.

Items

Unit

Specification

notes


1


Raw material

Steel type



Q235



Strength

MPa

≤195



Thickness

mm

1.25mm



Inner dia.

mm3

300



Weight

T

2



2

Specification

mm

380～530mm



3

Linear speed

m/min

8



4

Roller material



D15 quenching treatment



5

Drives type



External chain transmission



6

Operation system



Windows2000



7

General power

Kw

Approx. 11KW



8

Control system



Plc automatic control



9

Out size (L*W*H)

m

 24*4.5*2.5


 TF Power Cabinet Column Cold Roll Forming Production Line      TF Power Cabinet Column Cold Roll Forming Production Line

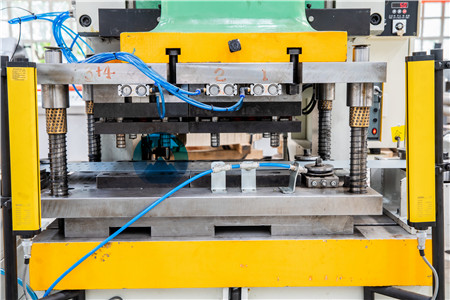

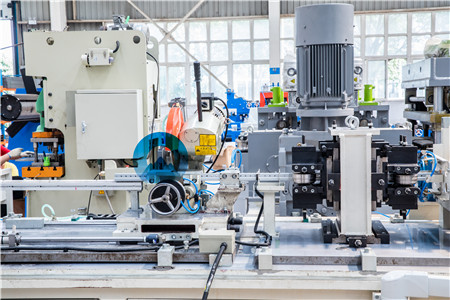

       Punch System
TF Power Cabinet Column Cold Roll Forming Production Line  TF Power Cabinet Column Cold Roll Forming Production Line

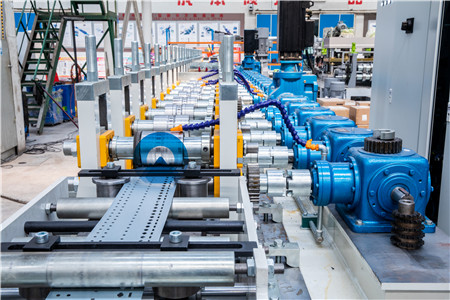

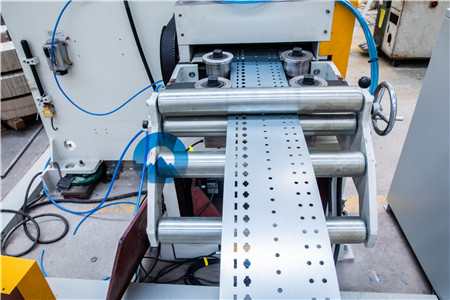

      Roll Forming System
TF Power Cabinet Column Cold Roll Forming Production Line    TF Power Cabinet Column Cold Roll Forming Production Line

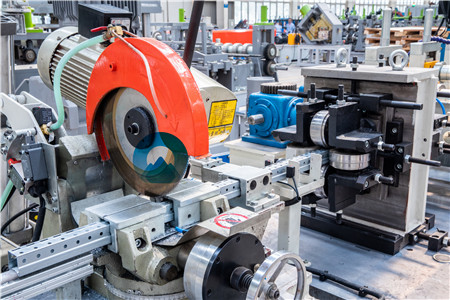

   Cutting System
TF Power Cabinet Column Cold Roll Forming Production Line

TF Power Cabinet Column Cold Roll Forming Production Line

Components

 TF Power Cabinet Column Cold Roll Forming Production Line      TF Power Cabinet Column Cold Roll Forming Production Line
       Punch System
TF Power Cabinet Column Cold Roll Forming Production Line  TF Power Cabinet Column Cold Roll Forming Production Line
      Roll Forming System
TF Power Cabinet Column Cold Roll Forming Production Line    TF Power Cabinet Column Cold Roll Forming Production Line
   Cutting System
TF Power Cabinet Column Cold Roll Forming Production Line
