  • Stainless Metro Rail Roll Forming Line

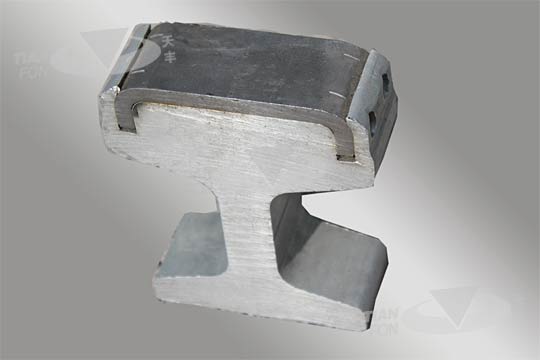

Stainless Metro Rail Roll Forming Line

Equipment overview:

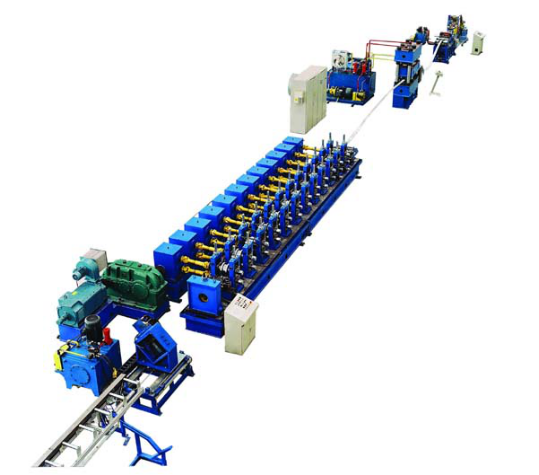

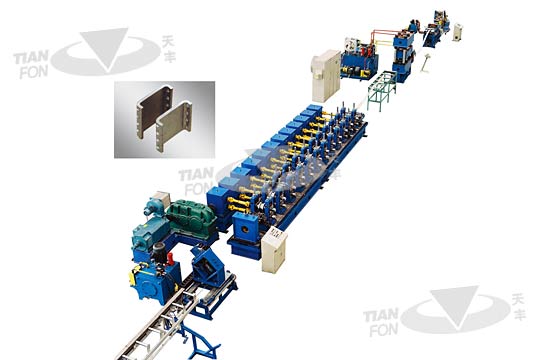

 The production line includes uncoiler, feeding guide, leveler, head cut(face to face weld), feeding machine, punch machine, pattern device, forming cutter, final product rack, hydraulic system, electric control system, line speed:3-6m/min.
Send E-mailget price
  • Product description
  • Product Details

Components

 The production line includes uncoiler, feeding guide, leveler, head cut(face to face weld), feeding machine, punch machine, pattern device, forming cutter, final product rack, hydraulic system, electric control system, line speed:3-6m/min.
Uncoiling –leveling- Looping—Feeding—punching —Roll forming—Cutting –Discharging

Specification



Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type Stainless Steel
strength MPa (X6Cr17)Rm=450Mpa Rpo≥280Mpa
Thickness mm 6
Coil internal diameter mm 500
Coil weight T 5
2 Specification mm 98
3 Line speed m/min 6
4 Roller material
5 Roller driven type
6 Operating system Windows2000
7 Total motor power Kw About 160
8 Electric control system PLC automatic control system
9 Dimension(L*W*H) m

Components
