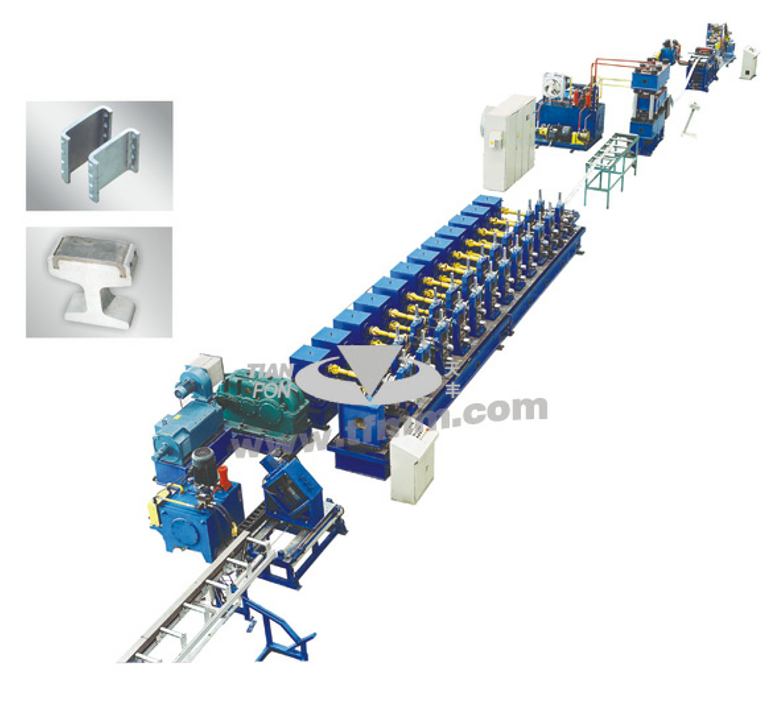

TF Stainless Metro rail automatic roll forming line

Equipment overview:
TF Stainless Metro rail automatic roll forming line, this line consists of un-coiler, feeding guider, leveler, cutting head machine (butt welding ), feeder, pu...
  • Product description
  • Product Details
  • Product Videos

Components

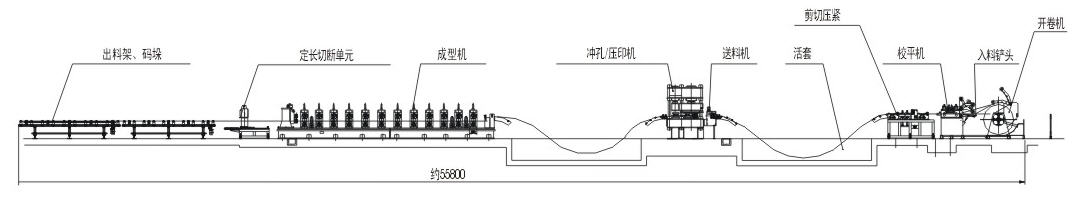

 TF Stainless Metro rail automatic roll forming line, this line consists of un-coiler, feeding guider, leveler, cutting head machine (butt welding ), feeder, puncher, presser, roll forming machine, shaped cutter, discharging rack, hydraulic and electric control system.Production raw material: stainless steel (X6Cr17), panel thickness: 6mm, feeding width: 508mm. final products length: 18.2m. Line speed: 3-6m/min.

Specification

 roll fomring line
 TF Stainless Metro rail automatic roll forming line, this line consists of un-coiler, feeding guider, leveler, cutting head machine (butt welding ), feeder, puncher, presser, roll forming machine, shaped cutter, discharging rack, hydraulic and electric control system.Production raw material: stainless steel (X6Cr17), panel thickness: 6mm, feeding width: 508mm. final products length: 18.2m. Line speed: 3-6m/min.







Technical parameters:



Serial number Item Unit Parameters Remark



1





Suitable material













Type



Stainless Steel



strength

MPa

(X6Cr17)Rm=450Mpa Rpo≥280Mpa



Thickness

mm

6mm



Coil internal diameter

mm

 98±0.2mm



Coil weight

T





2

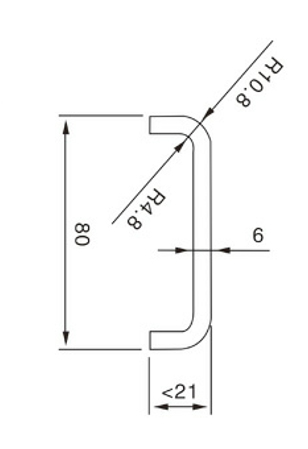

Specification

mm





3

Line speed

m/min

3~6



4

Roller material







5

Roller driven type







6

Operating system







7

Total motor power

Kw

 About 160KW



8

Electric control system



PLC automatic control system



9

Dimension(L*W*H)

Mm




Components





                                           Stainless Metro rail                                                                                                         Stainless Metro rail
