  • PV Bracket/Strut channel Roll Forming Line

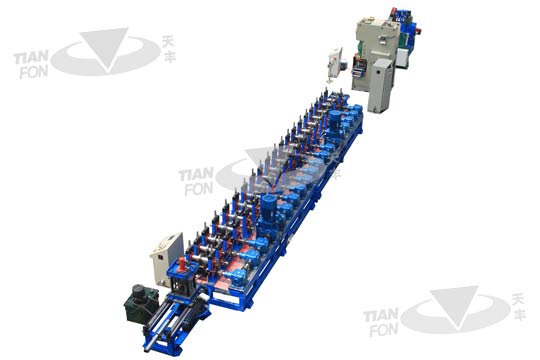

PV rack/Strut channel Roll Forming Line

Equipment overview:
Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

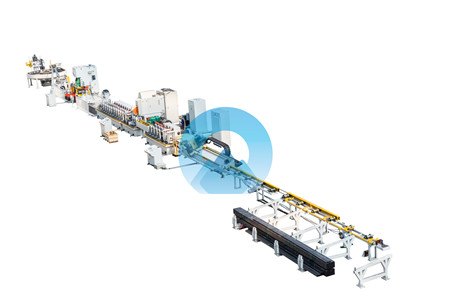

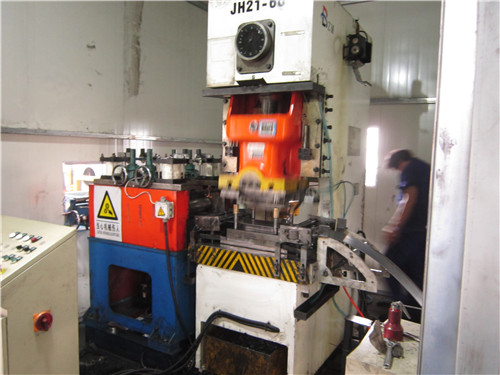

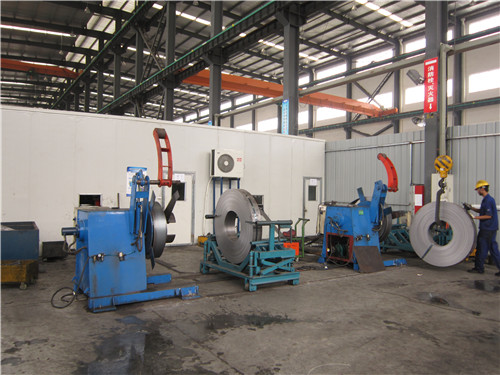

Uncoiling –leveling- Looping—Feeding—punching —Roll forming—Cutting –Product rack

Specification

Equipment overview:
1.Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.
2. Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.
3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.





Technical parameters:

This line with auto flow production functions of uncoiling, butt-welding, leveling, servo feeding, punching, roll forming and track cutting etc, perfectly achieve the joint of punching, roll forming and cutting One operator could run the whole line. Products with high precise, good quality appearance. Machine with stable feature, short production assistance time, production efficient could reach 20m/min.
Serial number Item Unit Parameters Remark
1 Suitable material Type   CR,HR Sheet;Galvanized Sheet
strength MPa ≤350
Thickness mm 1.6-3.2
Coil internal diameter mm 500,600
Coil weight T 5
2 Specification mm 100-320
3 Line speed m/min 25
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About 65
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m 30X2X1.7

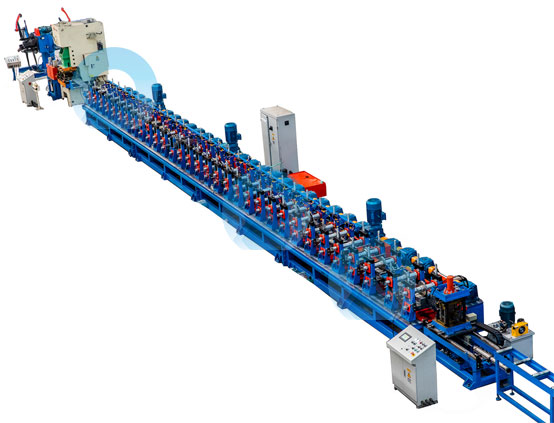

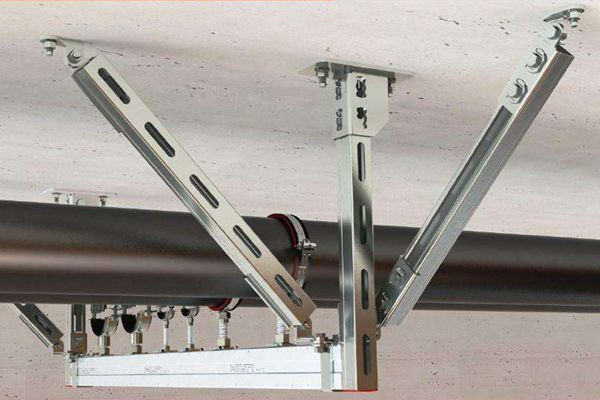

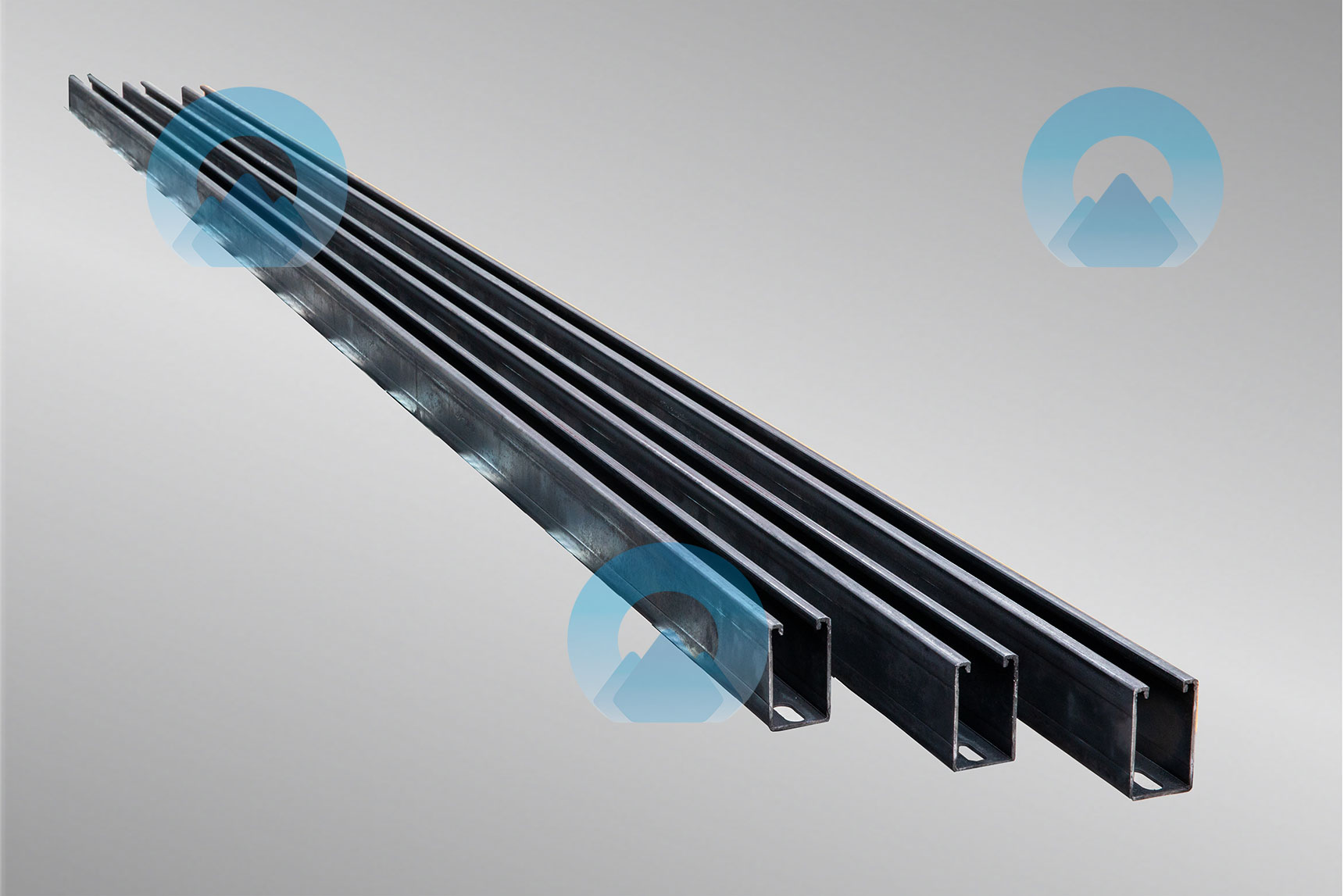

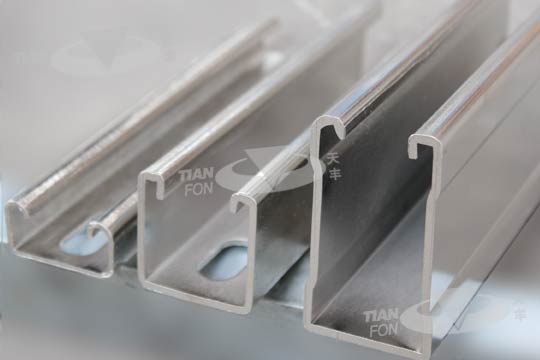

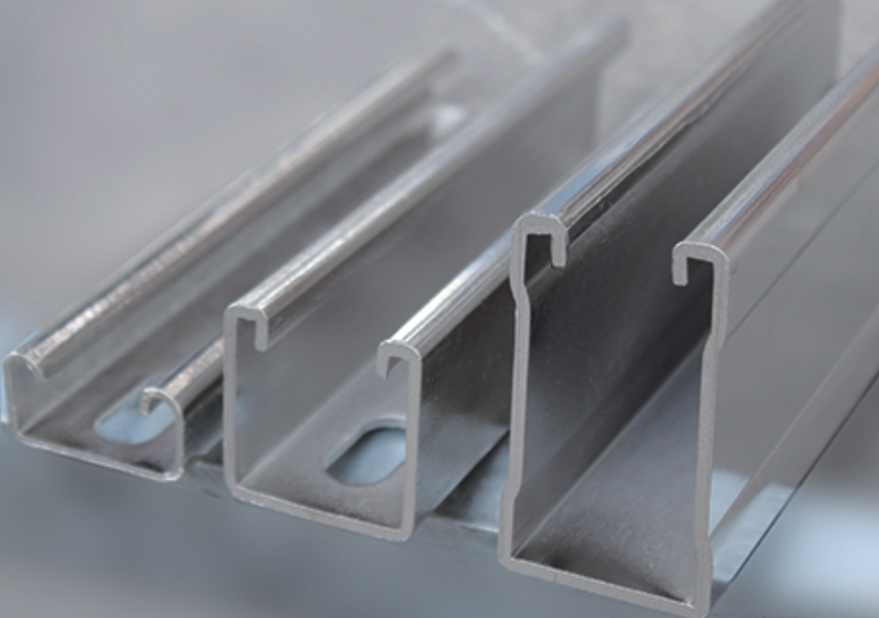

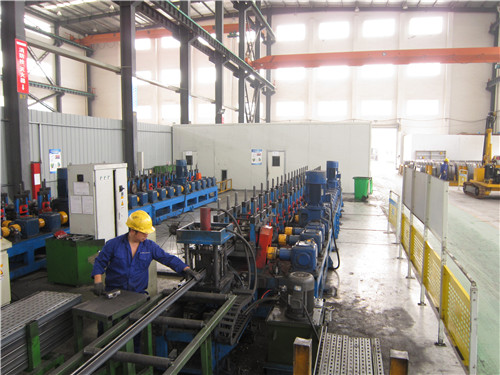

solar channel roll former


solar channel roll former

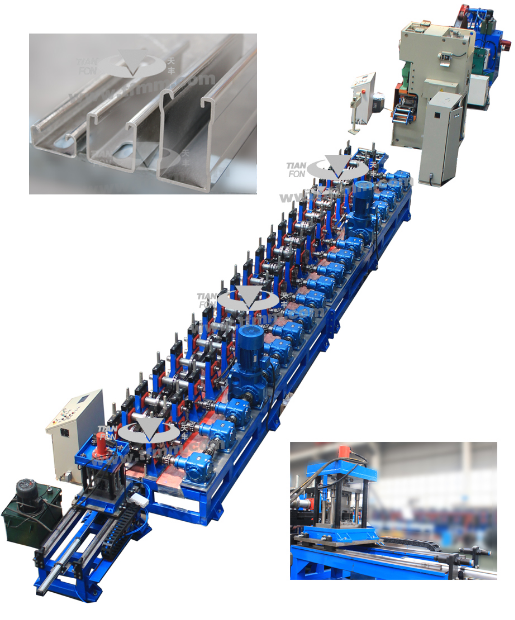

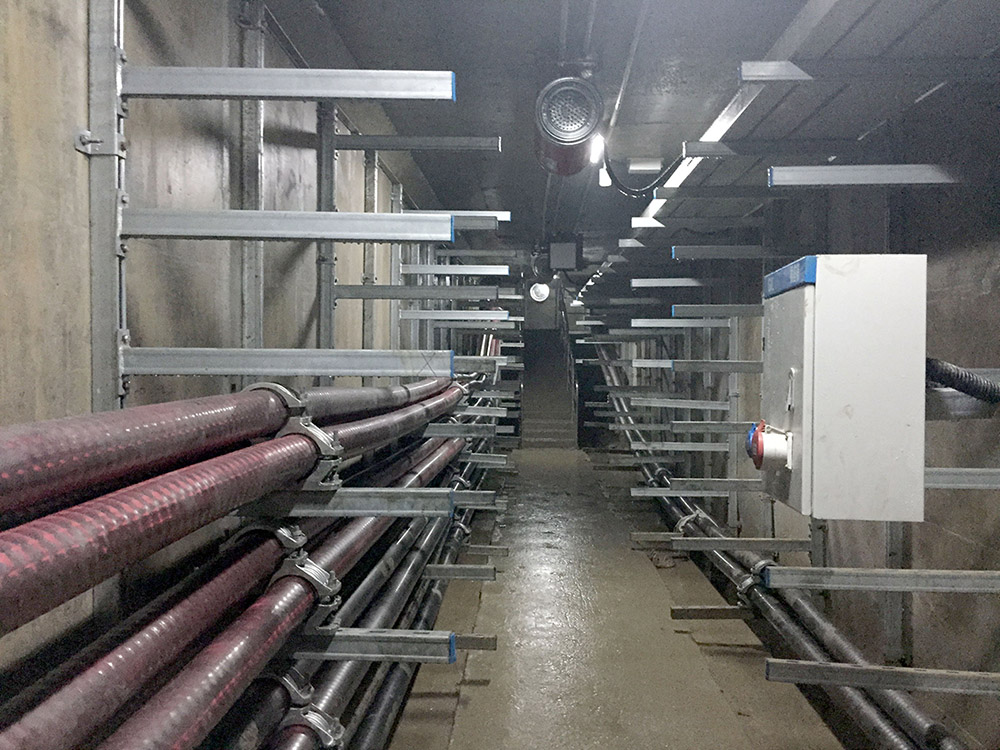

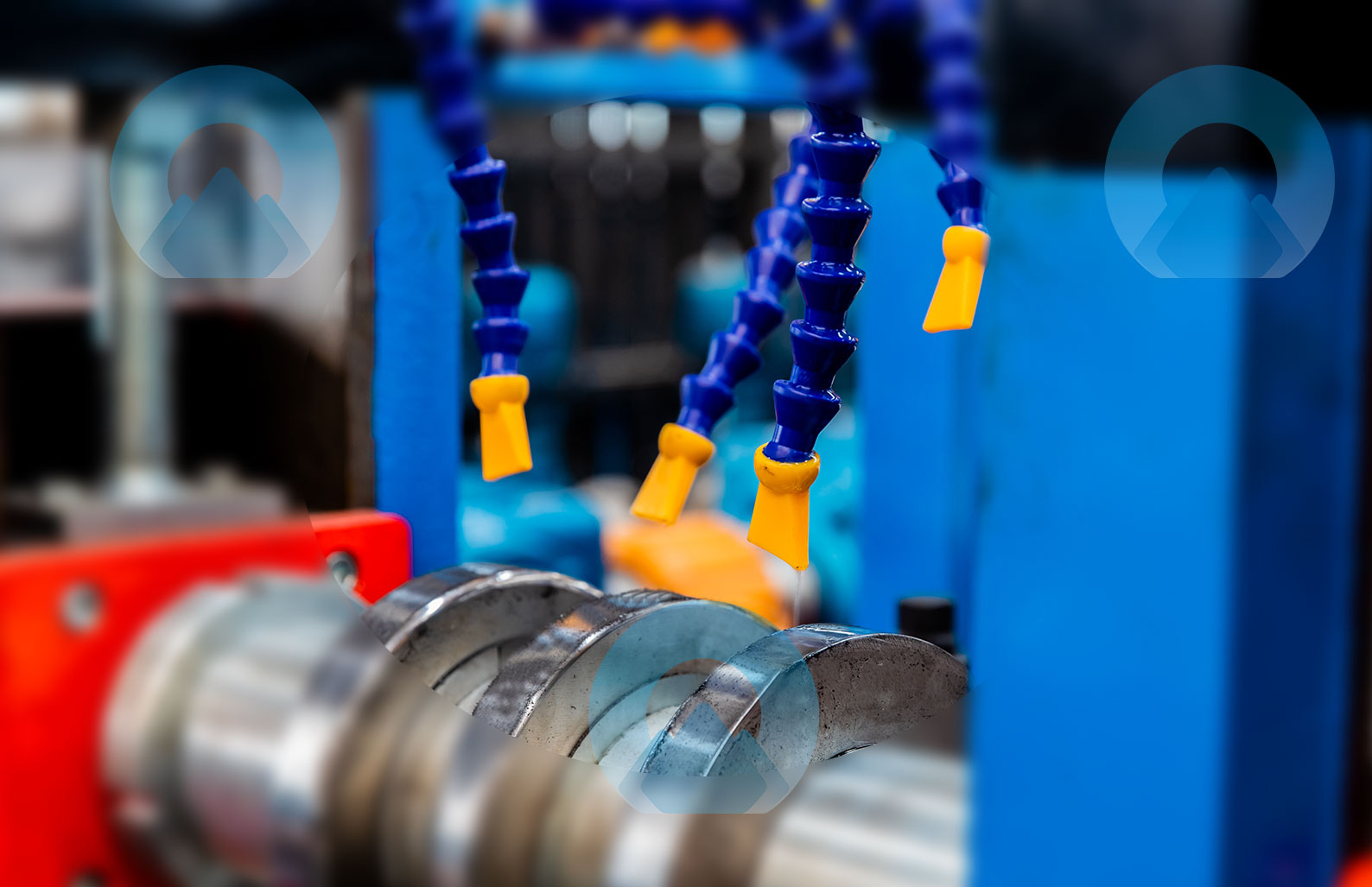

solar channel roll former
