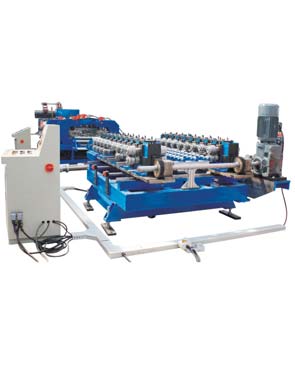

Door Panel Roll Forming Line

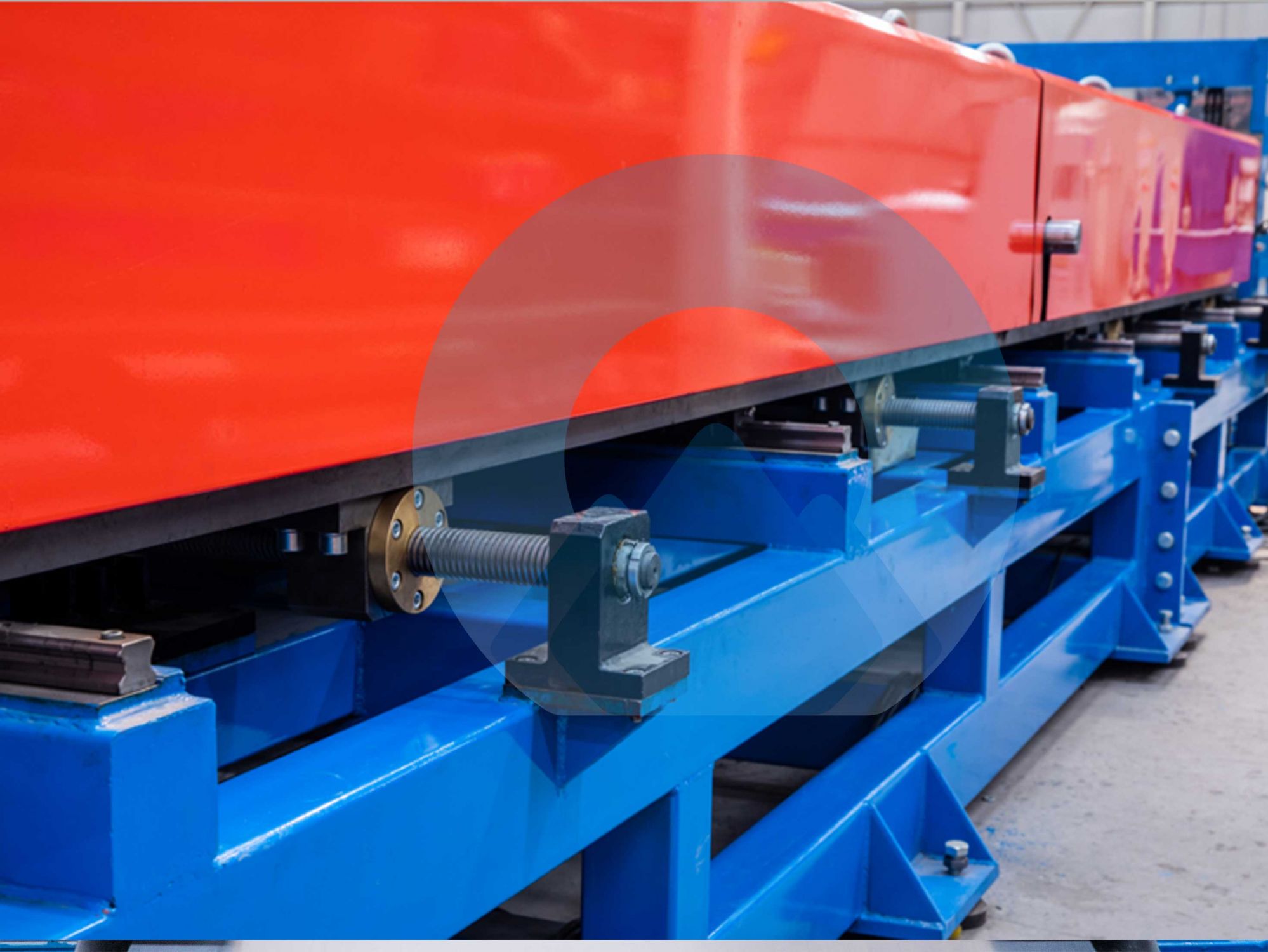

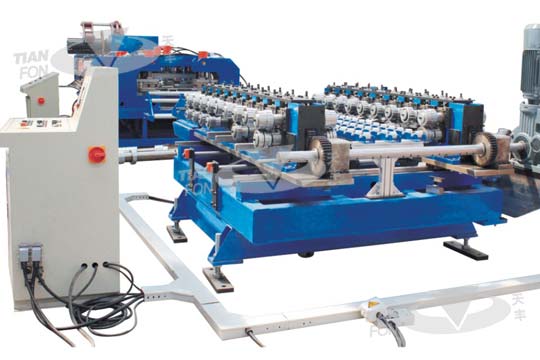

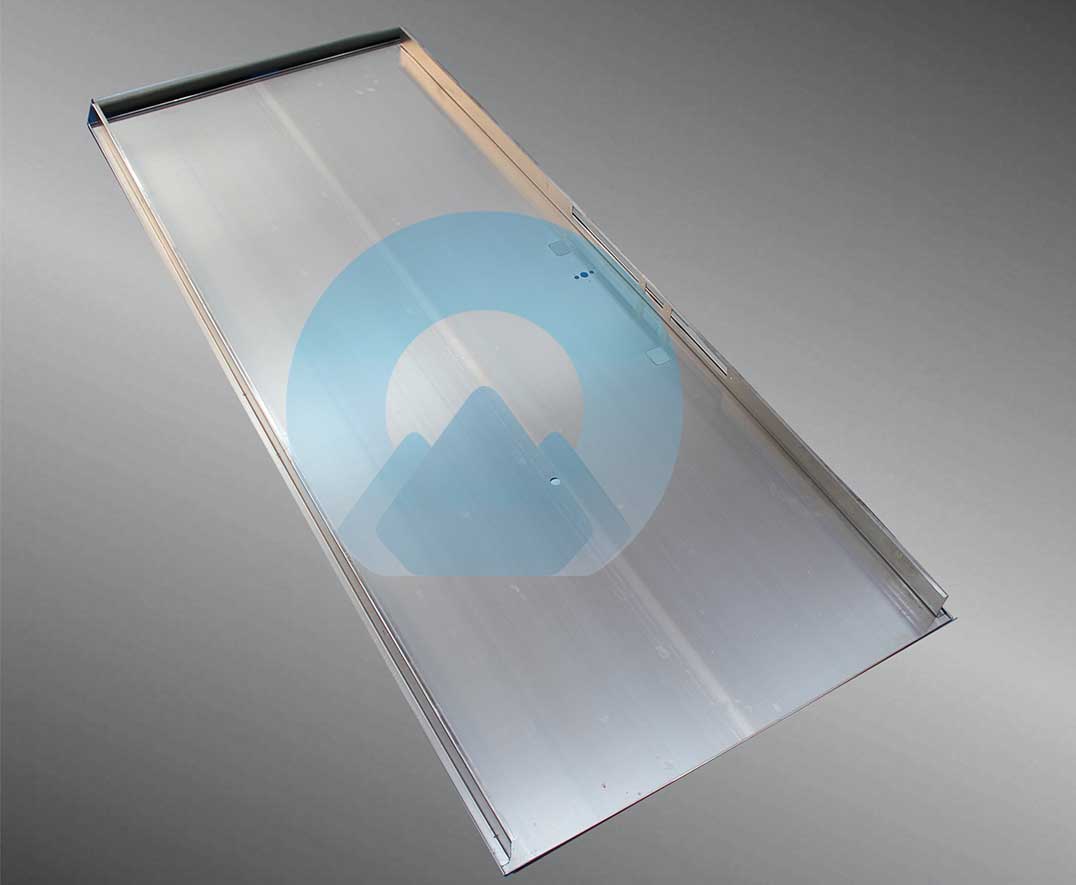

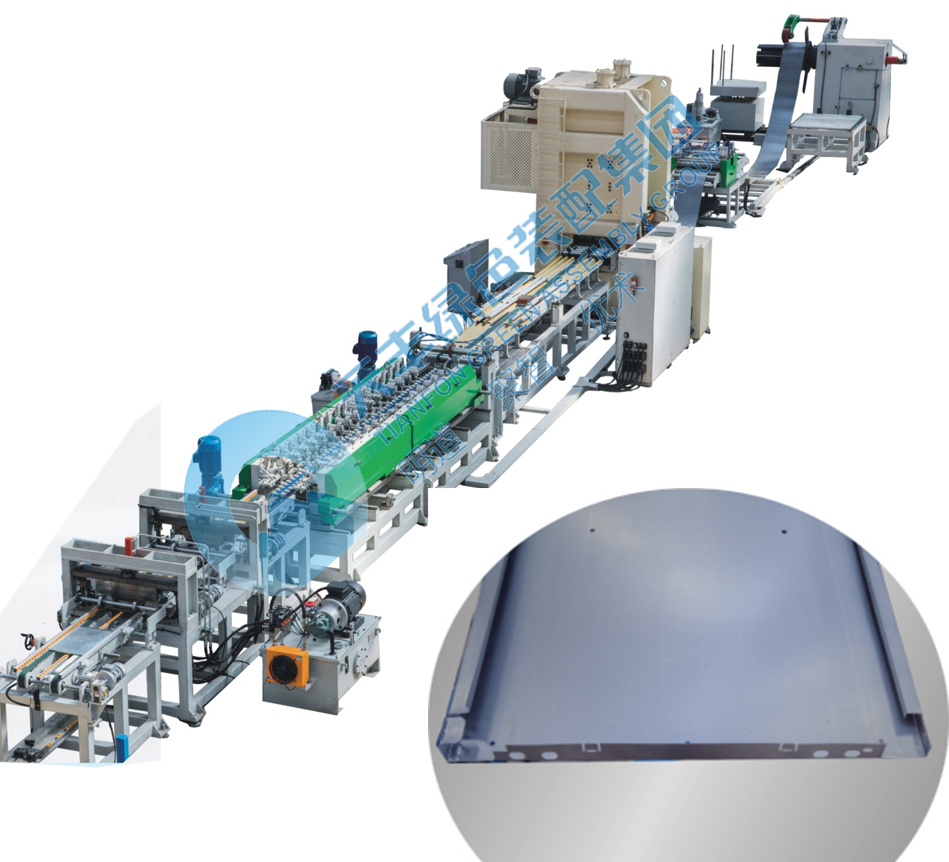

Equipment overview:: TFM9-16 Door panel automatic production line is made in May ,2012,it can produce more than fifty size of door panel through adjustment , Simple operation ,one worker can finish it ,PLC control all line de-coiler ,leveling and feeding, punching hole, notch

Components

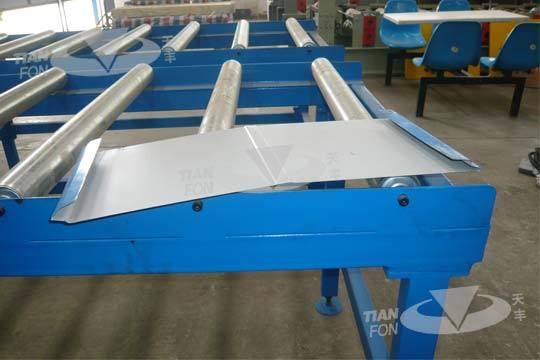

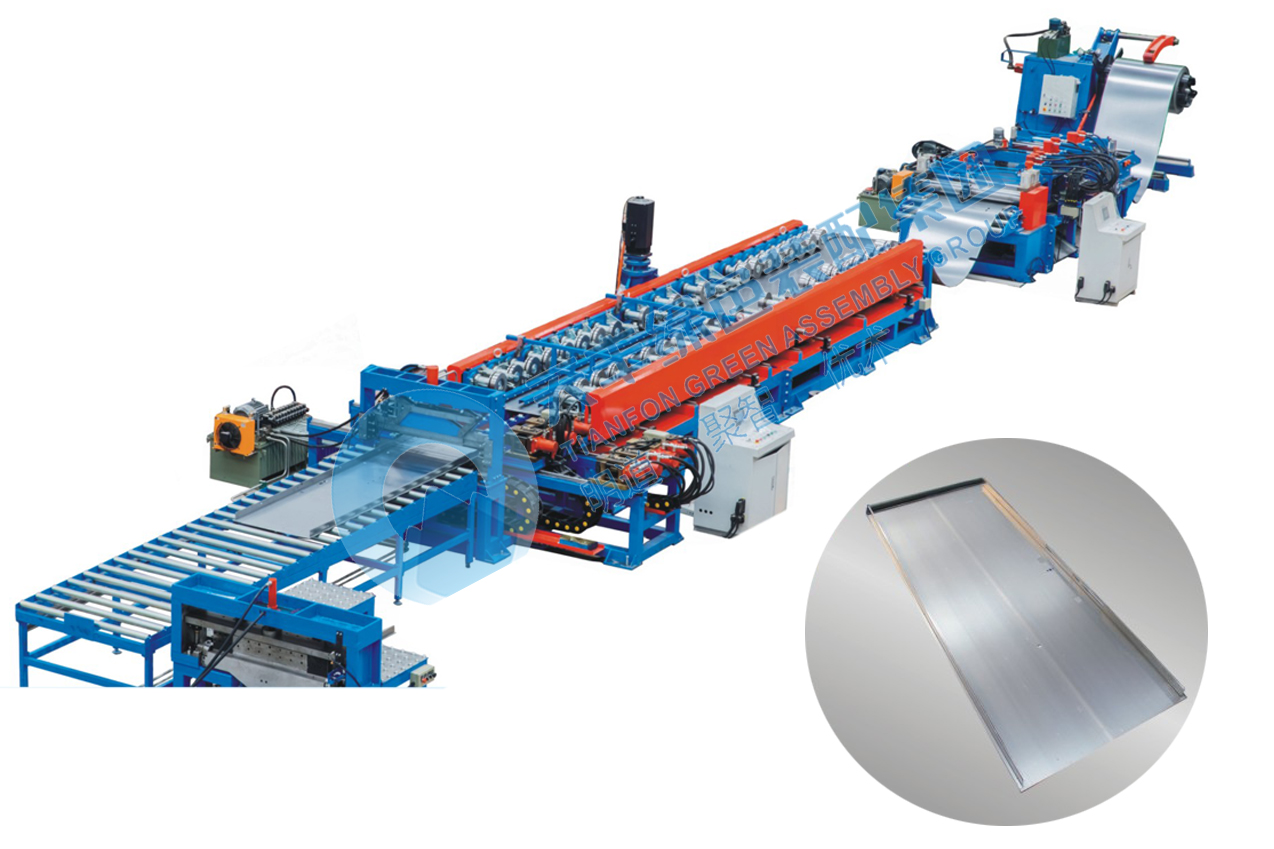

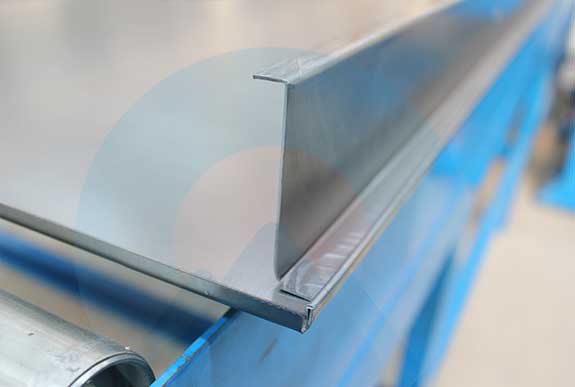

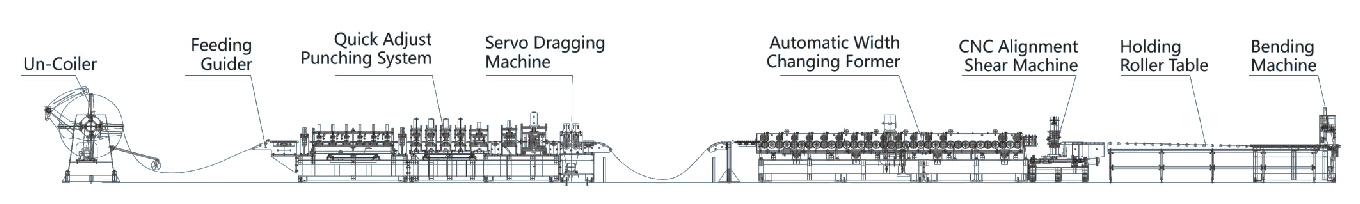

Uncoil—leveing feeding device—gap\emboss\bayonet punching unit—roll forming machine—cut&flanger device flip racker
door panel roll forming line

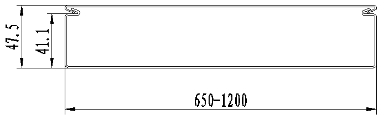

Specification

Equipment overview:: 27/TFM9-16 Door panel automatic production line
1.TFM9-16 Door panel automatic production line is made in May ,2012,it can produce more than fifty size of door panel through adjustment , Simple operation ,one worker can finish it ,PLC control all line de-coiler ,leveling and feeding, punching hole, notching, embossing ,cutting and flange ,auto run out sheet , can set several data production orders one time ,automatic produce and remote control.

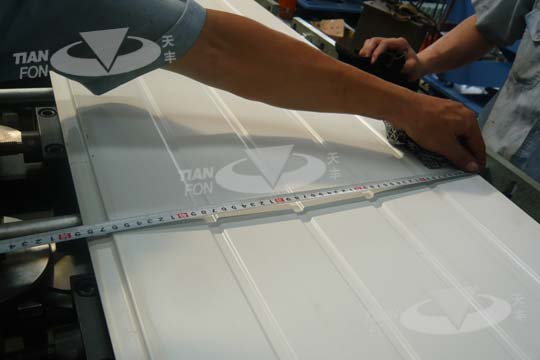

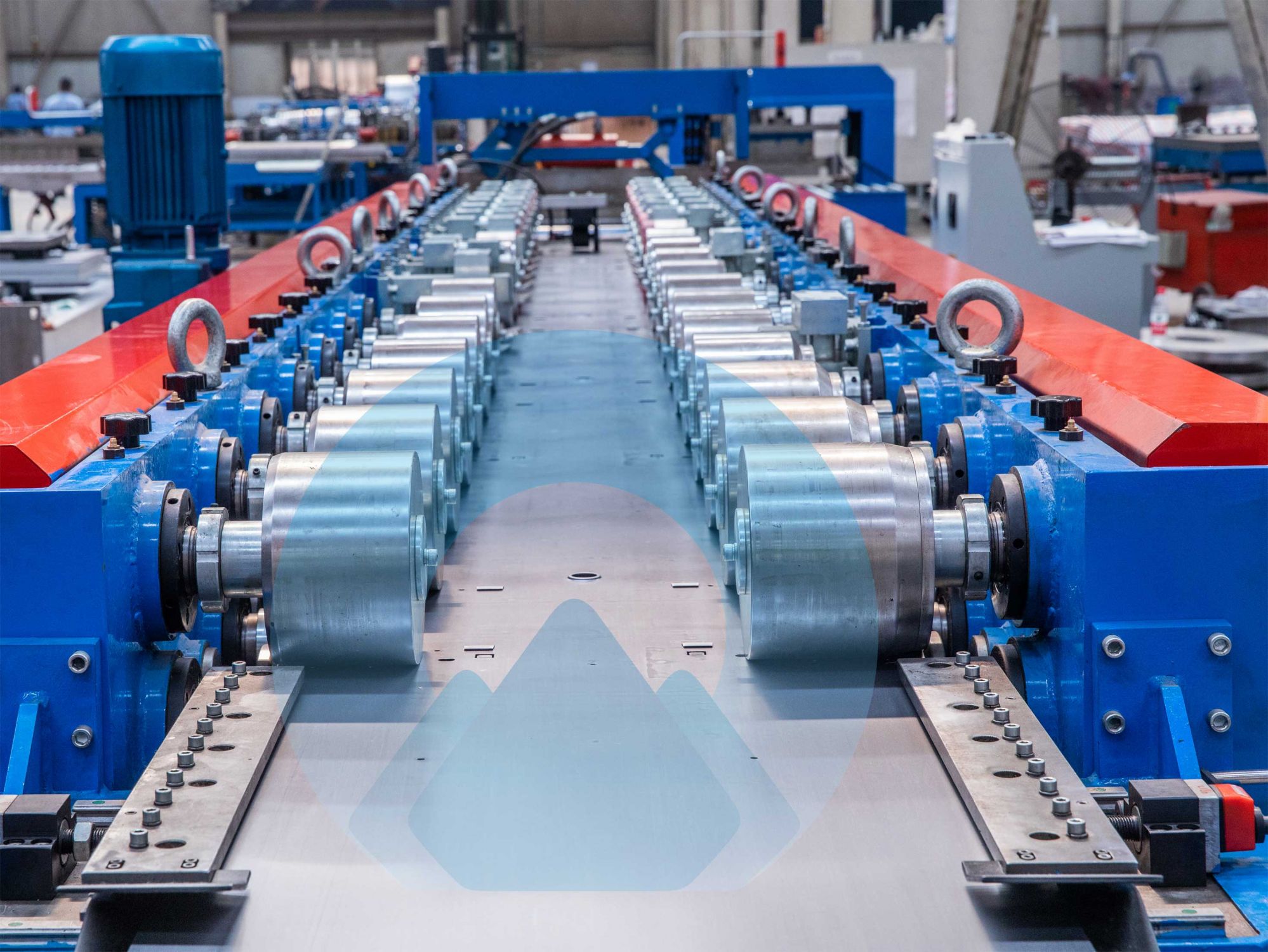

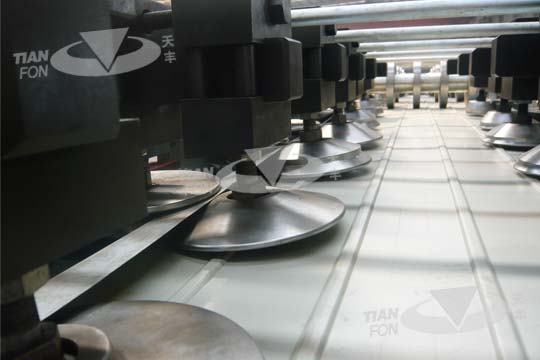

3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

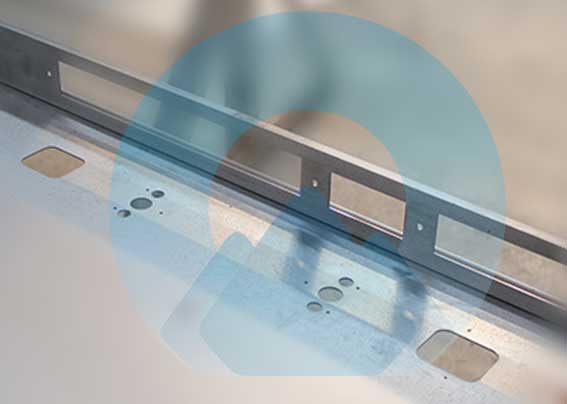

TF Door Panel Roll Forming Line
TFM9-16 Door panel automatic production line

Technical parameters:

Serial number	Item		Unit	Parameters	Remark
1	Suitable material	Type		Galvanized coil
		strength	MPa	≤235MPa
		Thickness	mm	1.5-2.0
		Coil internal diameter	mm
		Coil weight	T	3
2	Specification		mm	Max1350mm
3	Line speed		m/min	0-15
4	Roller material			45#, chroming and quenching on the surface of roller.
5	Roller driven type
6	Operating system
7	Total motor power		Kw
8	Electric control system			PLC automatic control system
9	Dimension(LWH)		Mm
