  • Decking Roll Forming Line

Pedal plate Punching automatic production line

Equipment overview:

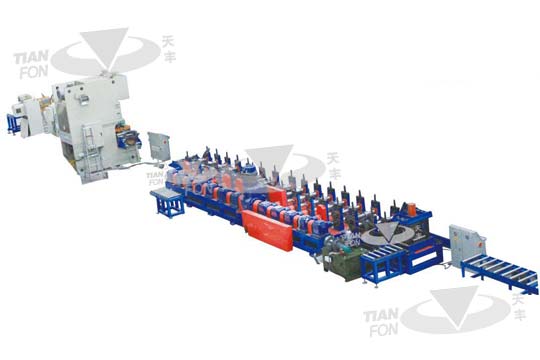

Pedal plate Punching automatic production line is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check.
  • Product description
  • Product Details
  • Product Videos

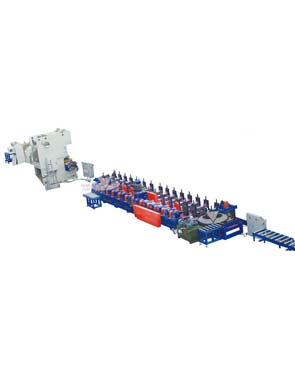

Components

de-coiler—leveling--servo-feeding—punching—embossing--bending flange---forming----cutting automatic function.

Specification

Equipment overview:

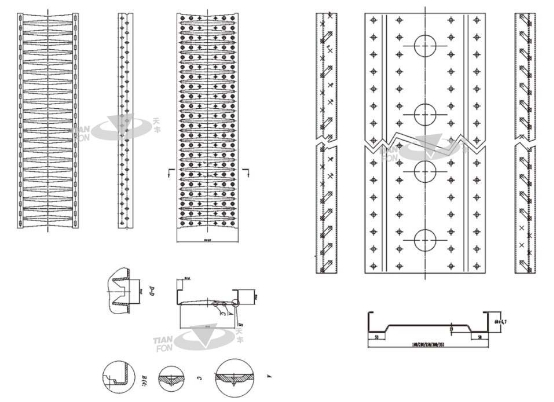

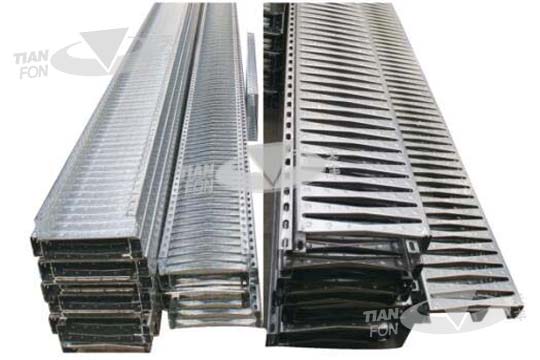

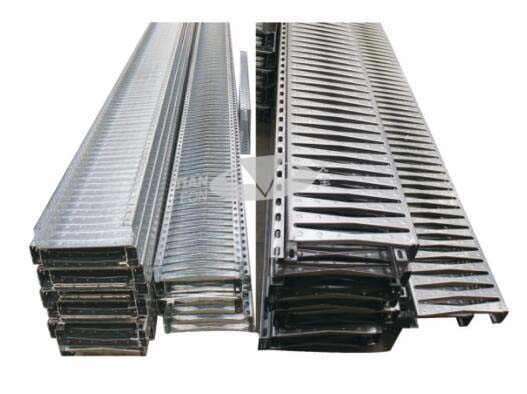

Pedal plate Punching automatic production line can produce C shape purling and M shape purling, the height of flange reach 17.5mm,thickness from 1.5mm-3.0mm, both solve the small power problems of C profiles bottom drive, and forming process problems of deformation when pre-punching ,also realized the comprehensive function of punching ,forming and cutting perfectly. 3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type   Q320
strength MPa 320
Thickness mm 1.5--3.0
Coil internal diameter mm 610
Coil weight T 5
2 Specification mm About 382-686
3 Line speed m/min 0-12
4 Roller material   GCr15,
5 Roller driven type   三相交流电源400V(±10%),50HZ
6 Operating system
7 Total motor power Kw 62
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) mm 约32000*4000
