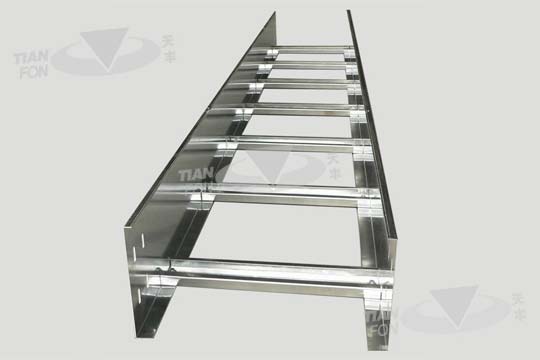

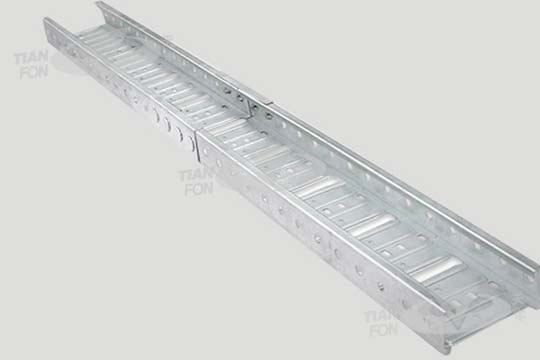

  • Cable Ladder
  • Cable Ladder
  • Cable Ladder

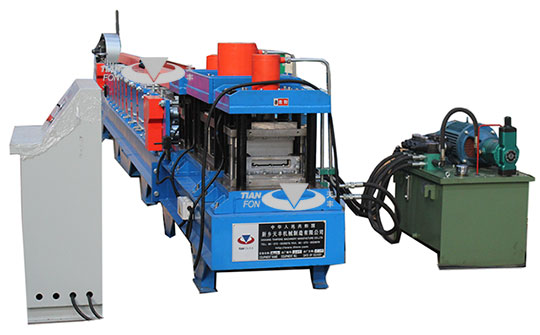

Cable Ladder Roll Forming Line

Equipment overview:
Cable ladder roll forming line,Roll forming,roll forming machine
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

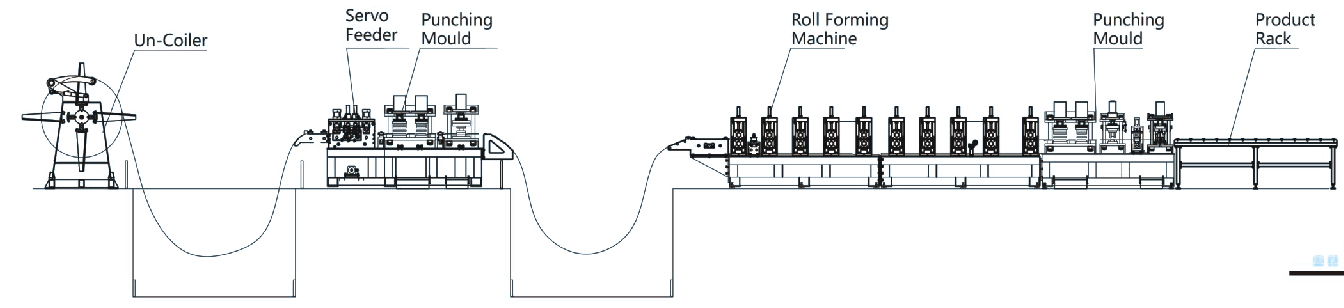

Uncoiling- -roll forming --punching--cutting –discharging

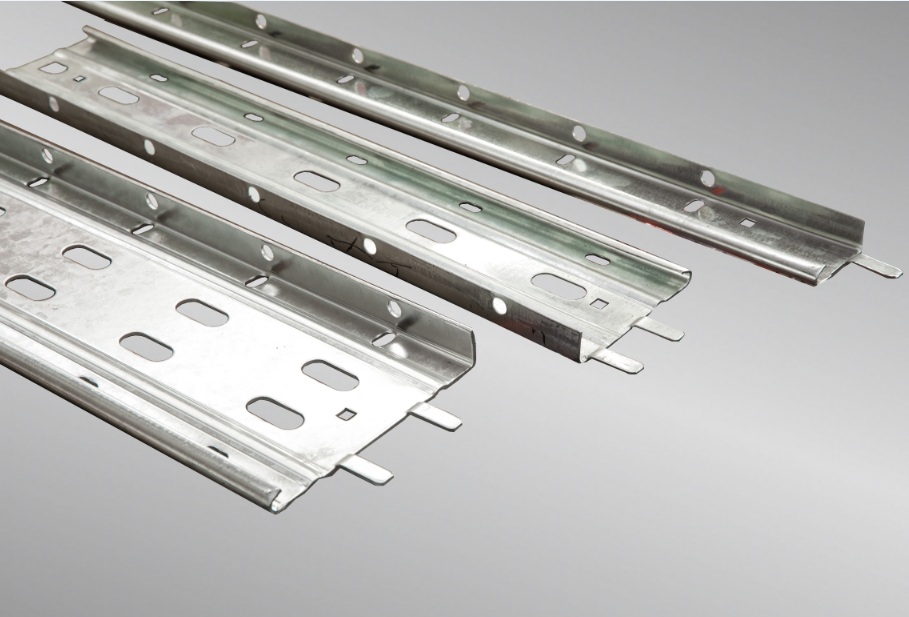

cable-ladder-roll-former

Specification

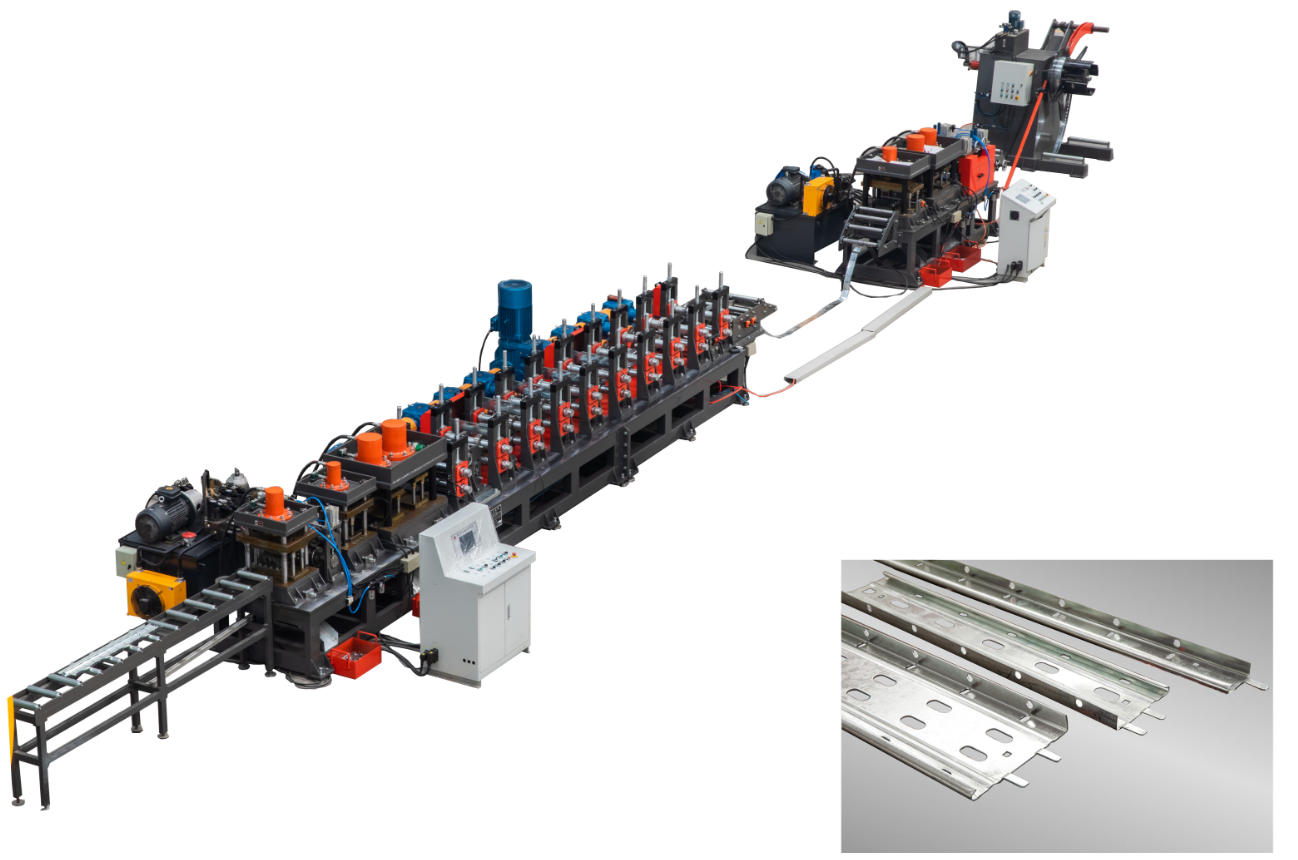

The production line includes uncoiler,leveler device feeding guide,main machine,roll forming cutter,hydraulic system and electric control system,Line speed:10m/min.

Technical parameters:

cable-ladder-roll-former

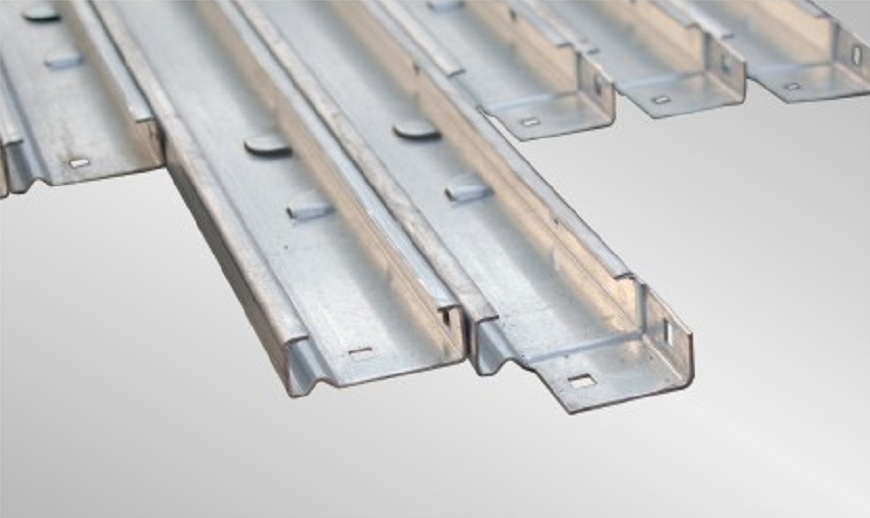

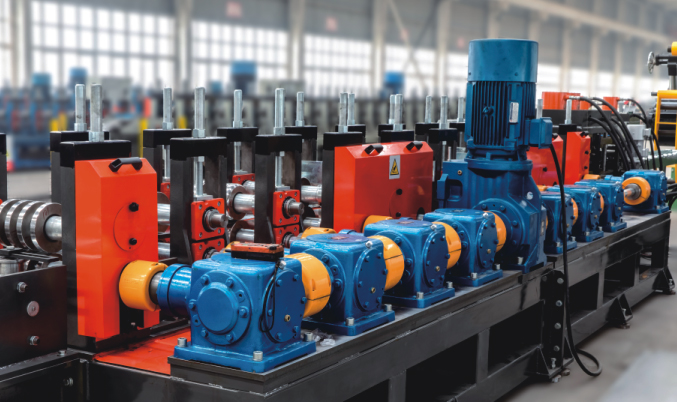

Cable Ladder roll forming machine
cable-ladder-roll-former

Serial number Item Unit Parameters Remark

1
Suitable material		 Type   Q235, galvanized sheet
strength MPa ≤235
Thickness mm 1.5mm~2.0mm
Coil internal diameter mm 500
Coil weight T 2

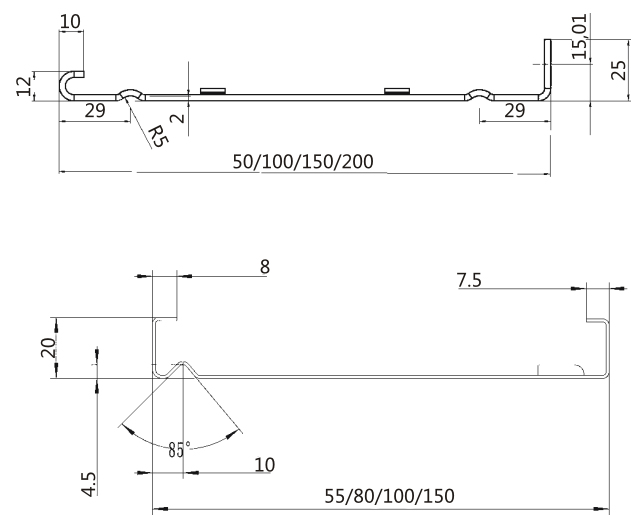

2 Specification mm Φ380～Φ530mm
3 Line speed m/min 10
4 Roller material   GCr15
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About 11
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m
cable-ladder-roll-former

  cable-ladder-roll-former

Components

cable-ladder-roll-former
