Cable Tray Roll Forming Line

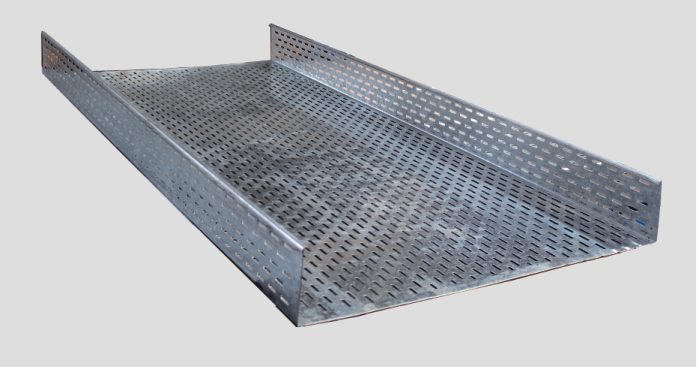

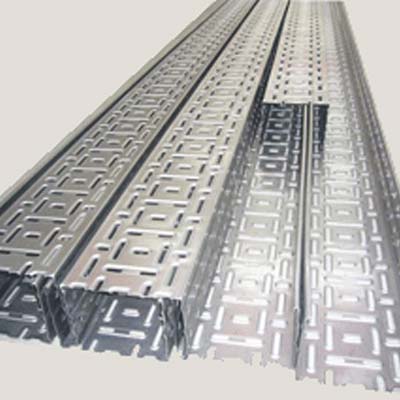

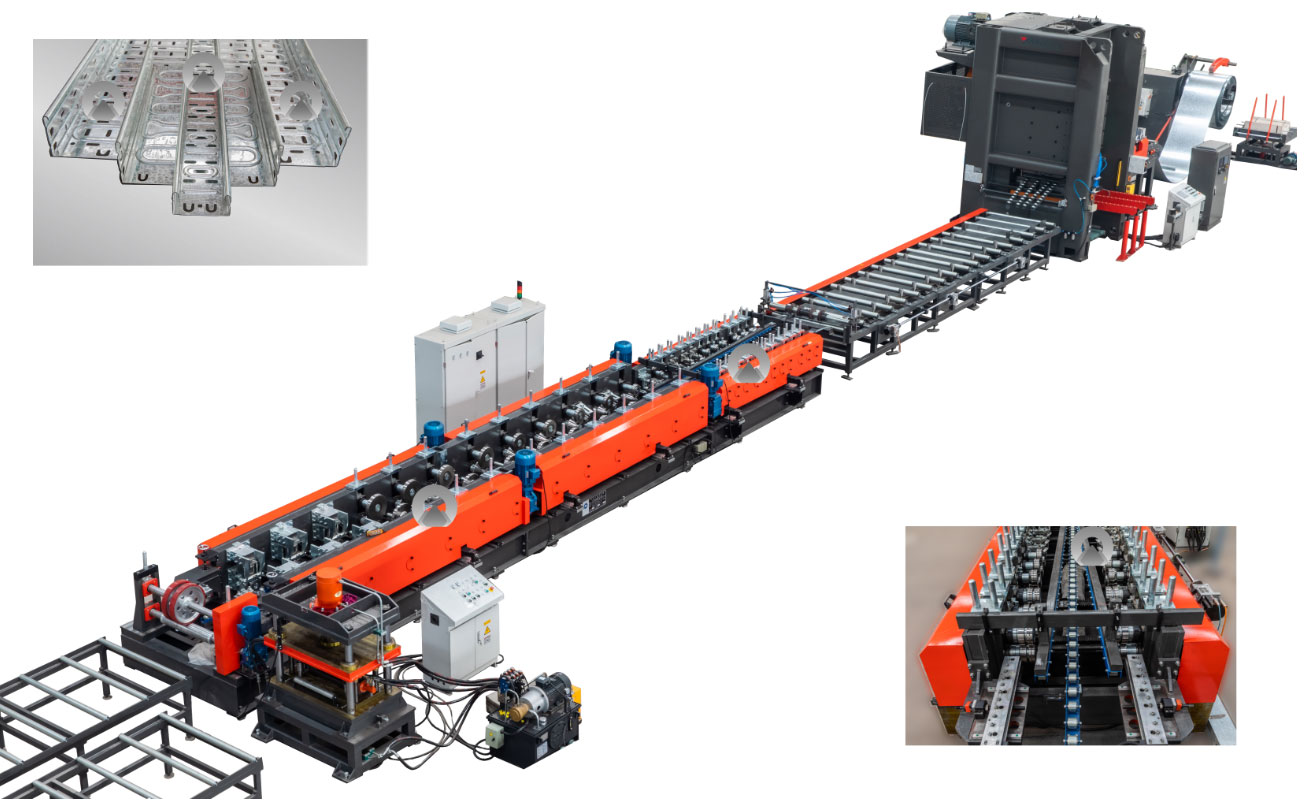

Equipment overview:: Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.

Send E-mail get price

Product description
Product Details
Product Videos

Components

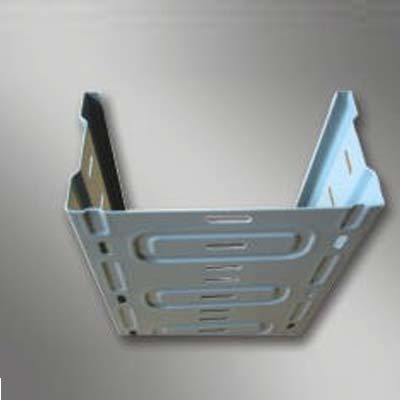

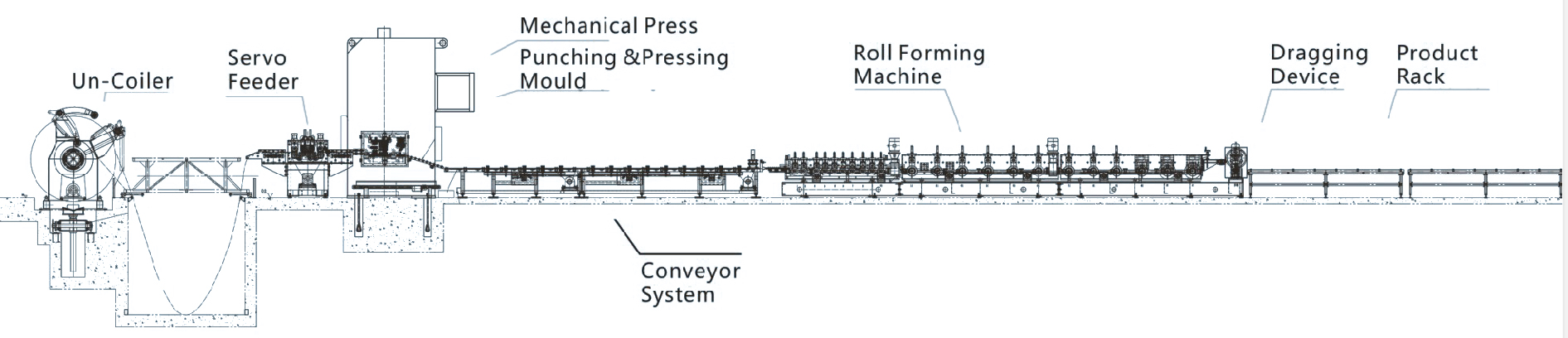

Uncoiling –leveling- Looping—Feeding—punching —Roll forming—Cutting –Discharging

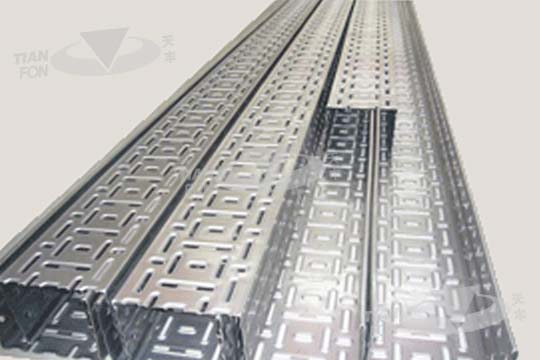

cable-tray-roll-former

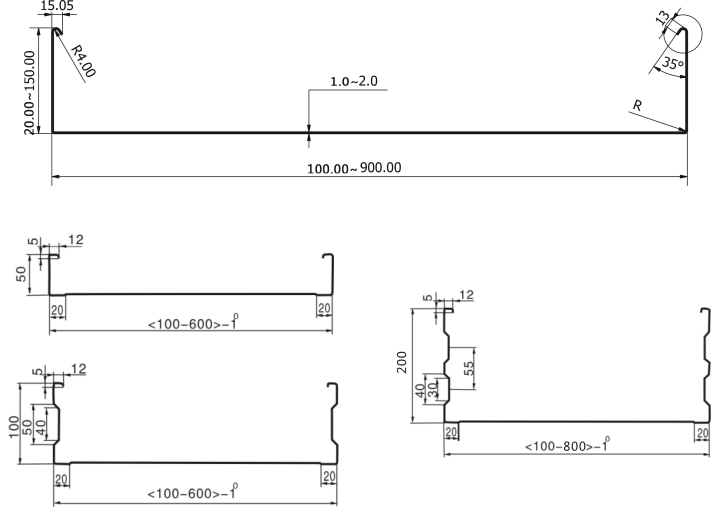

Specification

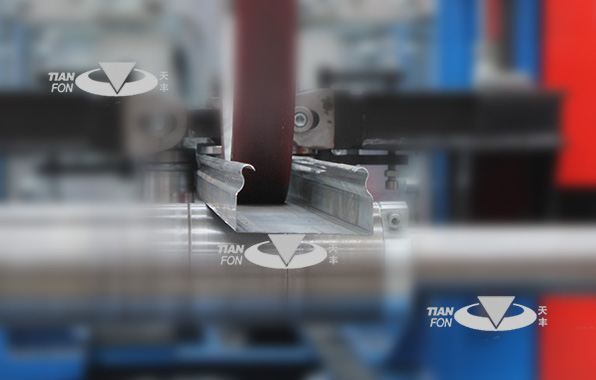

Equipment overview:: 1.Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.

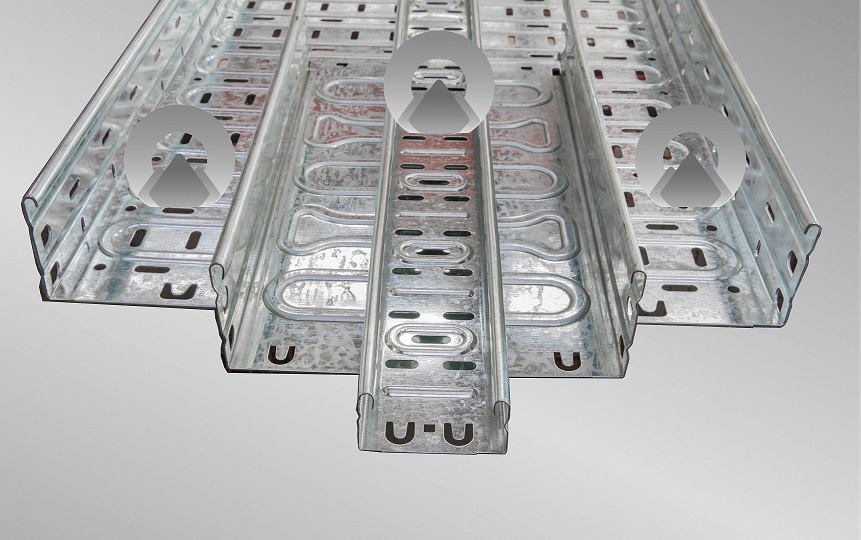

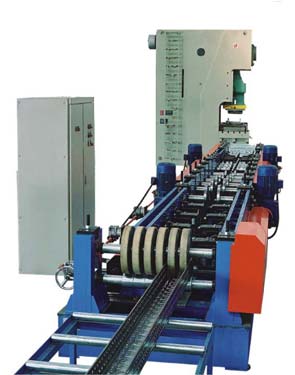

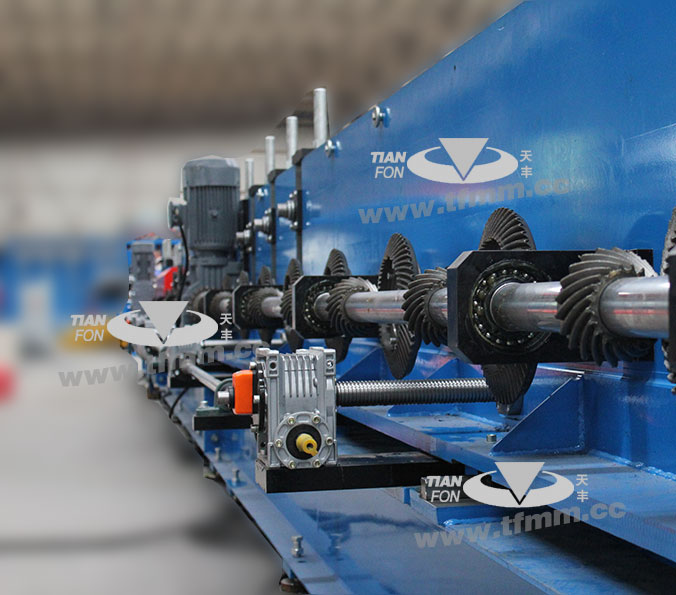

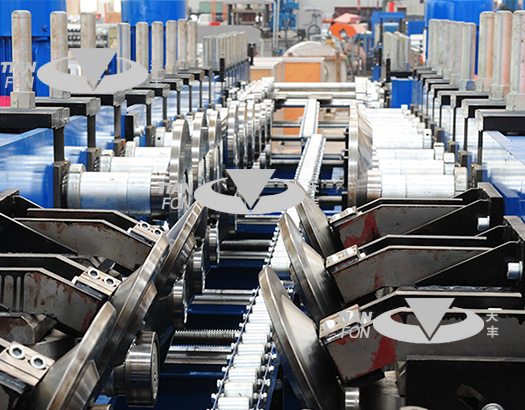

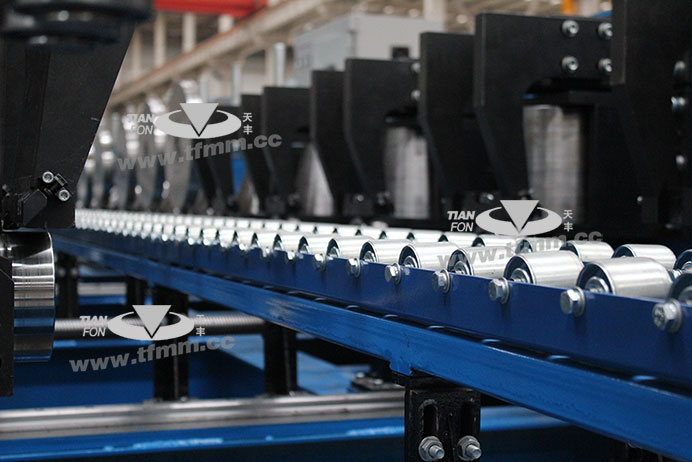

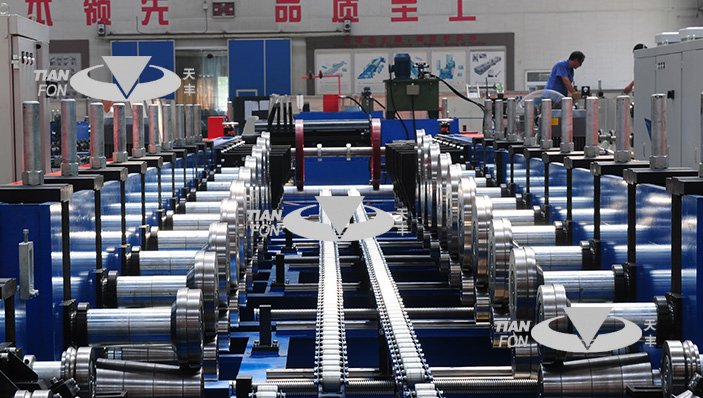

2. Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.
3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

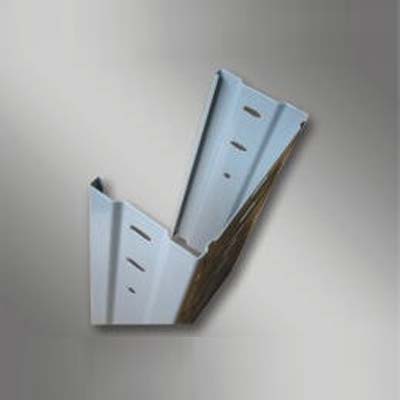

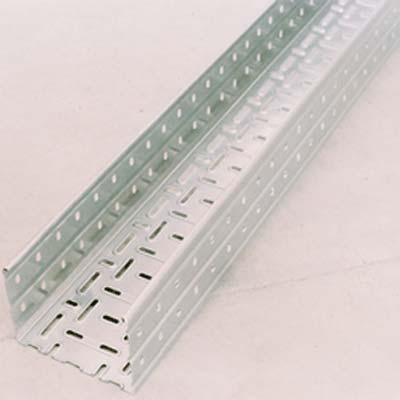

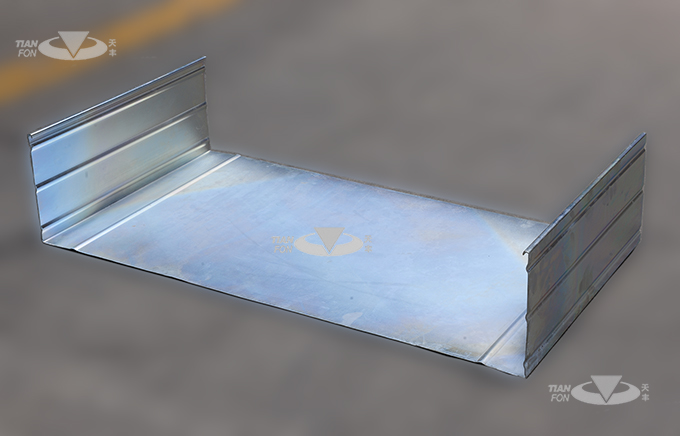

TF cable bridge roll forming machine

Technical parameters:

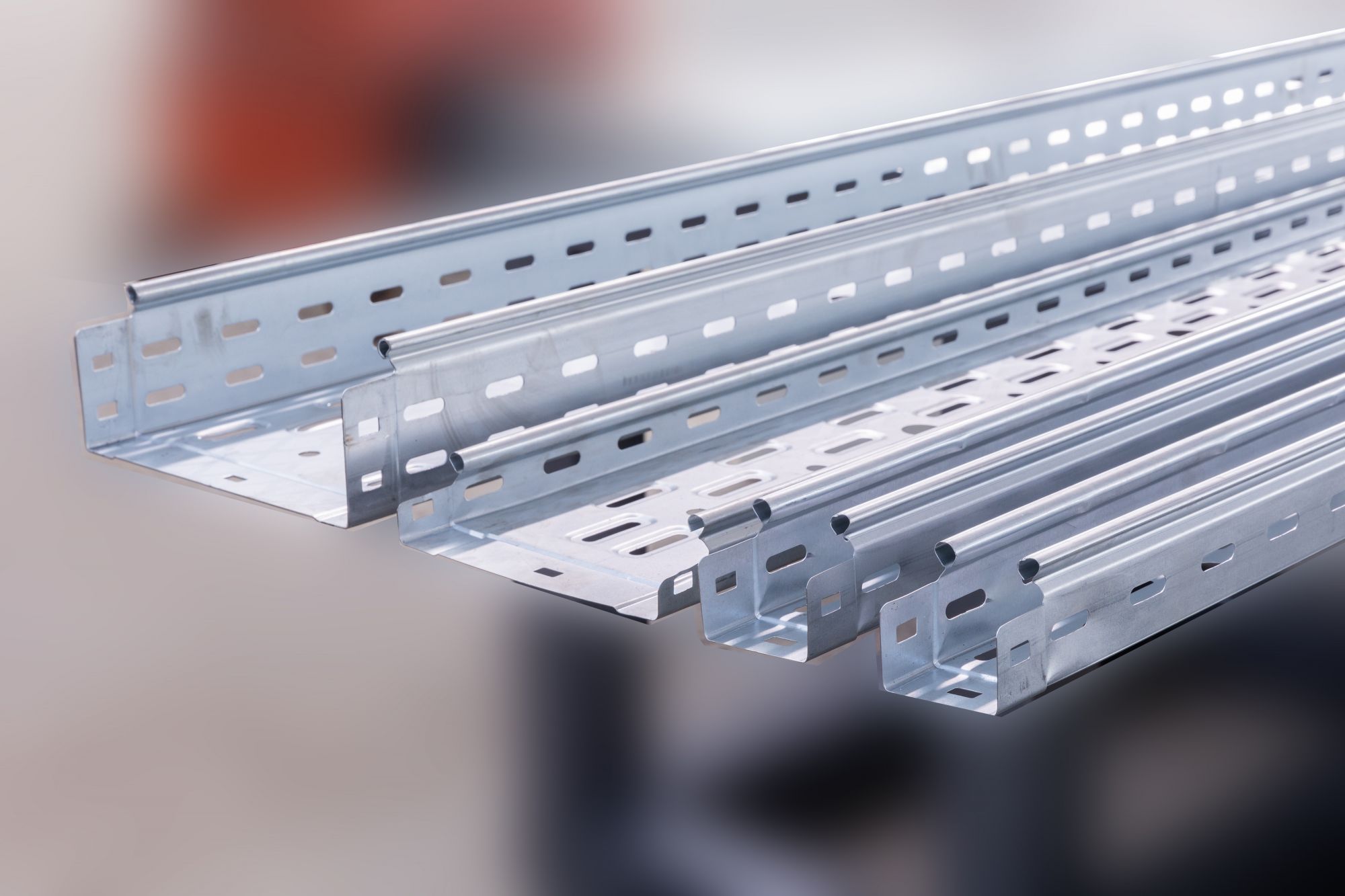

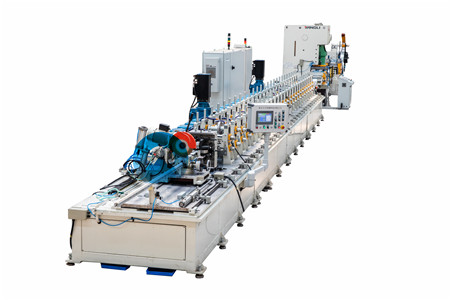

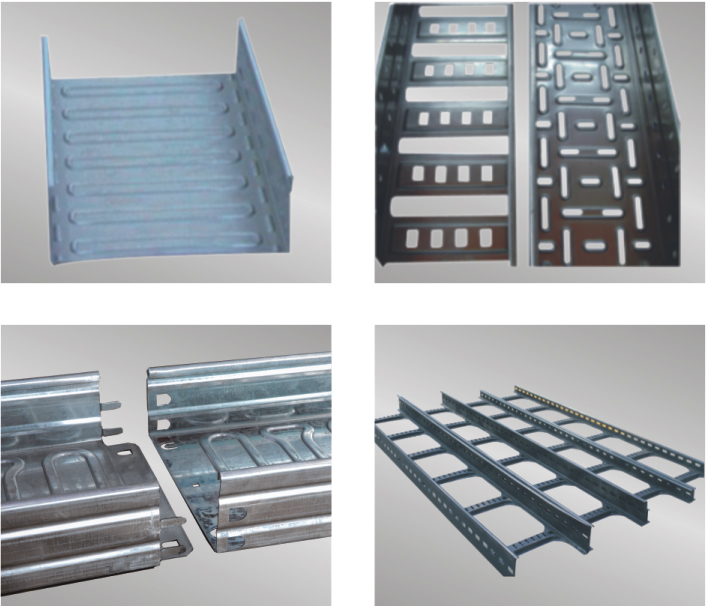

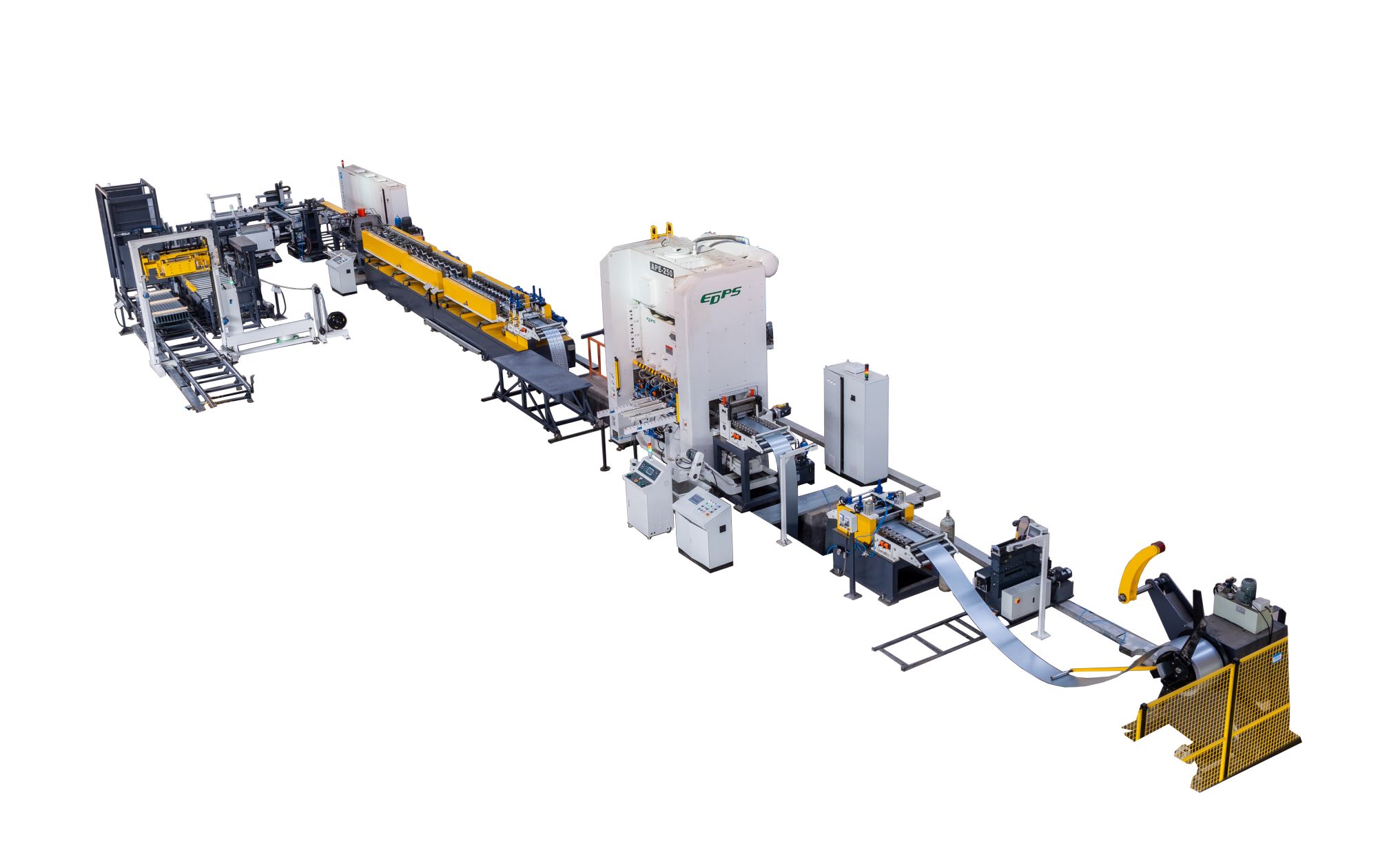

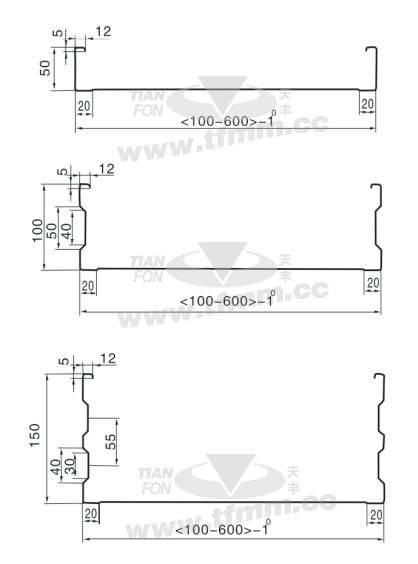

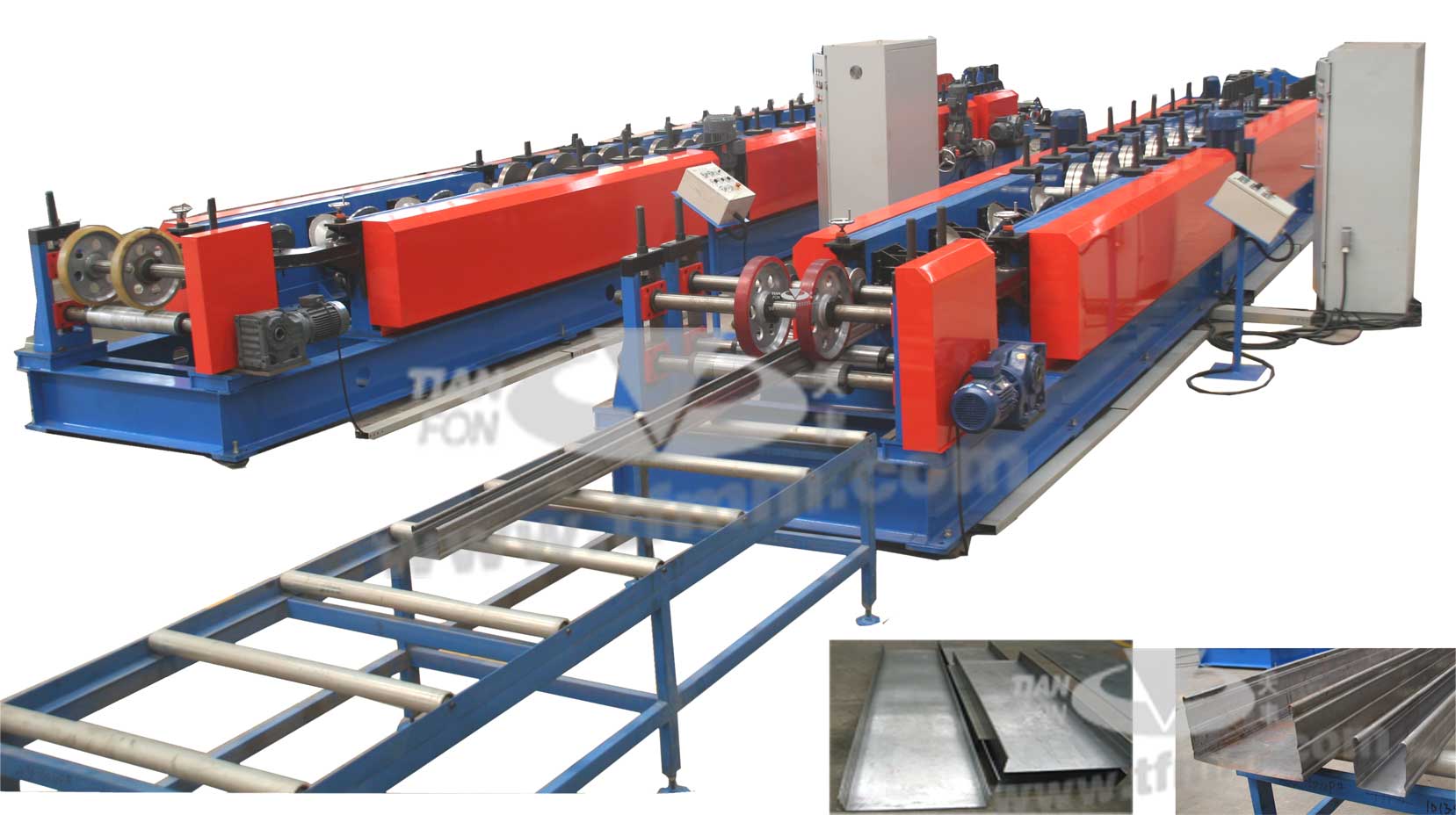

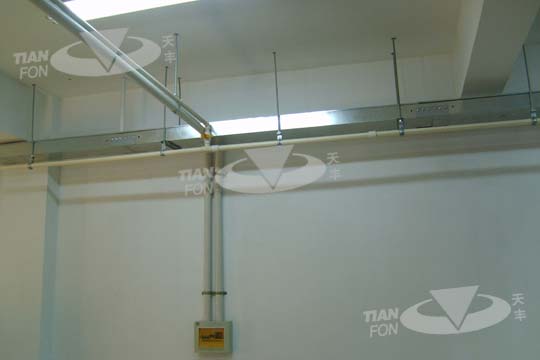

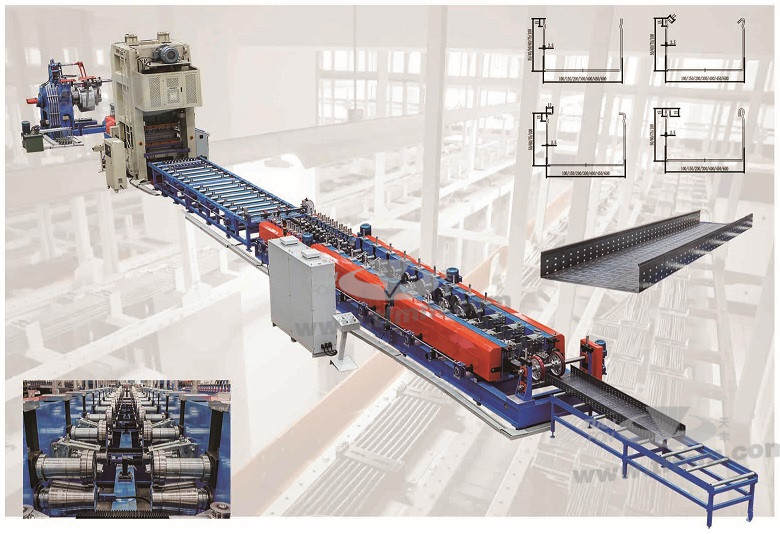

HIGH SPEED ROLL FORMING LINE FOR CABLE TRAY WITH STACKER cable-tray-roll-former

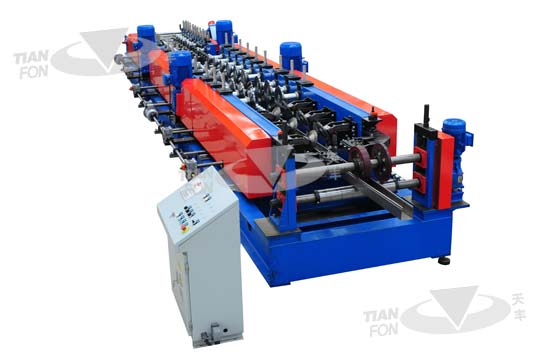

TF Cable-tray-roll-forming machine

Serial number	Item		Unit	Parameters	Remark
1	Suitable material	Type		CR,HR Sheet;Galvanized Sheet
		strength	MPa	≤350
		Thickness	mm	1.6-3.2
		Coil internal diameter	mm	500,600
		Coil weight	T	5
2	Specification		mm	100-320
3	Line speed		m/min	25
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		Kw	About 65
8	Electric control system			PLC automatic control system
9	Dimension(LWH)		m	30X2X1.7

TF cable bridge roll forming machine

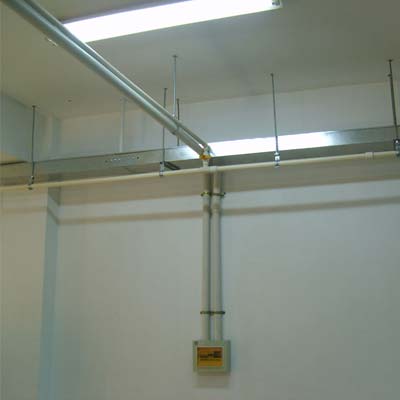

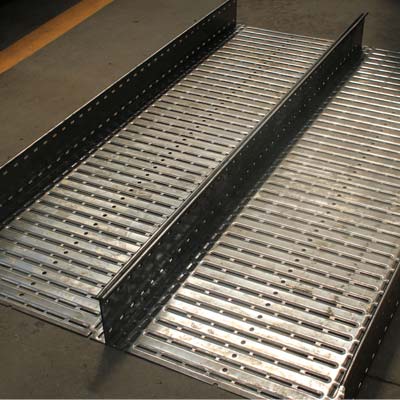

cable tray roll formin machine

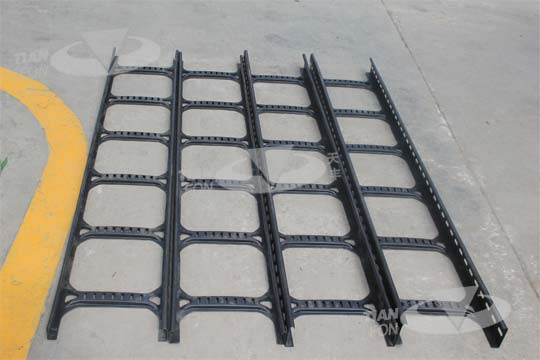

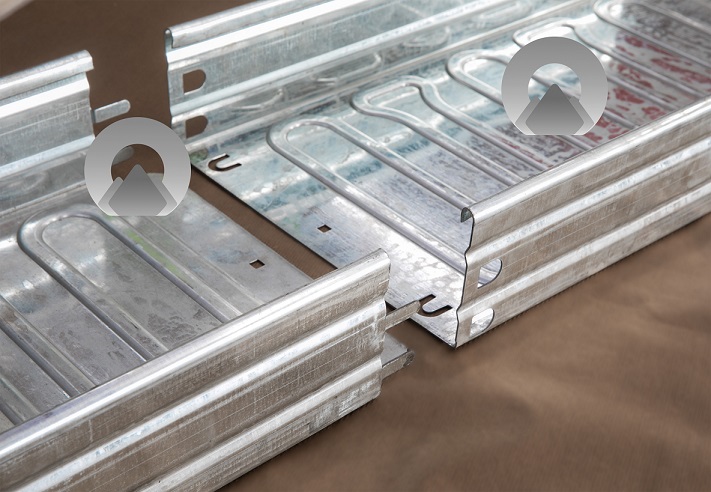

TF CABLE TRAY ROLL FORMER

HIGH SPEED ROLL FORMING LINE FOR CABLE TRAY WITH STACKER
