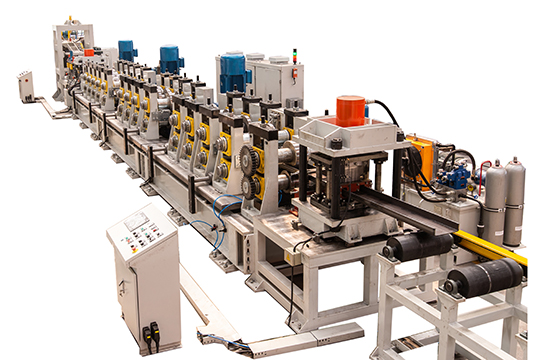

TF automobile beam roll forming line

Equipment overview:
TF automobile beam roll forming line composed by whole line width adjust , in-service welding ,roll forming ,cut , high production efficiency, less waste.
Send E-mailget price
  • Product description
  • Product Details

Components

 TF automobile beam roll forming line composed by whole line width adjust , in-service welding ,roll forming ,cut , high production efficiency, less waste.

Specification

  TF automobile beam roll forming line composed by loading car-uncoiler- shovel head pressure-leveling -cut&welding-guiding-CNC roll forming-cutting –auto production rack, can roll the 4mm,5mm,7mm thickness steel , produce speed reach 10m/min . Roll formed automobile beam with best straightness and cross section size.
TF automobile beam roll forming line
TF automobile beam roll forming line

Technical parameters:

 TF automobile beam roll forming line   TF automobile beam roll forming line

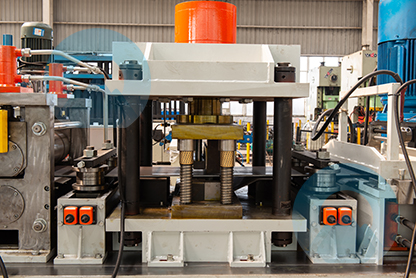

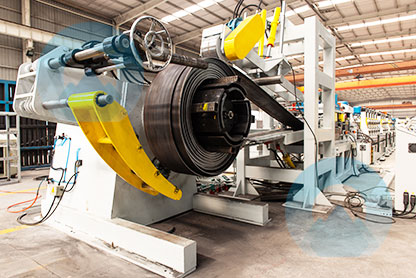

TF automobile beam roll forming line uncoiler  part               TF automobile beam roll forming line leveling, cutting part

TF automobile beam roll forming line TF automobile beam roll forming line

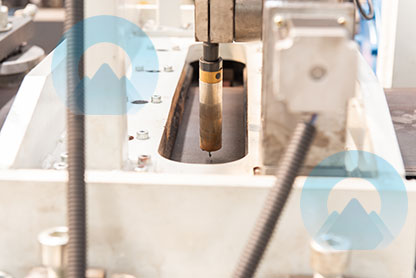

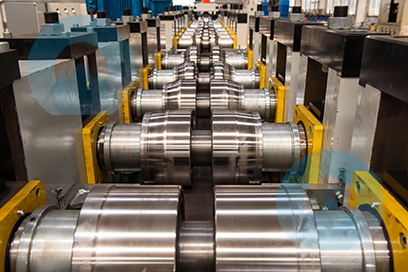

TF automobile beam roll forming line roll forming part       TF automobile beam roll forming line in-service welding part
TF automobile beam roll forming line

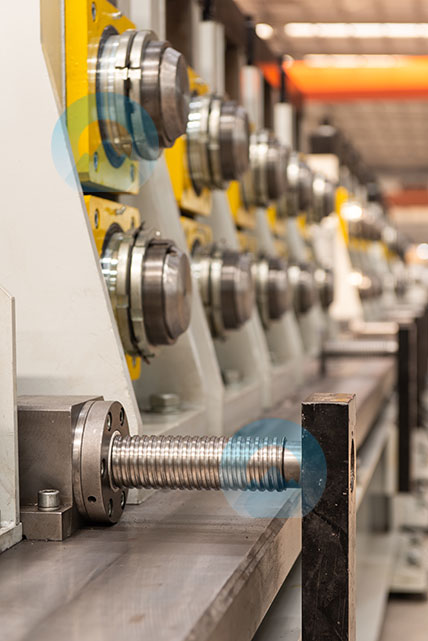

  whole line width adjust part
TF automobile beam roll forming line TF automobile beam roll forming line

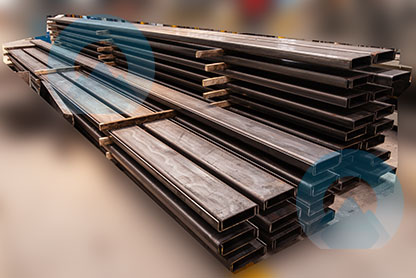

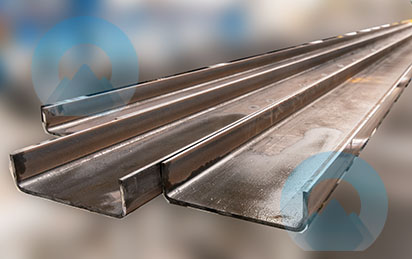

TF automobile beam



 Serial number Item Unit Parameters  Remark

1
Coil parameters		 Type

Hot roller steel

  S700MC
Strength MPa

800


Thickness mm

4--7


Inner diameter of coil mm

508,610


Weight T

10


2 Width mm

100~320


3 Line speed m/min

10


4 Material of roller

Gr25


5 Drive of roller

grearbox transmission


6 Operate system

Windows2000


7 Total power Kw

300


8 PLC system

PLC auto control system


9 Size
(L*W*H)		 m





Components
