  • Baseplate Roll Forming Line

Baseplate Roll Forming Line

Equipment overview:
TF carriage top panel production line,. Dozens of top panel specification in 890mm-1900mm different width and 4mm-6mm different small edge width can be produced through switching, profiles can be changed conveniently.
Send E-mailget price
  • Product description
  • Product Details

Components

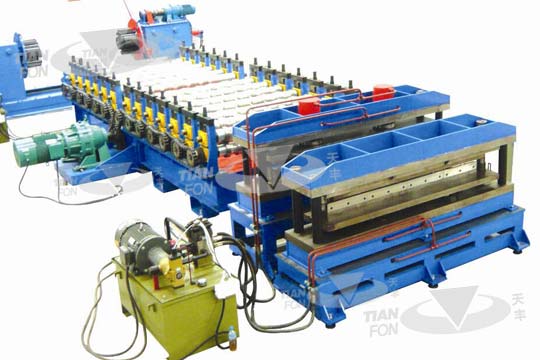

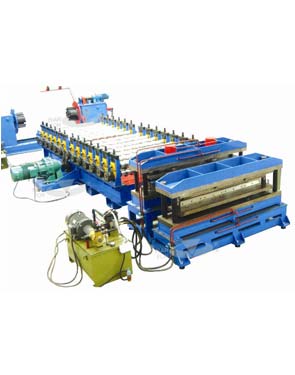

loading car---un-coiler---feeding guider--roll forming machine---end presser---cutter---final products supporting rack---hydraulic and electric control system

Specification

Equipment overview:

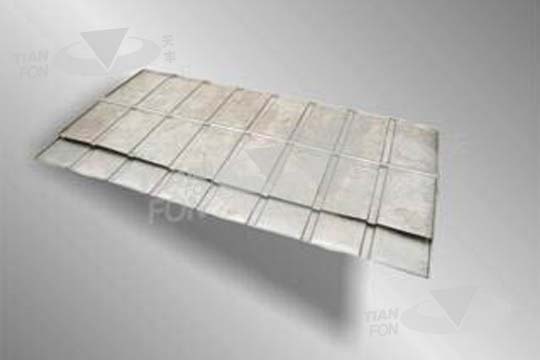

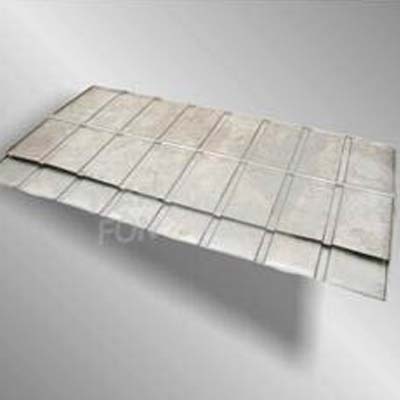

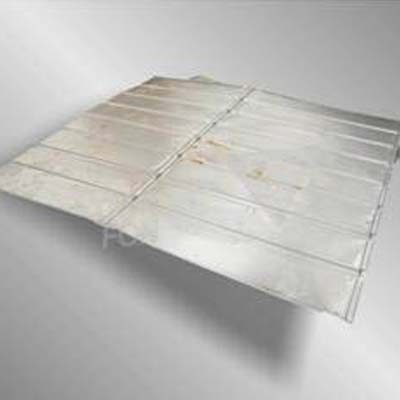

TF carriage top panel production line,. Dozens of top panel specification in 890mm-1900mm different width and 4mm-6mm different small edge width can be produced through switching, profiles can be changed conveniently, one person can operate the whole line, and many sets of final products length number can be set in one time.

Technical parameters:

Serial number Item Unit Parameters Remark

1

Suitable material
Type   DC-01（ a MPa 140～240MPa 270
Thickness MPa ＞270
Coil internal diameter mm 0.7-1.5
Coil weight mm 508
Thickness T ≤20
2 Specification mm 1650±20
3 Line speed m/min 0-10
4 Roller material
5 Roller driven type
6 Operating system
7 Total motor power Kw
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) Mm

Components
