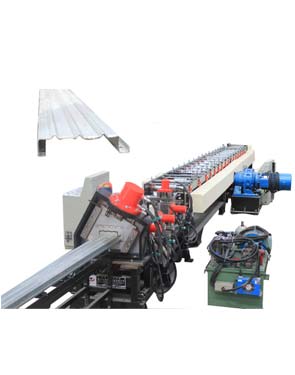

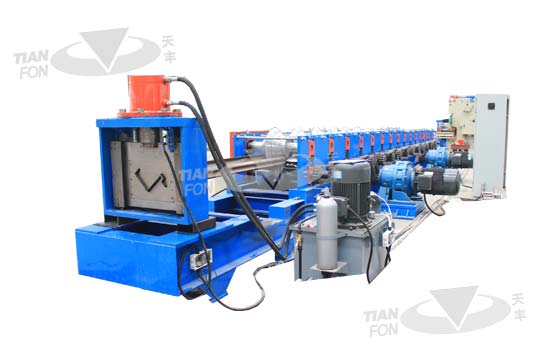

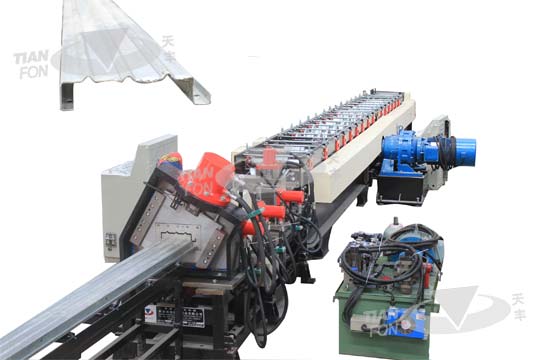

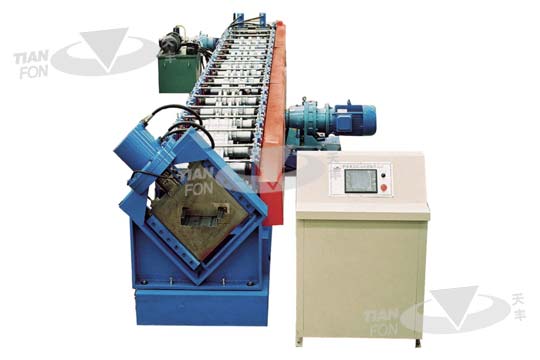

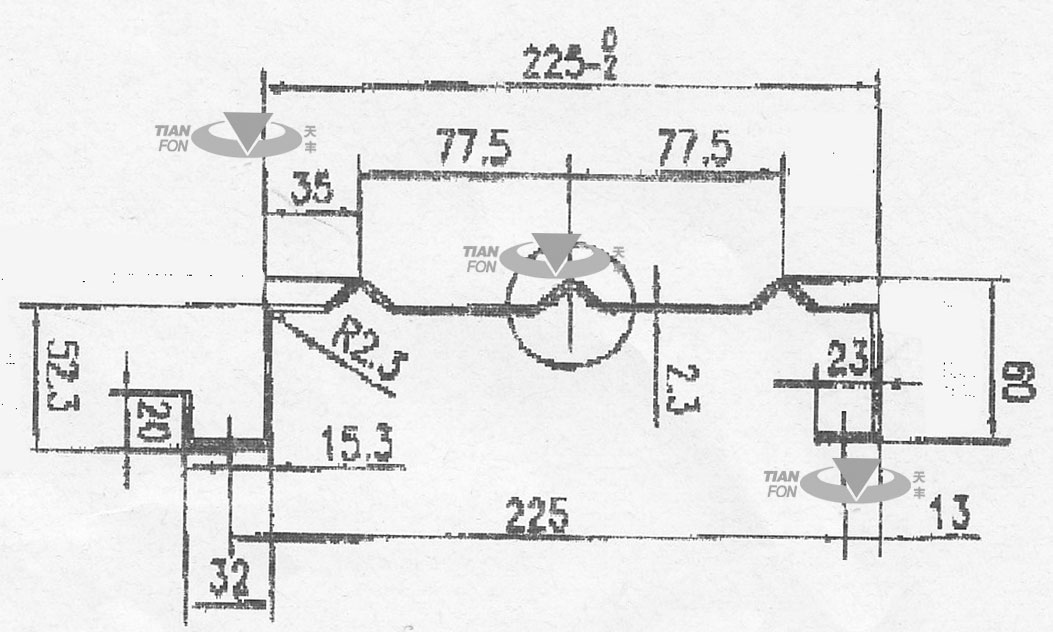

Parking Garage Profile Roll Forming Line

Equipment overview:
TF system stereo bottom board rim and bottom board production line, with high efficiency, formed with good consistency, precision profile, high capacity, convenient installation, effectual lapping joint.
Send E-mailget price
  • Product description
  • Product Details

Components

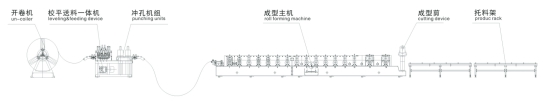

Uncoiling –leveling- Looping—Feeding—punching —Roll forming—Cutting –Discharging

Specification

Equipment overview:
TF system stereo bottom board rim and bottom board production line, with high efficiency, formed with good consistency, precision profile, high capacity, convenient installation, effectual lapping joint. Application range: stereo bottom board rim and bottom board forming Machineperformance: full CNC automatic punching, roll forming, cutting and technical PLC controlling.

Technical parameters:

Serial number Item Unit Parameters Remark

1
Suitable material 		Type   galvanized steel
strength MPa
Thickness mm 2.0-2.3
Coil internal diameter mm 508
Coil weight T 10
2 Specification mm 1650±20
3 Line speed m/min 0-10
4 Roller material
5 Roller driven type
6 Operating system
7 Total motor power Kw 35
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) mm 1800*200

Components



Parking Garage Profile Roll Forming Line
