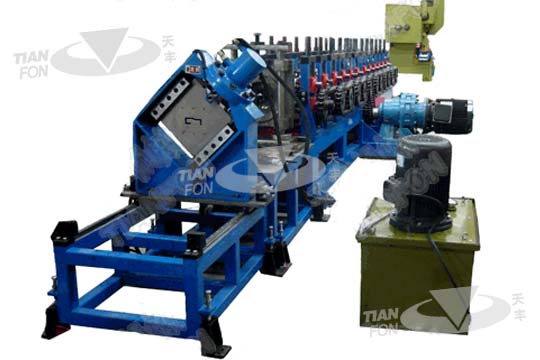

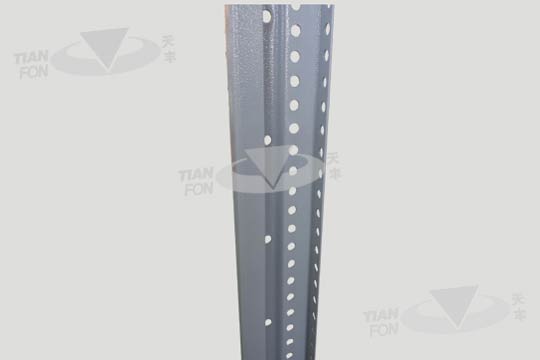

Electric Cabinet Pillar Roll Forming Machine

Equipment overview:

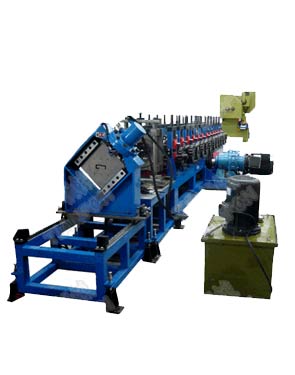

Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds.
Send E-mailget price
  • Product description
  • Product Details

Components

Manual Decoiler- Guiding Device-- Roll Forming M/C-- Saw Cutting-- PLC Control System-- Run-out Table--- Safety Barrier

Specification

Equipment overview:

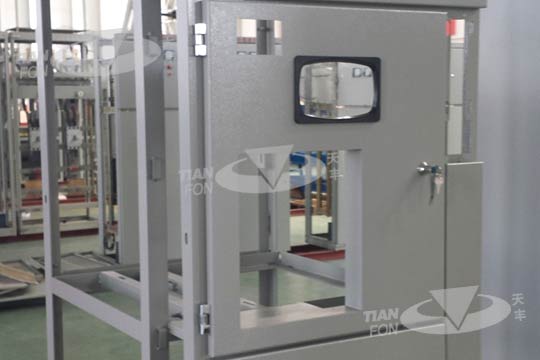

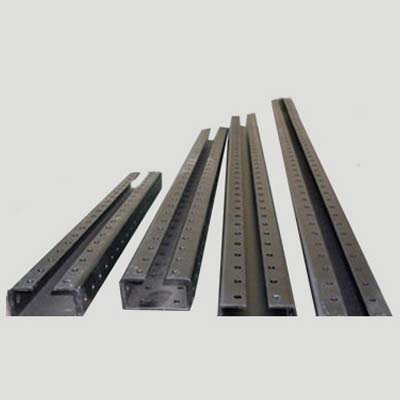

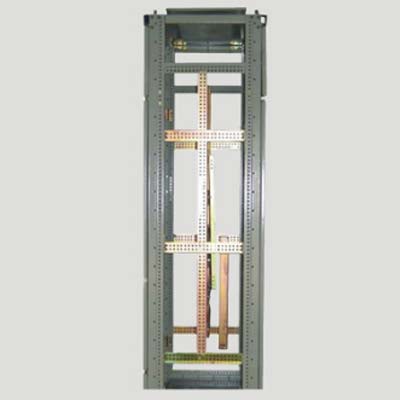

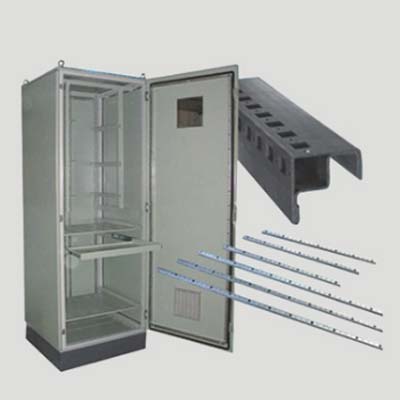

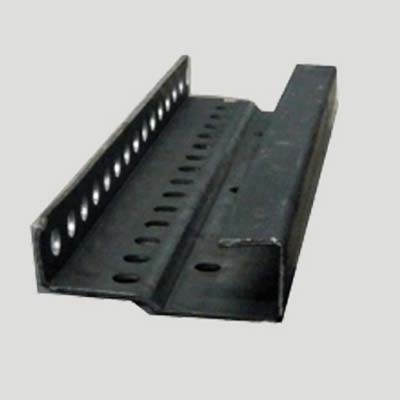

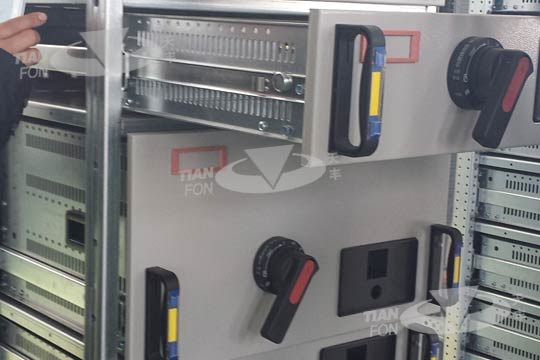

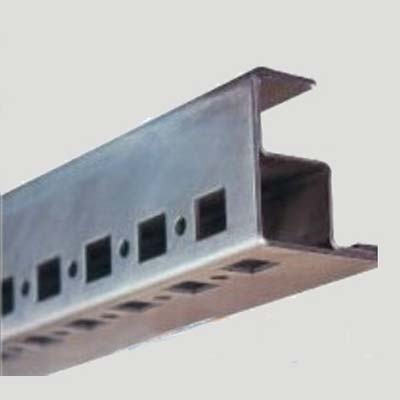

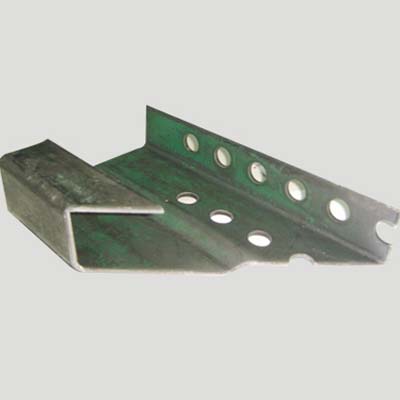

The roll forming profile products which processed by electrical cabinet roll forming line of our company, widely used in the following fields, such as electrical cabinet and control cabinet column of electrical machinery industry and metallurgy machinery industry, the electrical cabinet sections of paper machinery industry and machine tools industry, AC&DC control cabinet and electrical cabinet sections of spinning and chemical fiber machinery industry, mining and building machinery industry, also high or medium-voltage electrical transmission control cabinet sections of telecommunications industry.

Technical parameters:

Serial number Item Unit Parameters Remark

1
Suitable material		 Type cold rolled steel coils(Q235)
strength MPa ≤350
Thickness mm 3.0
Coil internal diameter mm 80
Coil weight T 3
2 Specification mm 53--66
3 Line speed m/min 25
4 Roller material D2 quenching treatment
5 Roller driven type External chain transmission
6 Operating system Windows2000
7 Total motor power Kw 380V/50HZ
8 Electric control system PLC automatic control system
9 Dimension(L*W*H) m

Components
