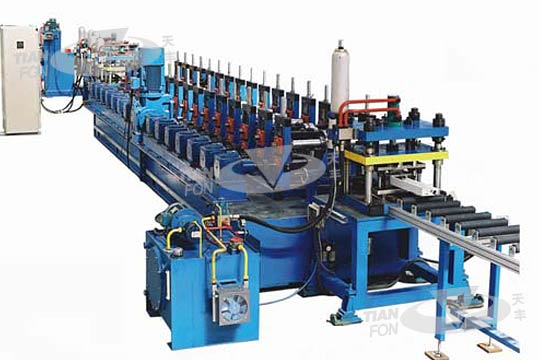

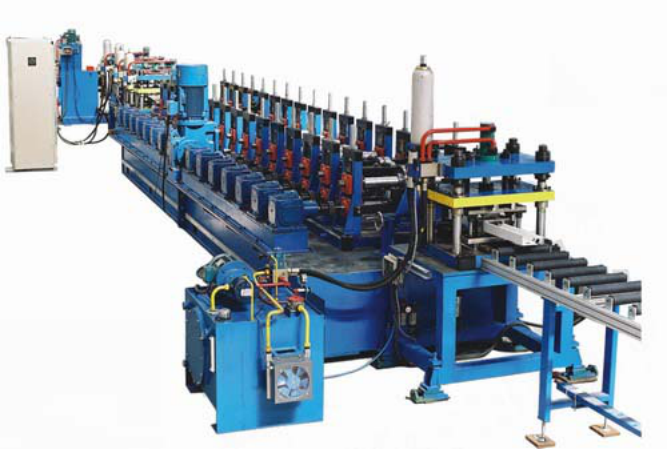

Lampshade Roll Forming Line

Equipment overview:
Lampshade Roll Forming Line,Roll forming,roll forming machine
Send E-mailget price
  • Product description
  • Product Details

Components

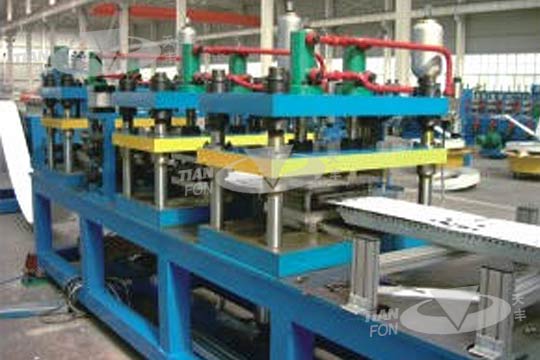

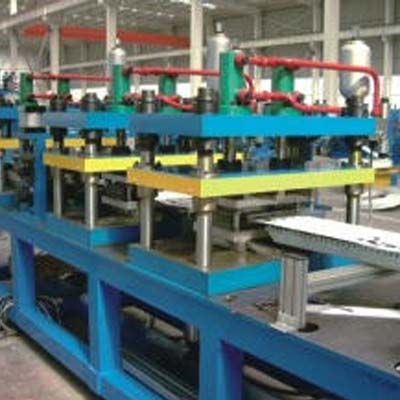

loading car, uncoiler, feeding guice, punch, cutting, main machine, roll forming cutter, automatic stacker, hydraulic system and electric control system.
line

Specification



Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type   colour-coated steel plates
strength MPa ≤235
Thickness mm 3
Coil internal diameter mm 350
Coil weight T 3
2 Specification mm 80
3 Line speed m/min 16

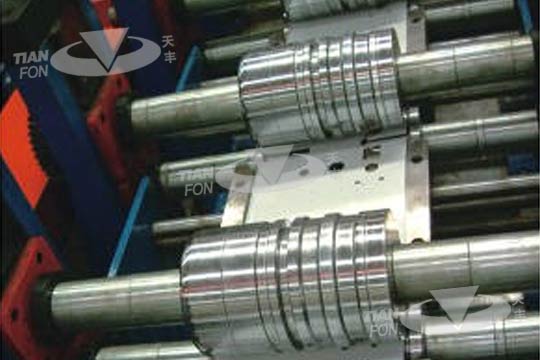

4 Roller material   GCr12
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 5.5
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m 15670*1644*1481

Components
