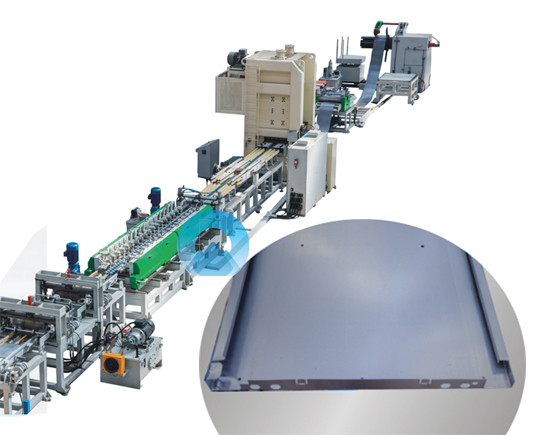

Shelf Baseplate Roll Forming Line

Equipment overview:
The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the
  • Product description
  • Product Details
  • Product Videos

Components

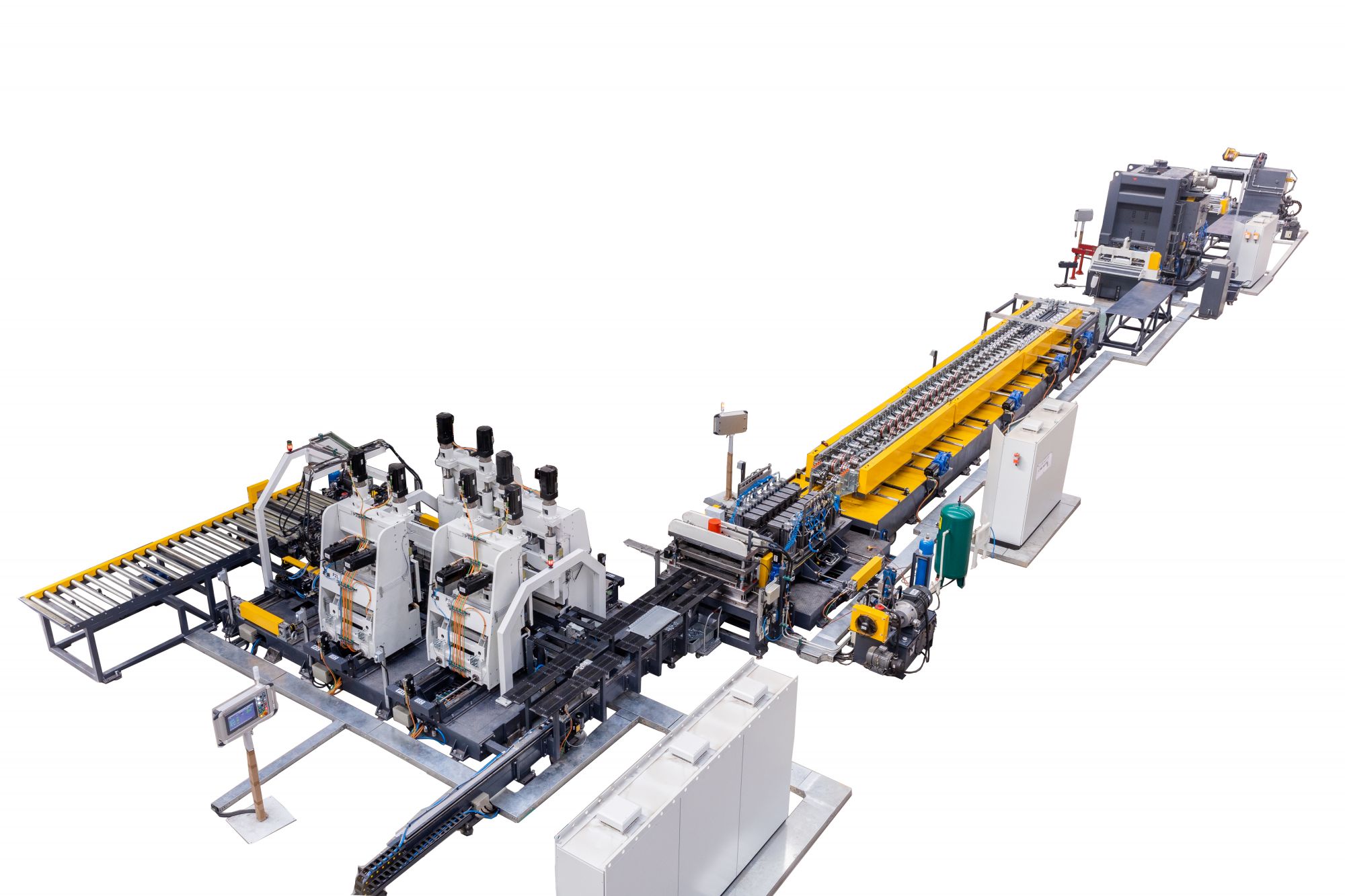

  TF automatic shelf panel production line is used to produce box shelf. The width and length of the parts can be set by touch screen parameters, and the stamping module can be selected through digital punching tools automatically. In addition, the parameters of stiffness can be selected and set automatically by forming a machine.
Components
uncoiler、servo feeding device、mechanical press、cantilever roll former、bending& cutting integrated device、centralized lubrication system、hydraulic system and electric control system

Specification

Equipment overview:
1.The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated. 2.Module torii is installed on NMT, adjust the distance through rotation leader screw.

Technical parameters:

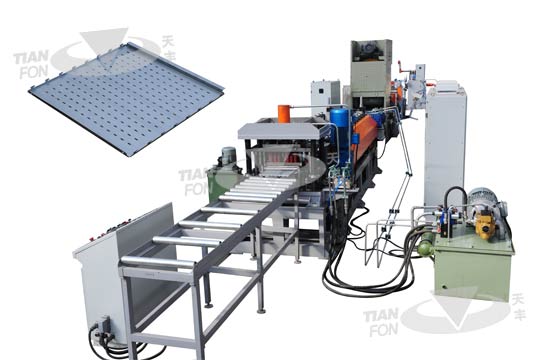

shelf panel roll forming line

   TF Shelf panel roll forming line
shelf panel roll forming line
Serial number Item Unit Parameters Remark
1 Suitable material Type   · Q300 cold-rolled steel plate、galvanized plate、color-paint plate 、 stainless steel plate
strength MPa
Thickness mm 1—2.5mm
Coil internal diameter mm 400mm
Coil weight T 10
2 Specification mm 280--680
3 Line speed m/min 40
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 21.5
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m 11X1.3X1


TF Shelf panel roll forming line shelf panel roll forming line

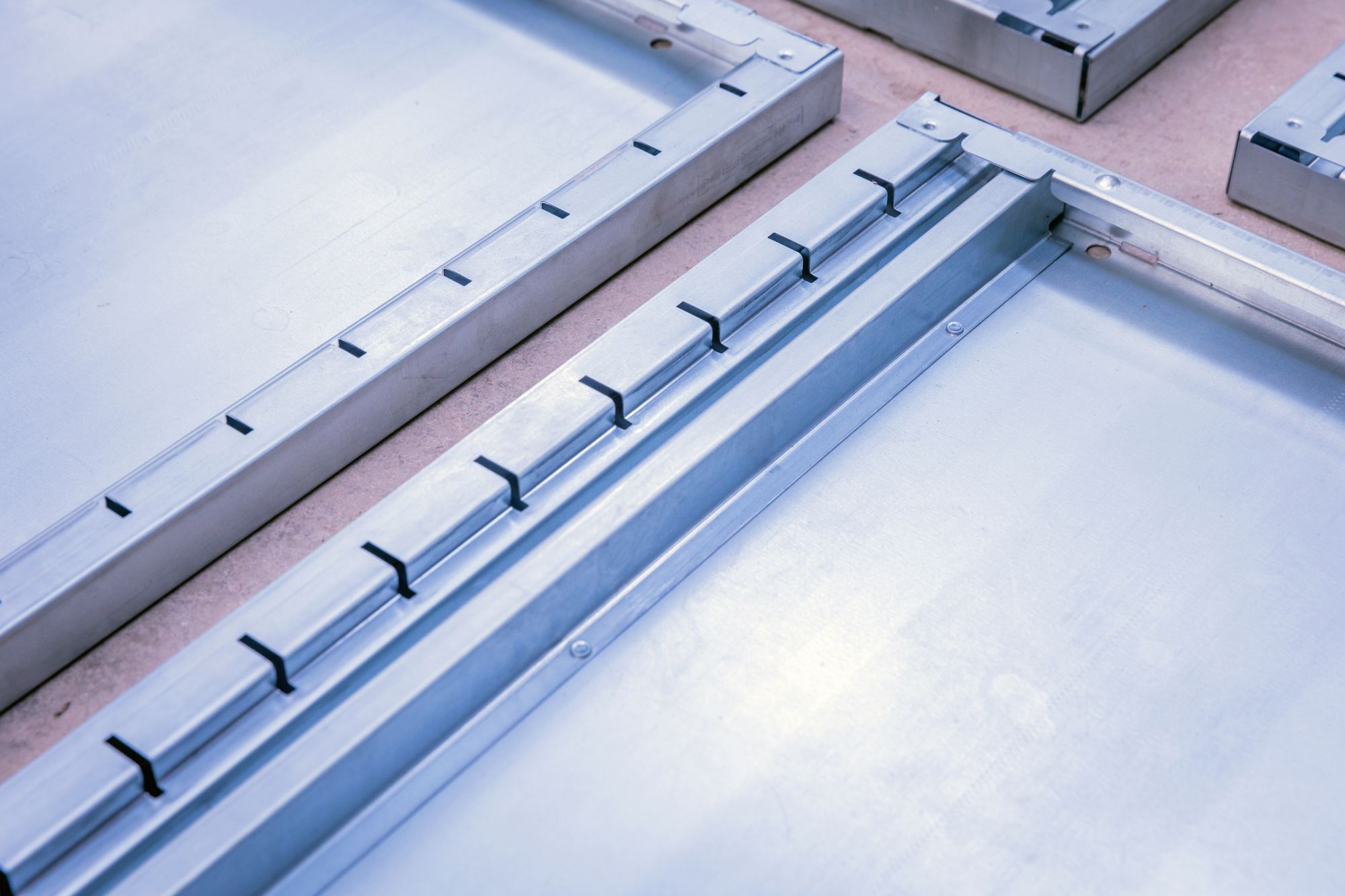

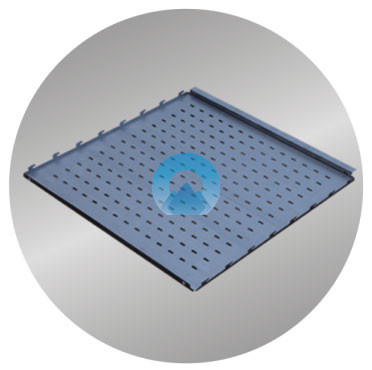

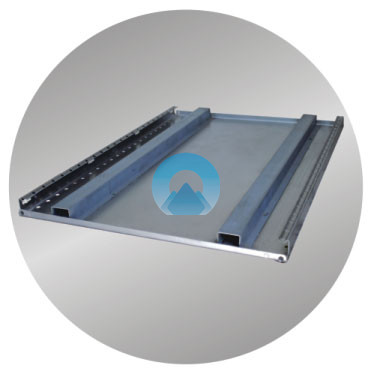

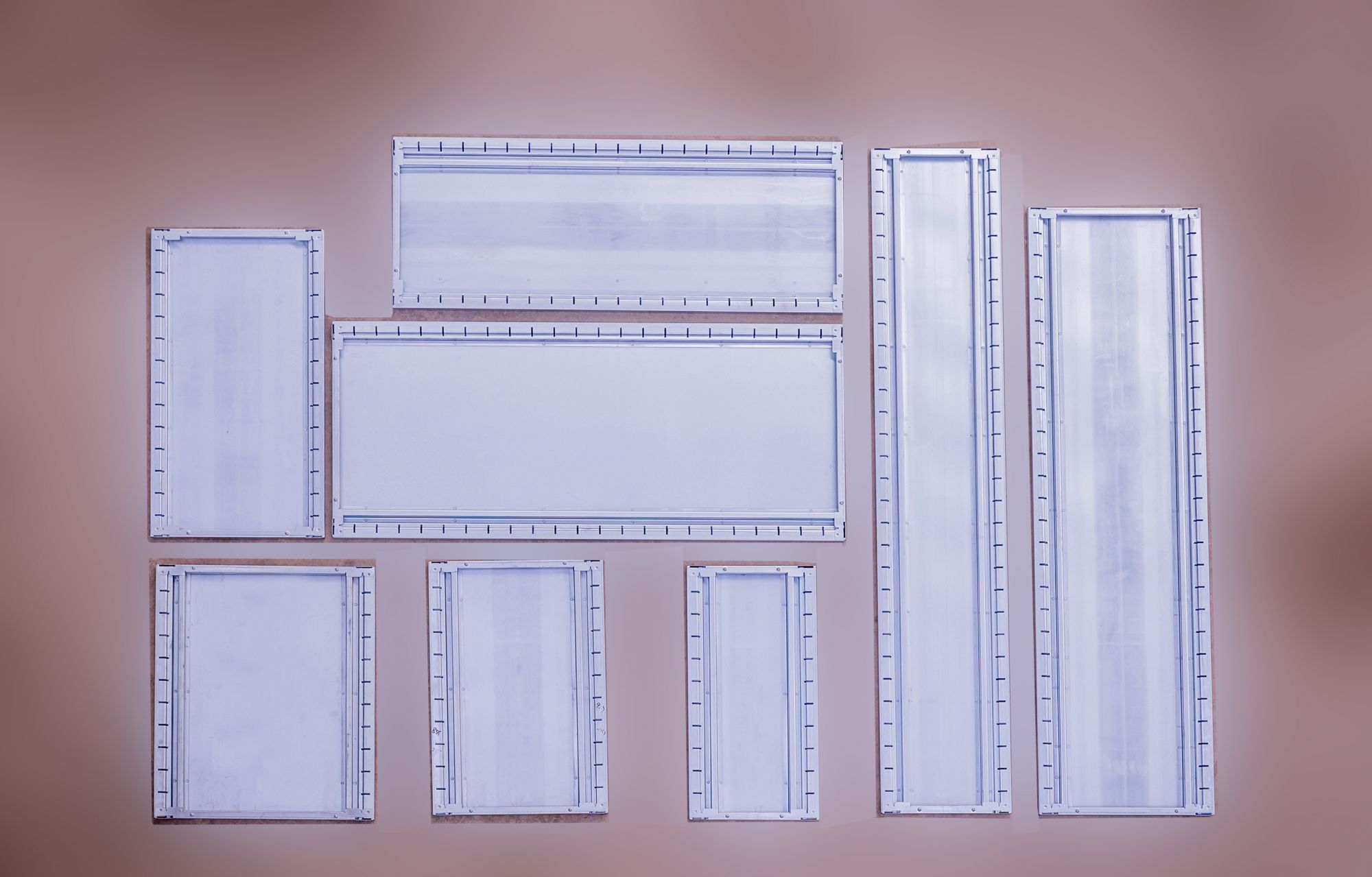

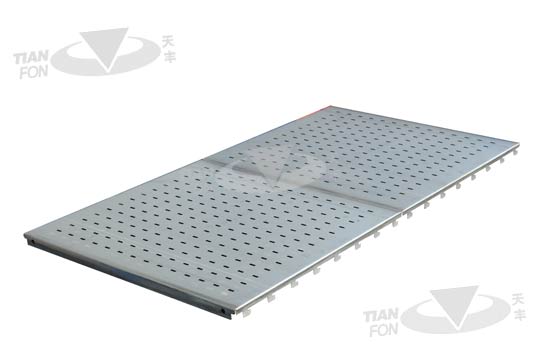

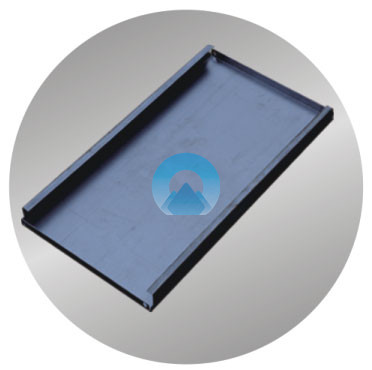

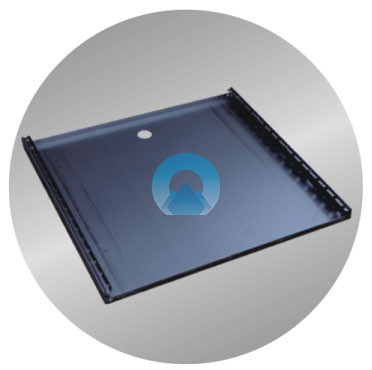

                                                                         TF Shelf panel section
shelf panel roll forming lineTF Shelf panel section
