TF Boxbeam Roll Forming Machine

Equipment overview:
TF BOXBEAM ROLL FORMING MACHINE produce box beam section, it is widely used in the racking system(pallet live racking、cantilever racking、modular shelving、li...
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

 TF BOXBEAM ROLL FORMING MACHINE produce box beam section, it is widely used in the racking system(pallet live racking、cantilever racking、modular shelving、live racking、the racking systems、mobile racking system).

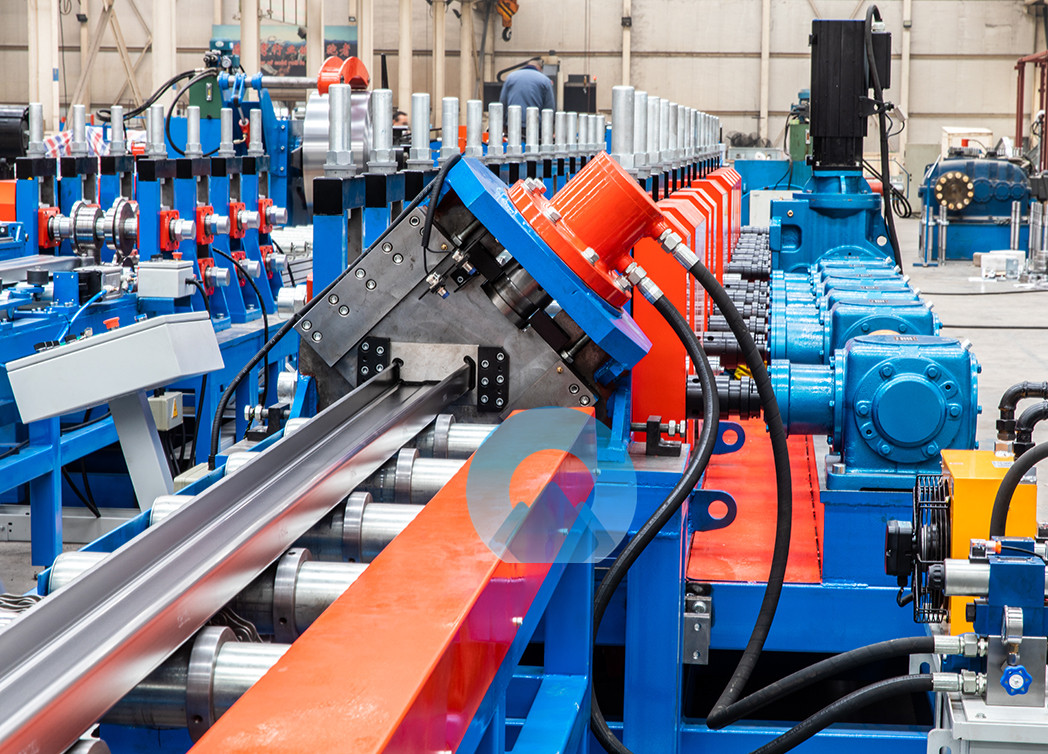

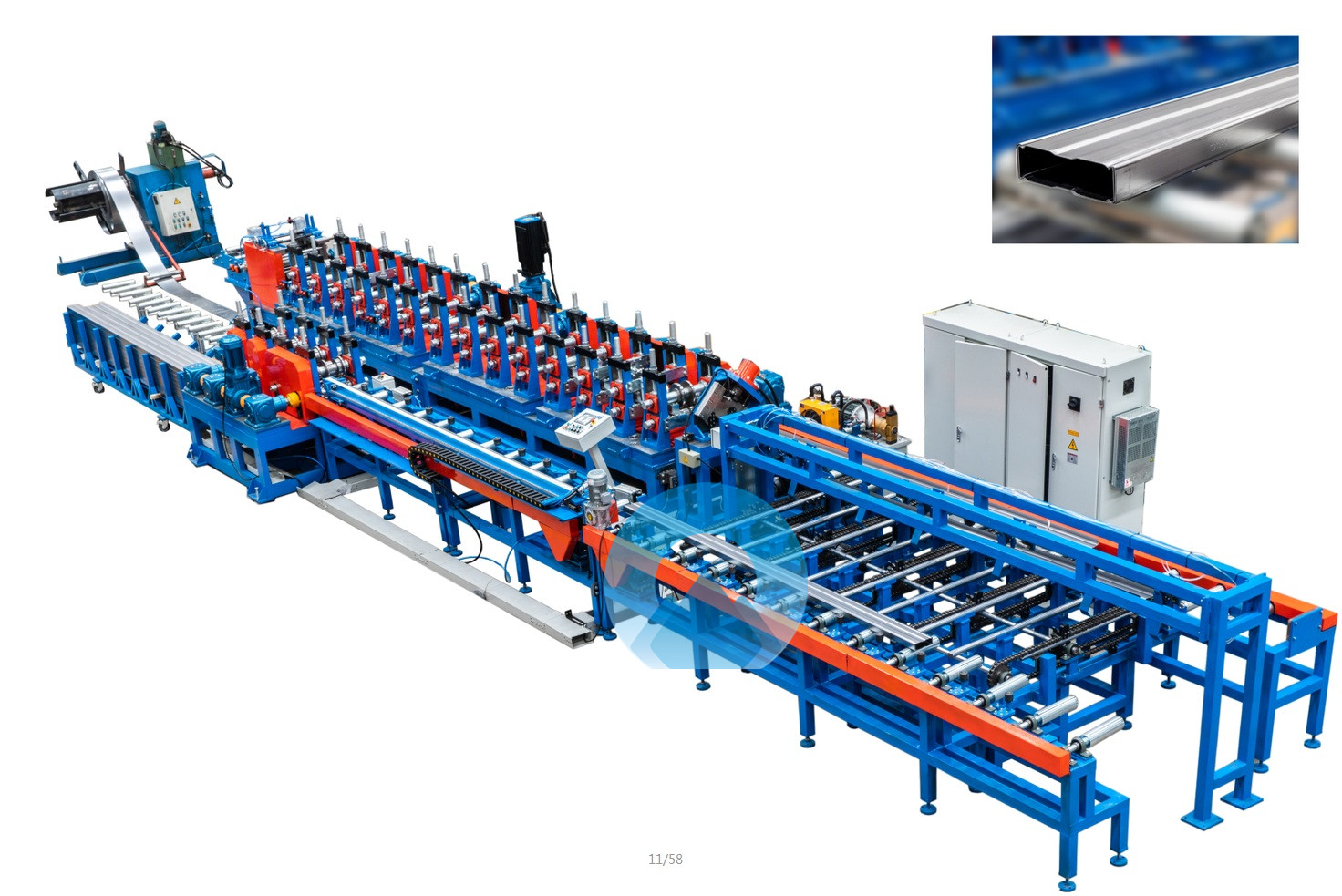

shelf boxbeam roll forming line

Specification

TF BOXBEAM ROLL FORMING MACHINE produce box beam section.The box beam section is safely carried on the front face of the upright where it belongs without ever touching or loading the side of the upright. to match different loading requirment. The roll forming machine can even shape the ribs on the profile discontinuously.

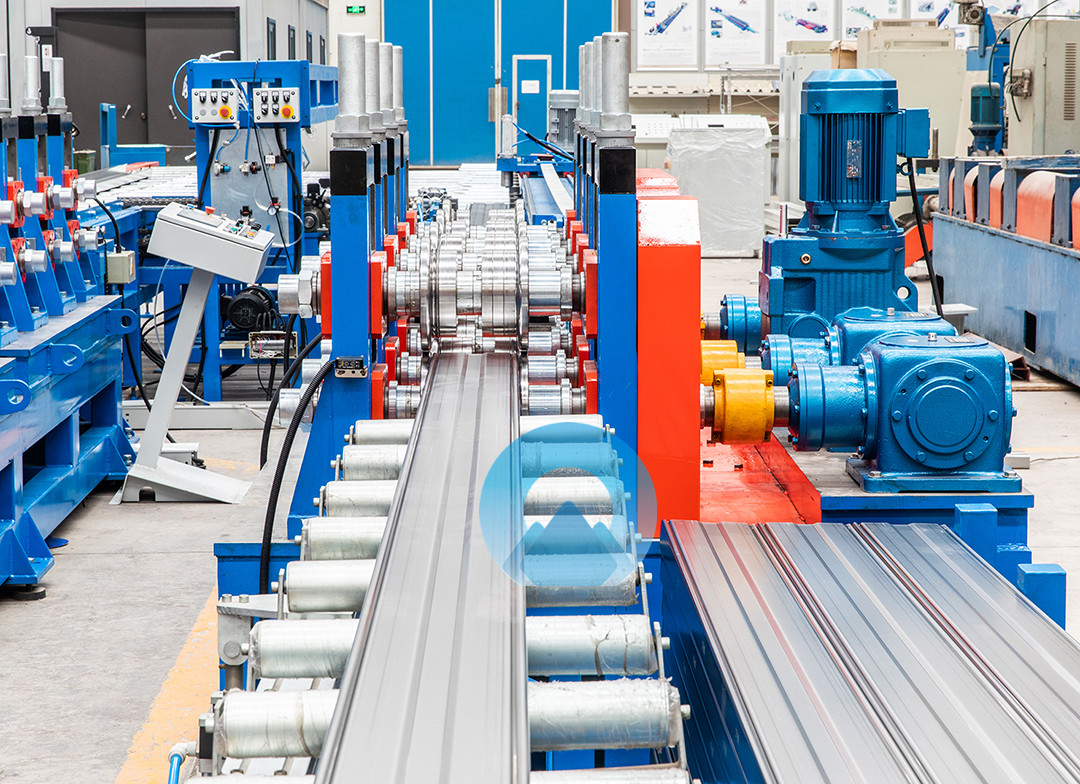

boxbeam roll forming line

TF BOXBEAM ROLL FORMING MACHINE
BOXING BEAM ROLL FORMING LINE

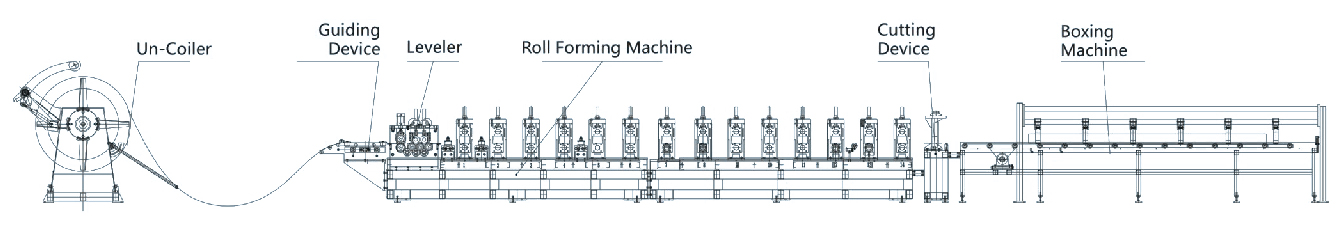

This line with auto flow production functions of  Un-Coiler →(cutter and welding for optional)→ Feeding And Guiding →Leveling →Roll Forming → Cutting →Turnover Platform→Boxing →Ran out  One operator could run the whole line. Products with high precise, good quality appearance. Machine with stable feature, short production assistance time.

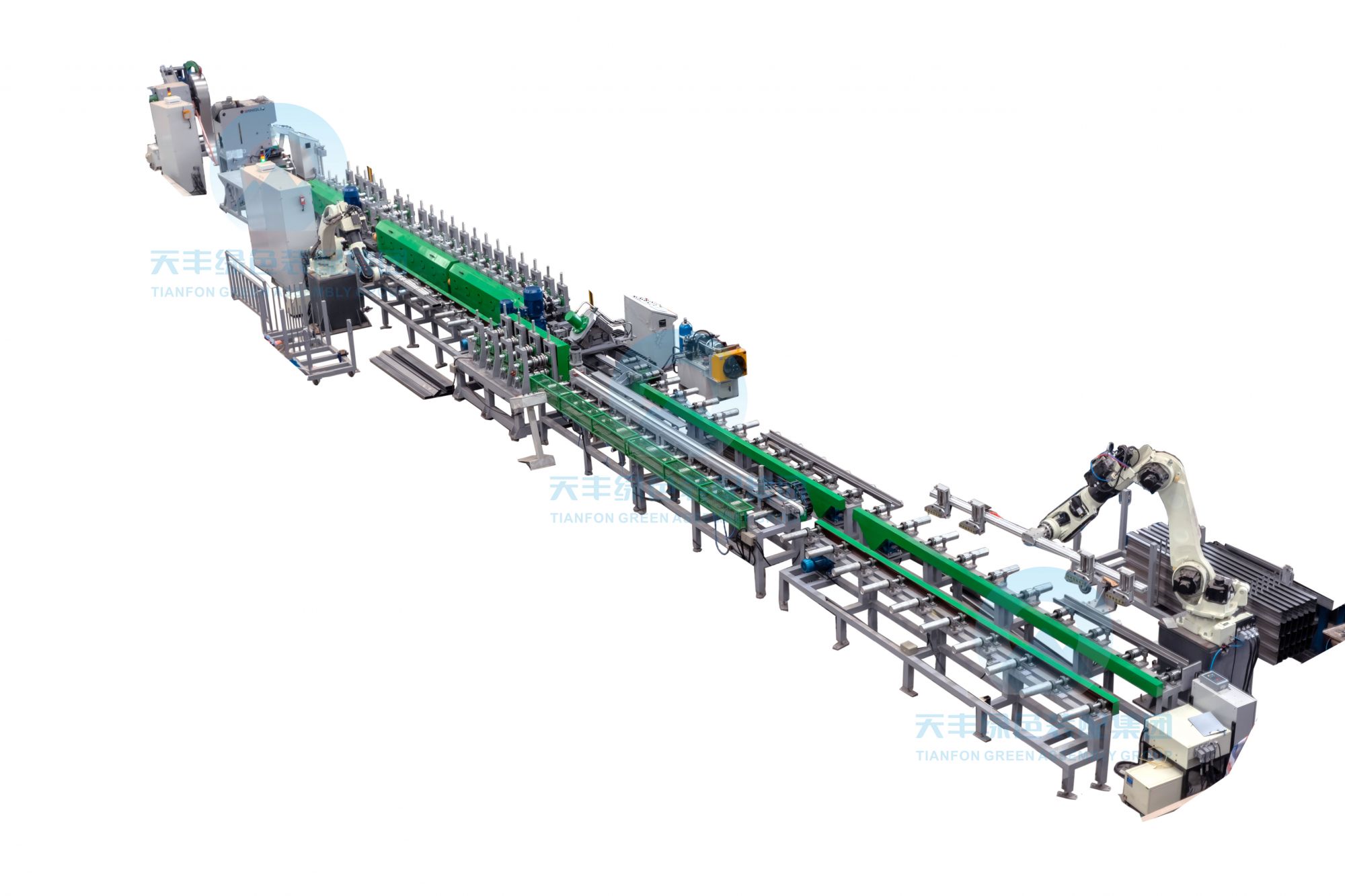

 boxbeam roll forming line

Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type   Q300 cold-rolled steel plate、galvanized plate、color-paint plate 、 stainless steel plate
strength MPa
Thickness mm 1.2mm~2.0mm
Coil internal diameter mm 508mm
Coil weight T 5
2 Specification mm 280--680
3 Line speed m/min 40
4 Roller material   Cr12, quenching treatment, HRC58-62
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 35
8 Electric control system   PLC automatic control system
9 Dimension(L*W) m 22X3

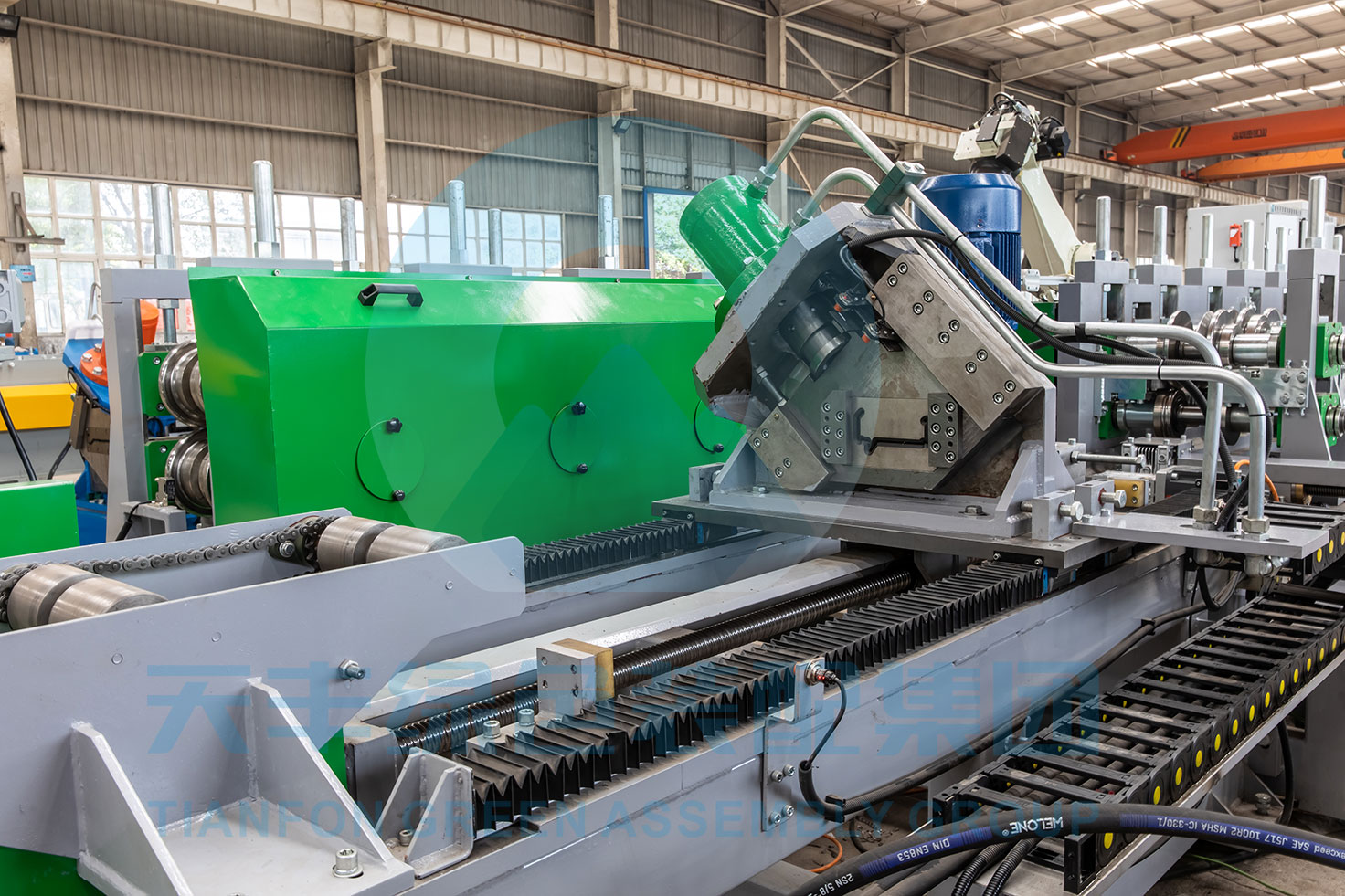

 BOXING BEAM ROLL FORMING LINE CUTTER  BOXING BEAM ROLL FORMING LINE

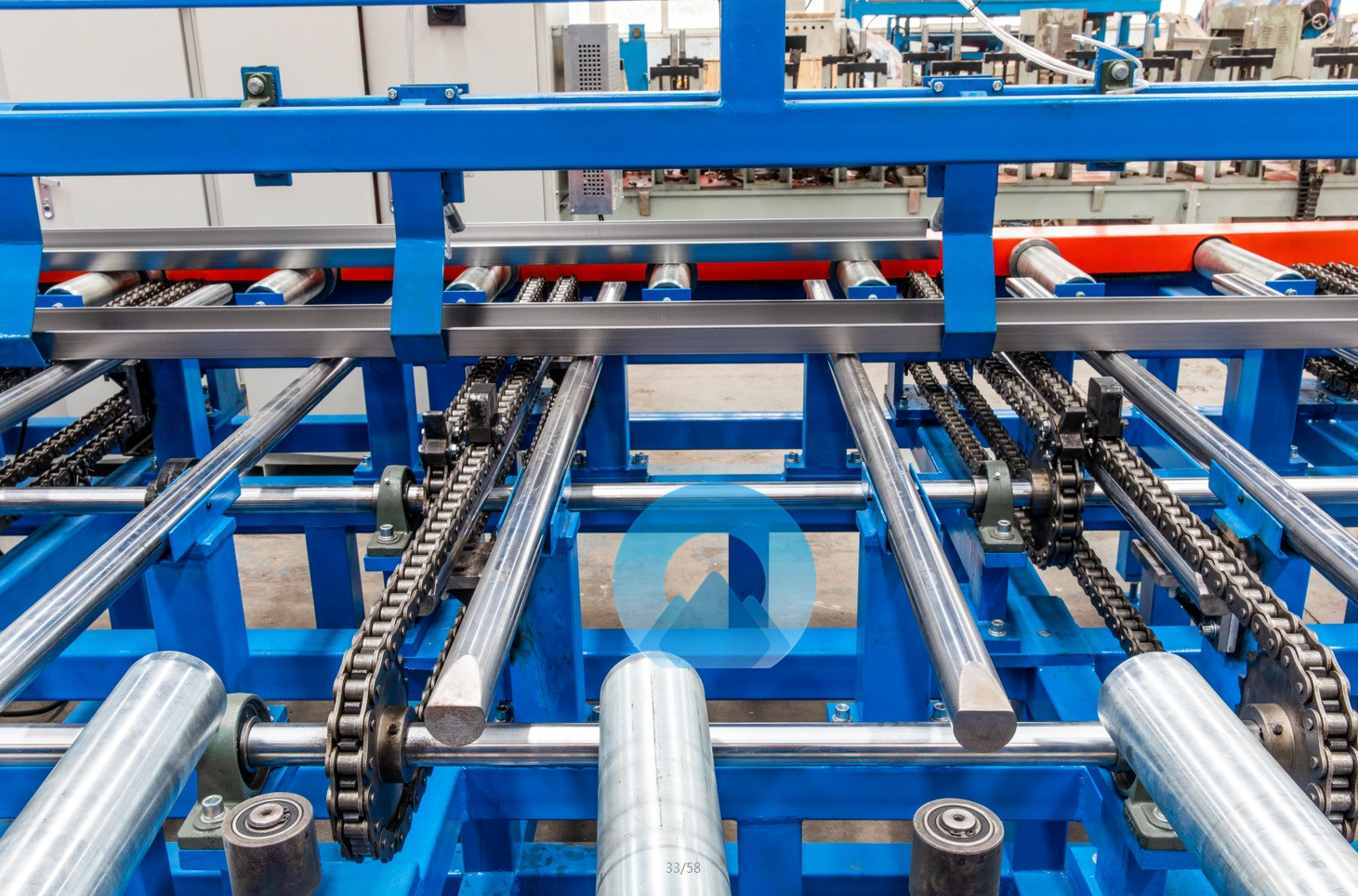

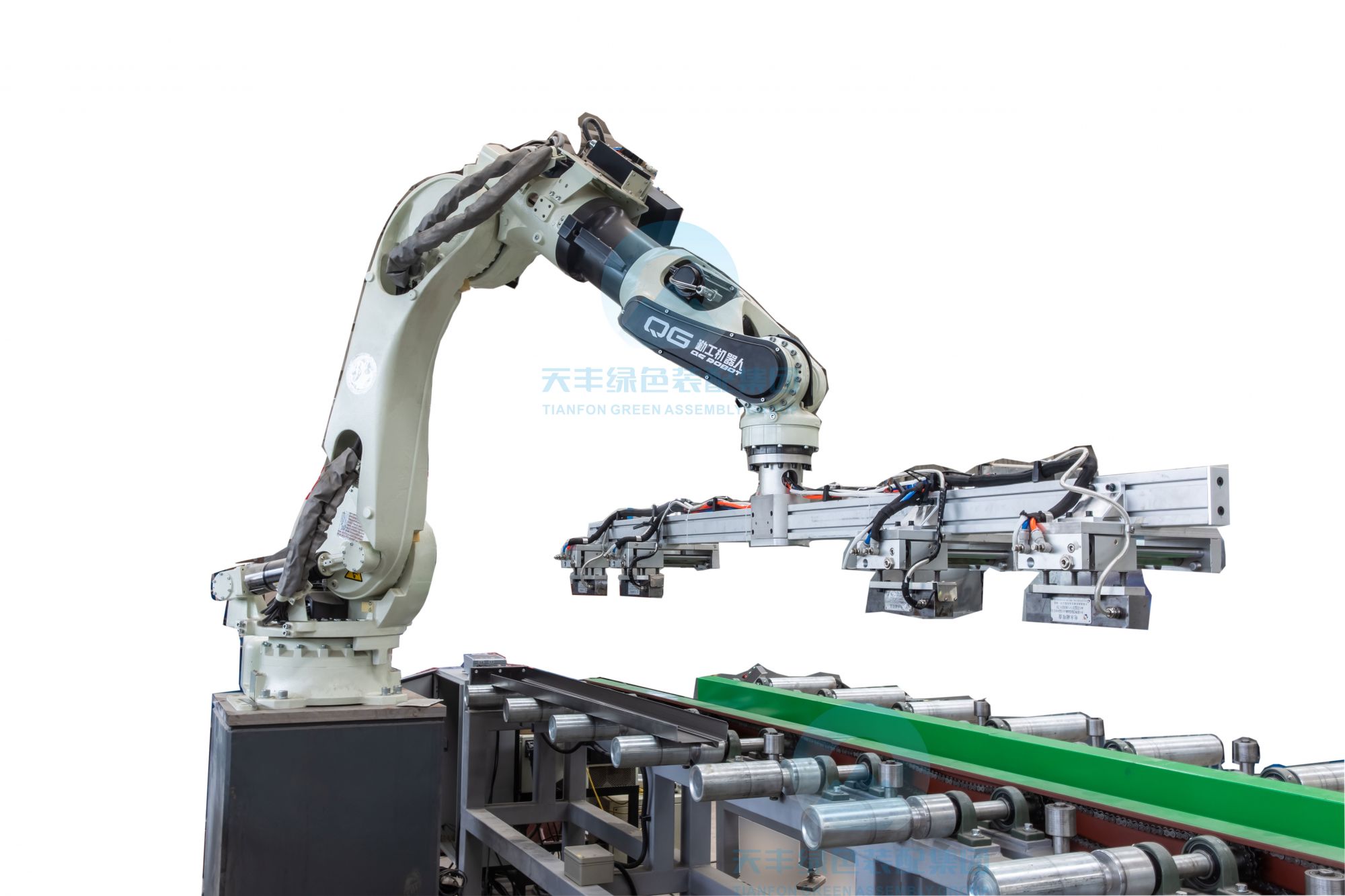

boxbeam roll forming line   boxbeam roll forming line

boxbeam roll forming line  boxbeam roll forming line

BOXING BEAM ROLL FORMING LINE






Components

 boxbeam roll forming line

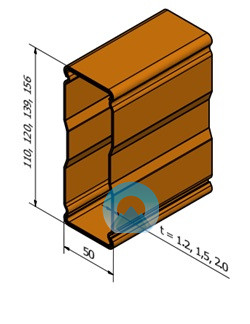

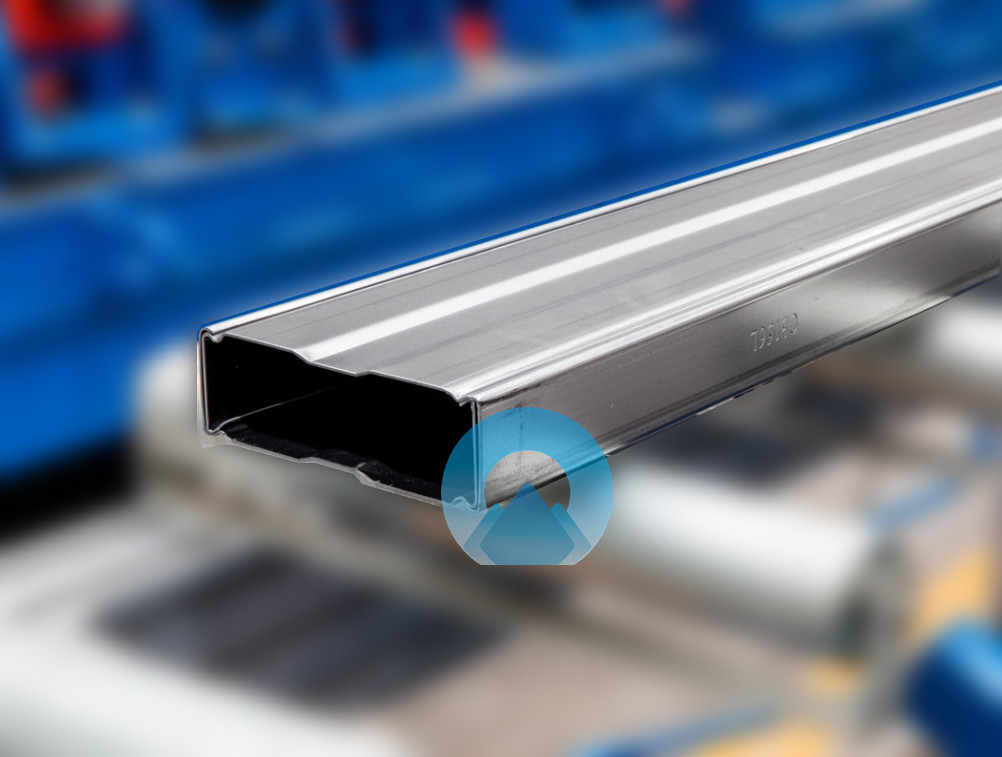

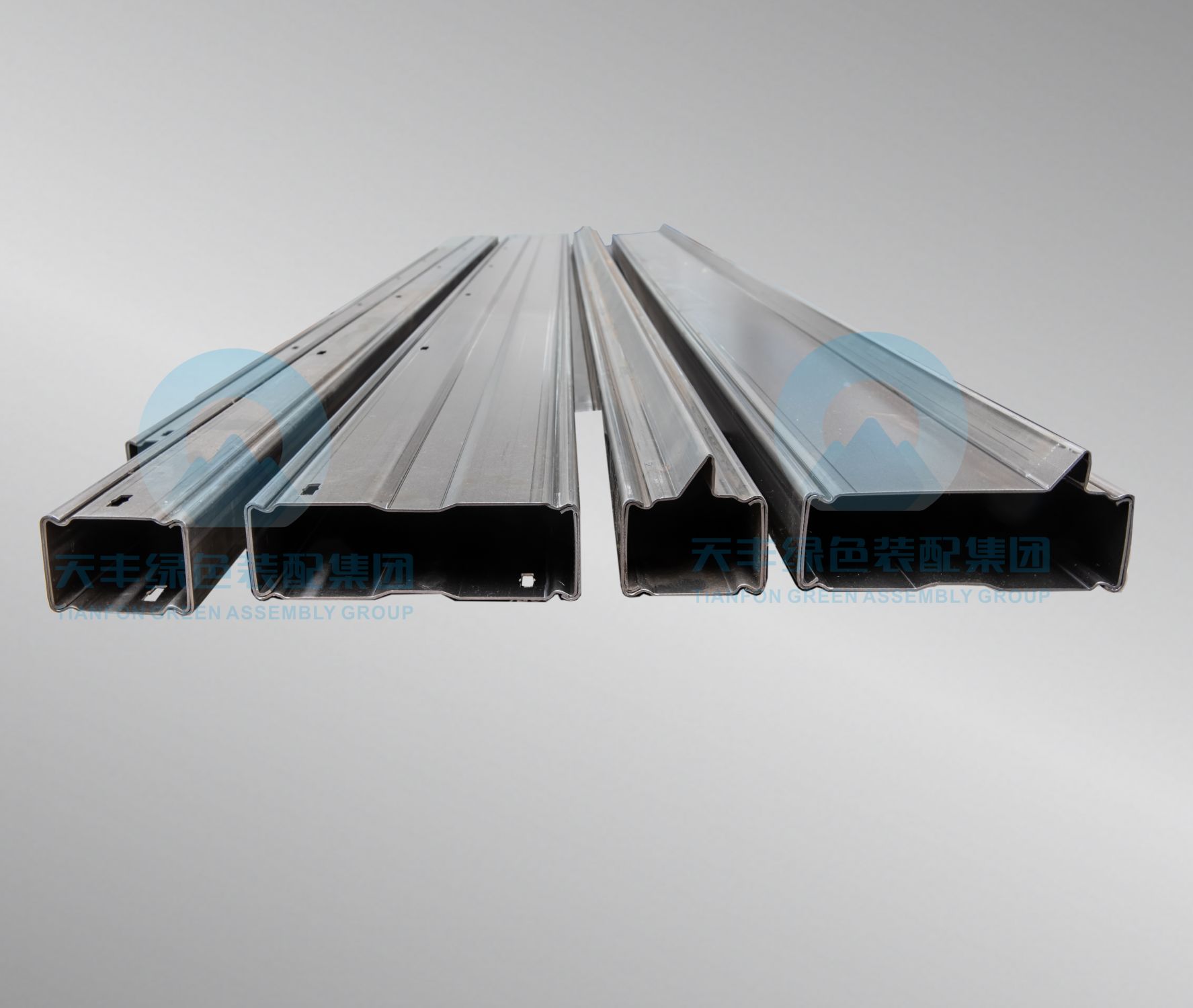

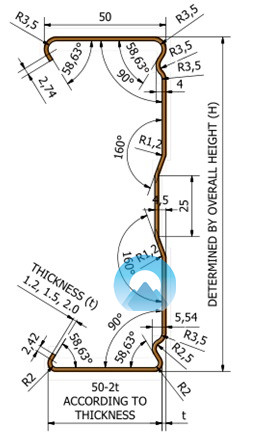

boxbeam section  boxbeam section
