TF Shelf Upright Roll Forming Line

Equipment overview:

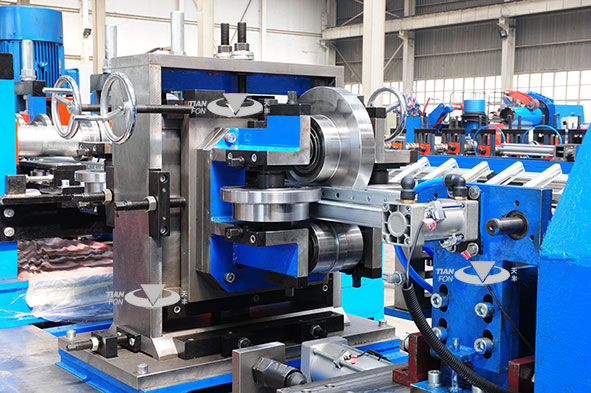

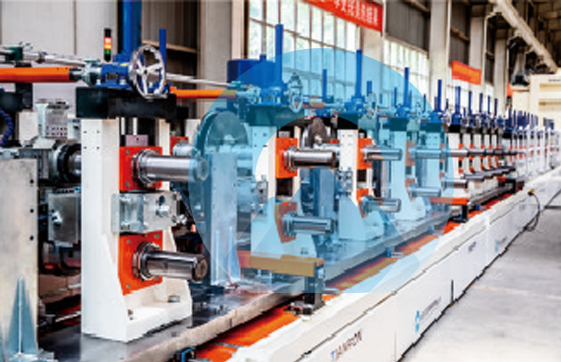

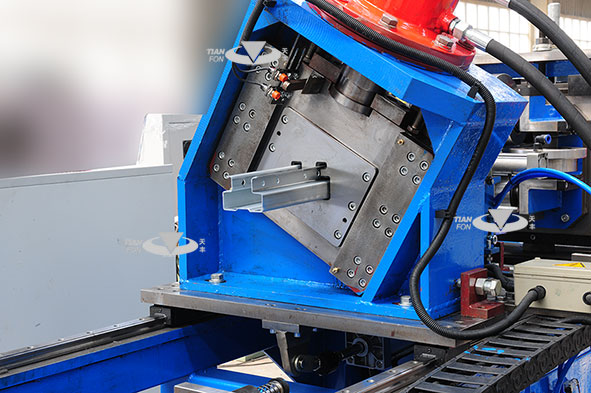

The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft.
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

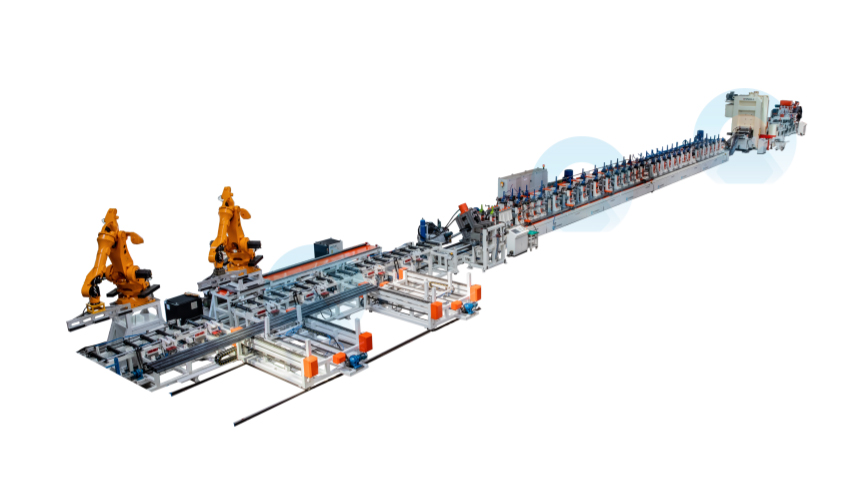

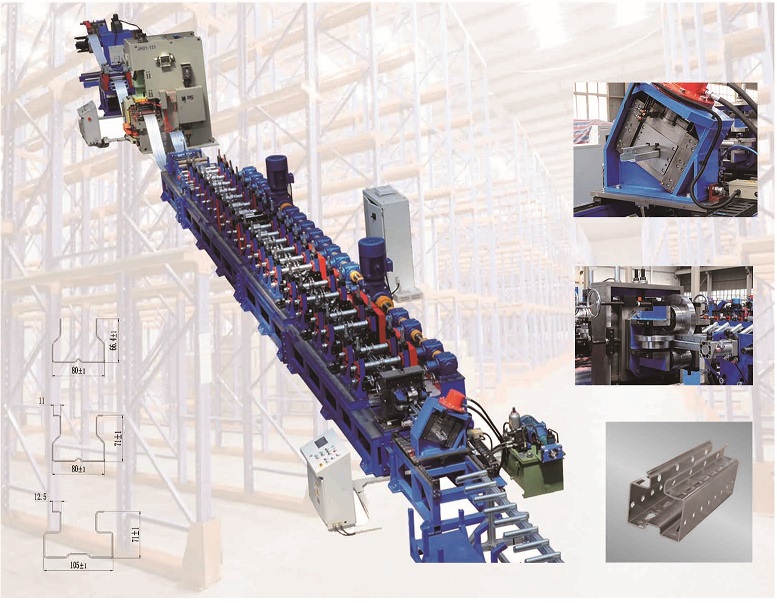

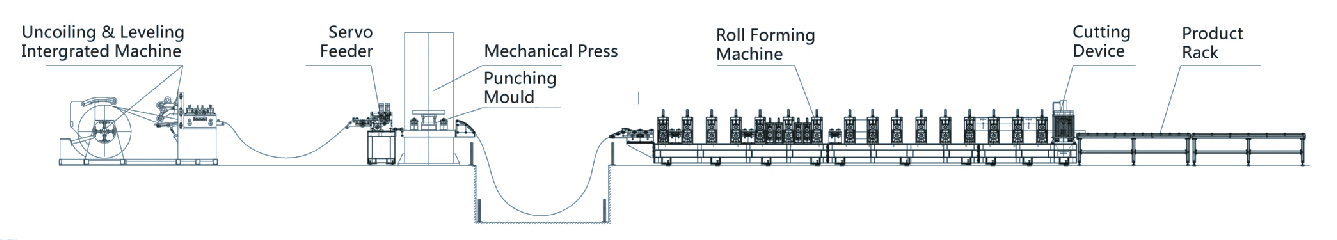

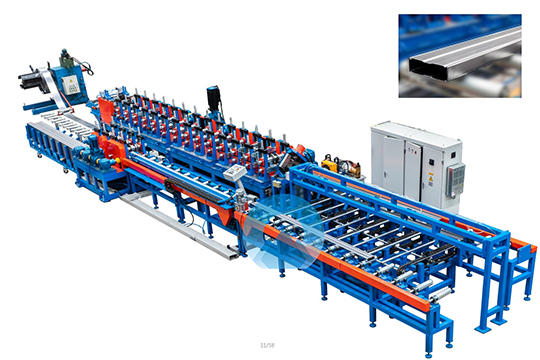

Automatic  Uncoil-Guiding-Leveling& Feeding-Continuous punching-Roll forming-Measure& Cutting-Automatic stacker

upright Roll Forming Line



Specification

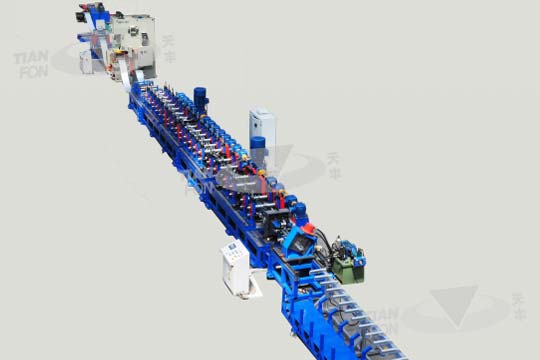

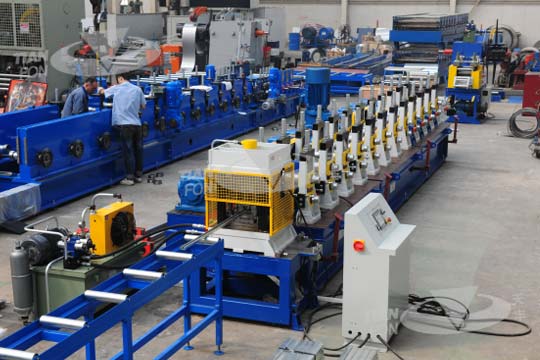

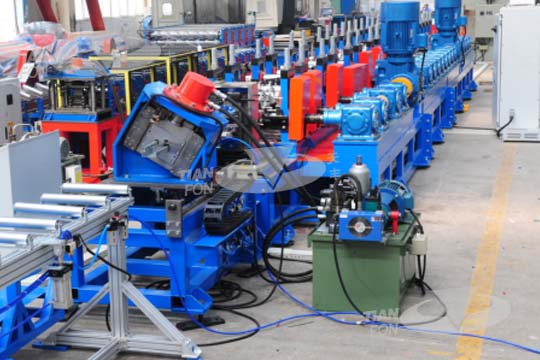

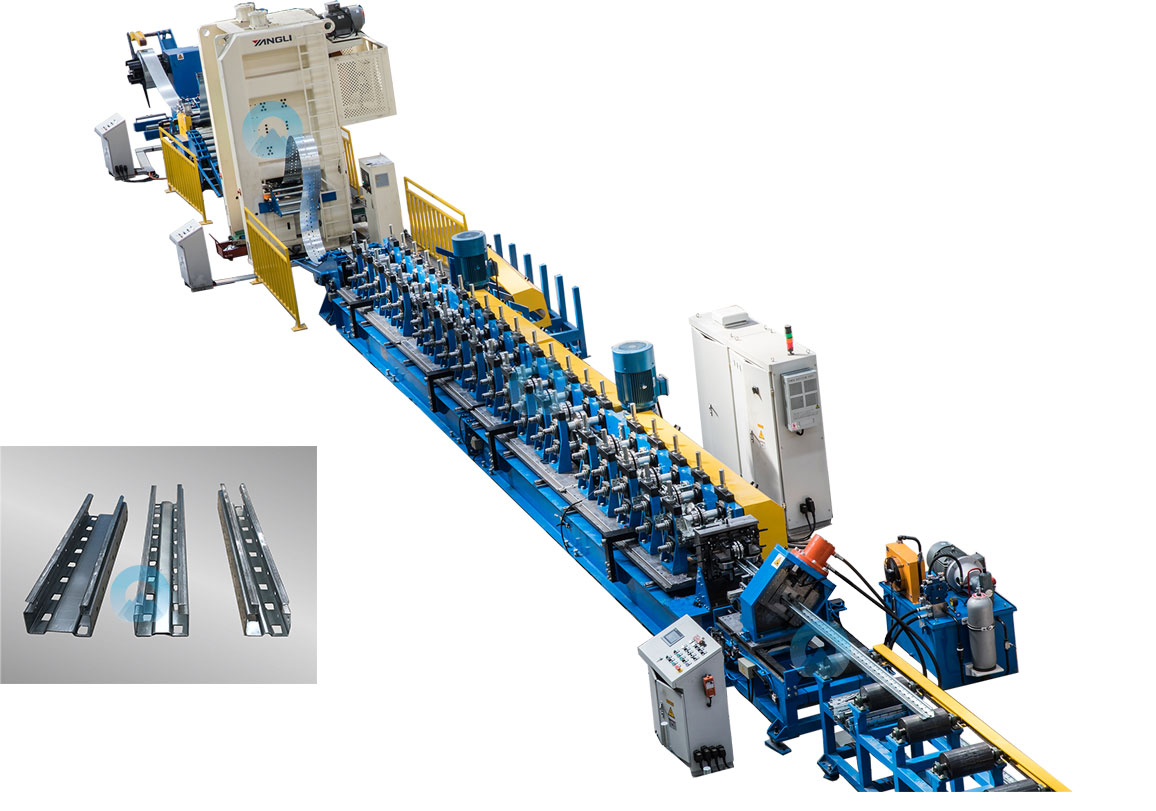

This line with auto flow production functions of uncoiling, butt-welding, leveling, servo feeding, punching, roll forming and track cutting etc, perfectly achieve the joint of punching, roll forming and cutting. One operator could run the whole line. Products with high precision, good quality appearance. Machine with stable feature, short production assistance time, production efficient could reach 20m/min.

Equipment overview:

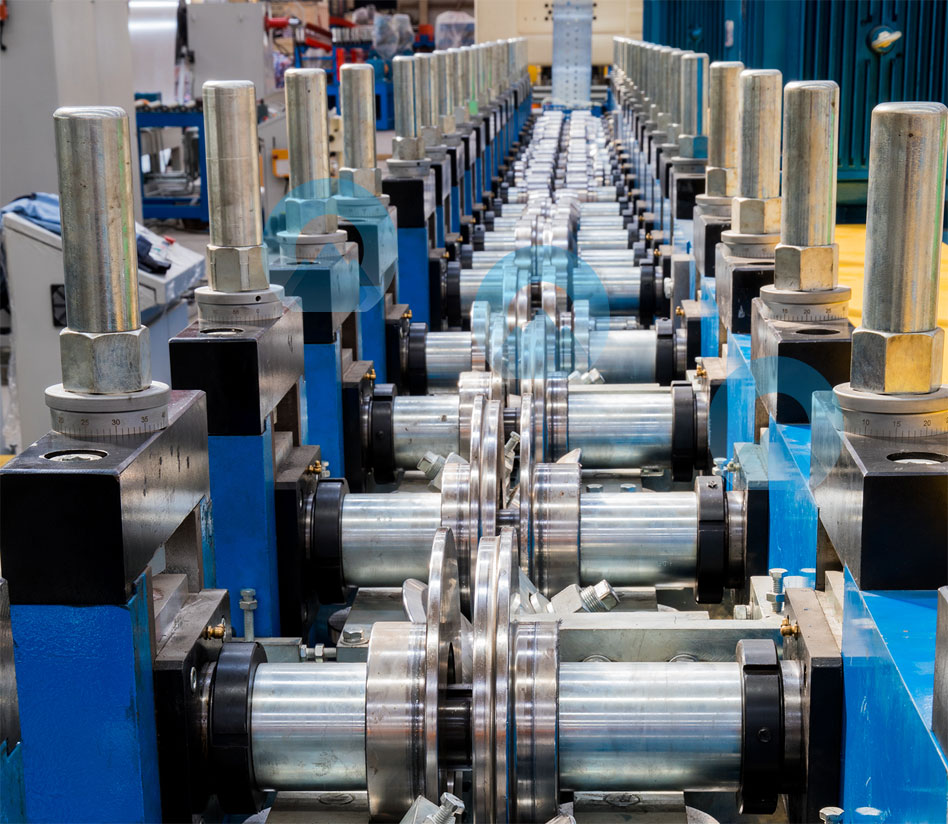

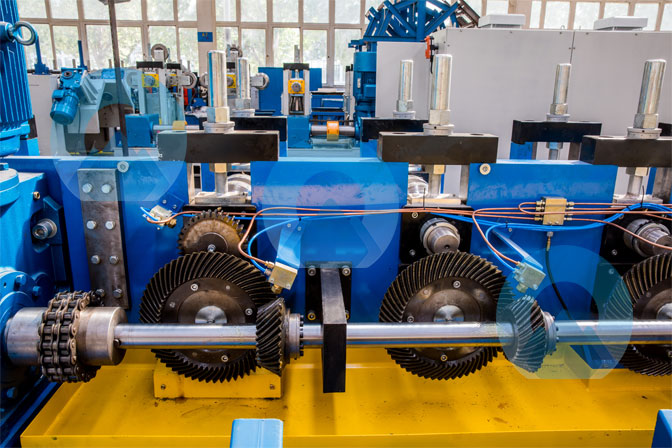

1. The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated.
2.Module torii is installed on NMT, adjust the distance through rotation leader screw.

Technical parameters:

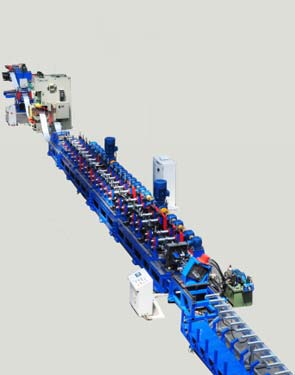

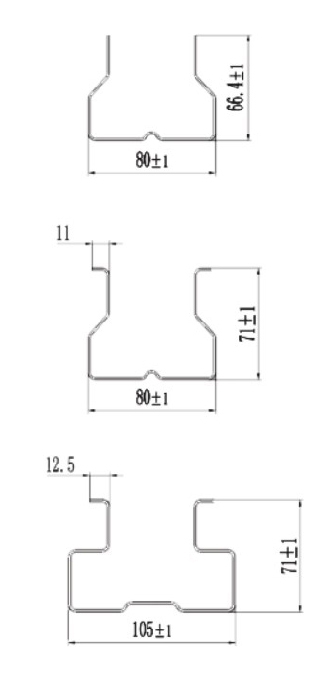

TF 71-105X SHELF UPRIGHT AUTO PUNCH ROLL FORMING LINE
TF 71-105X SHELF UPRIGHT AUTO PUNCH ROLL FORMING LINE

shelf pillar roll former

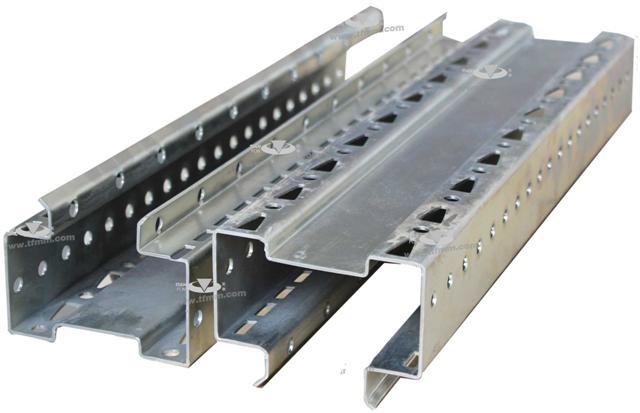

Shelf Standard、Heavy-duty Rack Roll Forming Line characteristics:

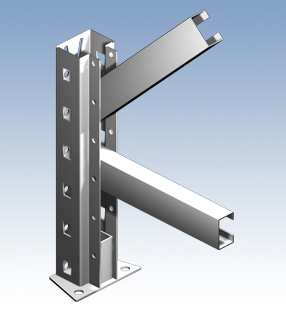

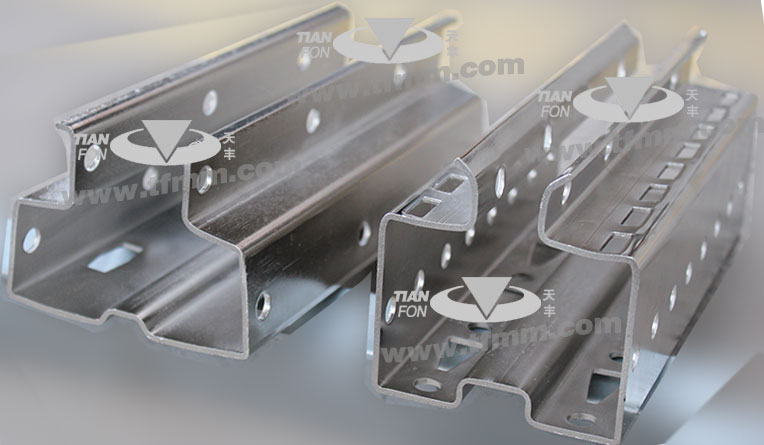

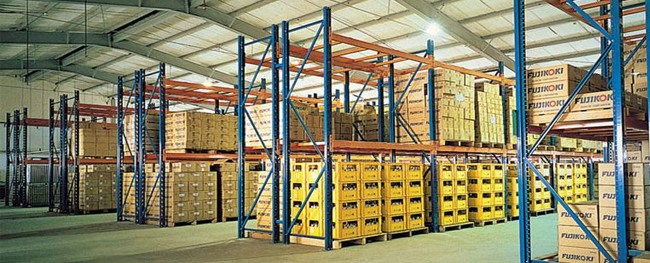

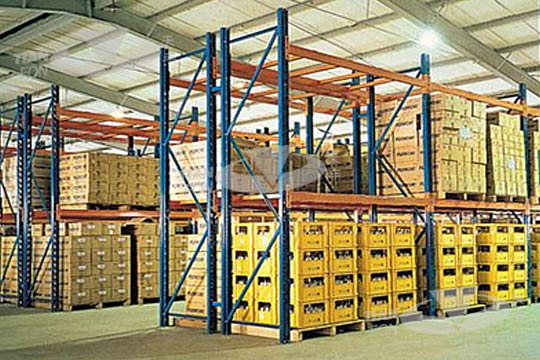

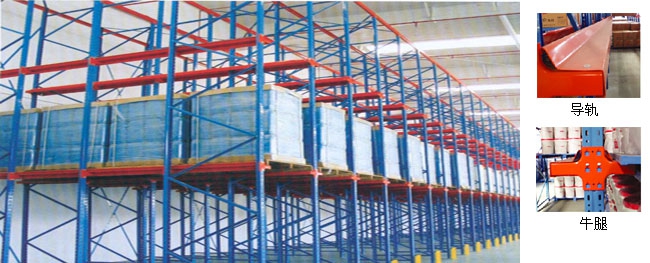

Shelf Standard、Heavy-duty Rack Roll Forming Line , it is widely used in storage、logistic、big supermarket and supermarket chain store, the straightness of the profile is good. Punching online, the precision of the punch is high, it is convenient for the rack installation.
Shelf upright roll forming line
Serial number Item Unit Parameters Remark
1 Suitable material Type   Q235
strength MPa
Thickness mm 1—2.5mm
Coil internal diameter mm 500mm
Coil weight T 3

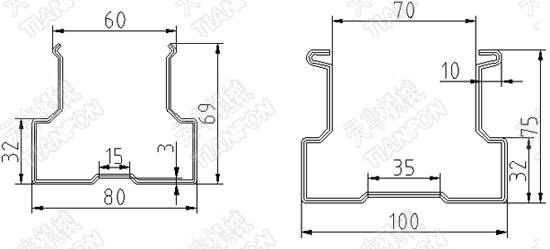

2 Specification mm 550
3 Line speed m/min 22
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About22
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m


rack roll forming line    rack roll former



upright rack roll former

upright rack roll former
TF 71-105X SHELF UPRIGHT AUTO PUNCH ROLL FORMING LINE
Rack roll forming unit

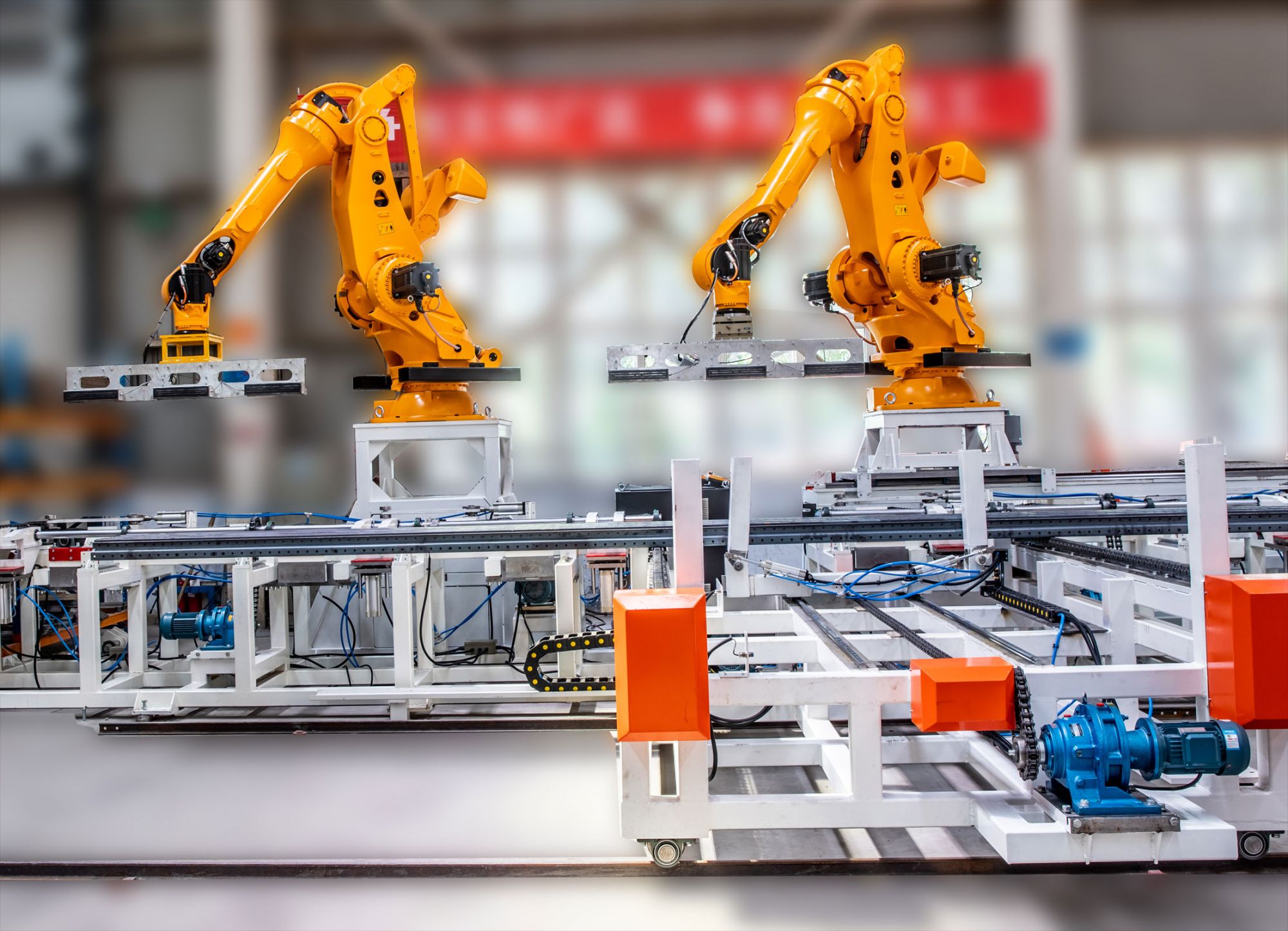

Rack column automatic mechanical unloading arm
Rack column automatic mechanical unloading arm
shelves roll forming lineShelves and racking system roll forming machine
TF  Shelf Standard  Heavy-duty Rack

shelf upright roll former

      rack roll former

Shelves and racking system roll forming machine  shelves roll forming line





Components

shelf upright roll former

      rack roll former

Shelves and racking system roll forming machine  shelves roll forming line
