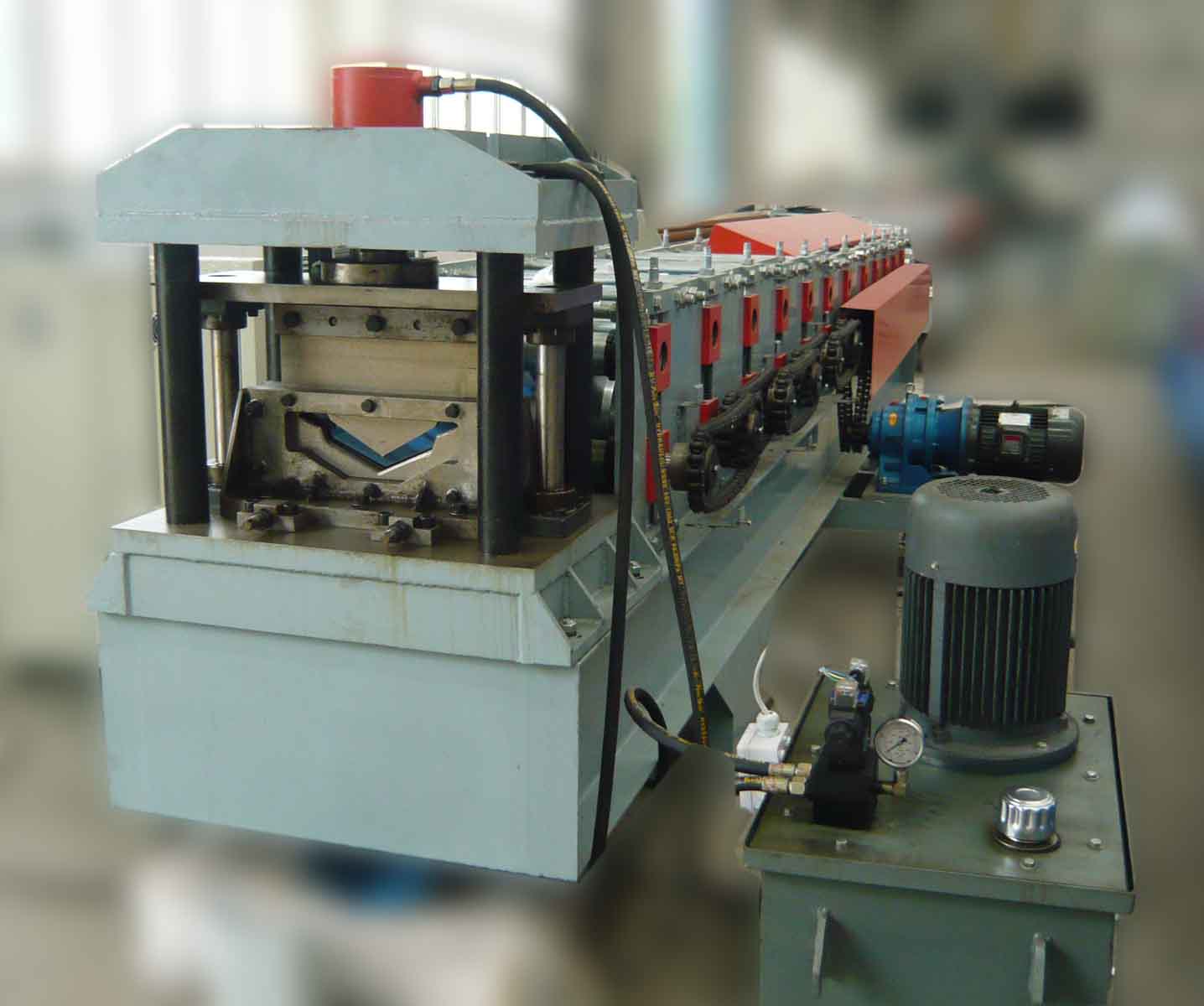

Gutter Roll Forming Machine

Equipment overview:
TF gutter roll forming line with auto flow production functions of uncoiling, leveling, roll forming and track cutting etc, perfectly achieve the joint of roll forming , cutting. One operator could run the whole line. Products with high precise, good q
  • Product description
  • Product Details

Components

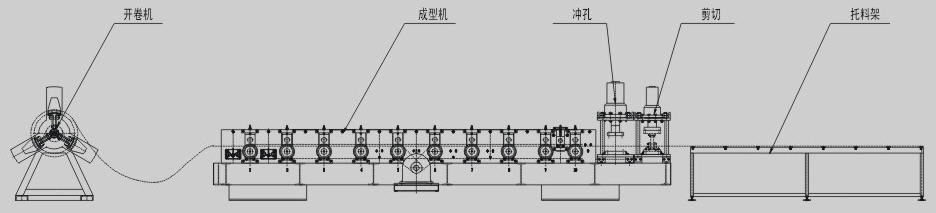

Manual Decoiler ---- Feeding Guide ---- Roll Forming ---- Length Measuring --- Hydraulic Cutting ---Runout table
roll forming

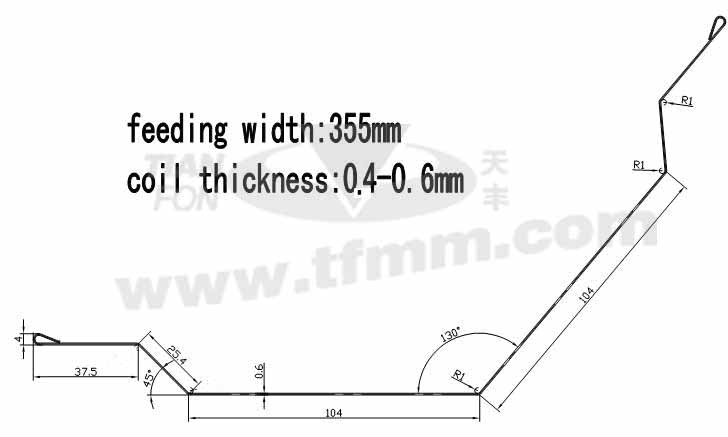

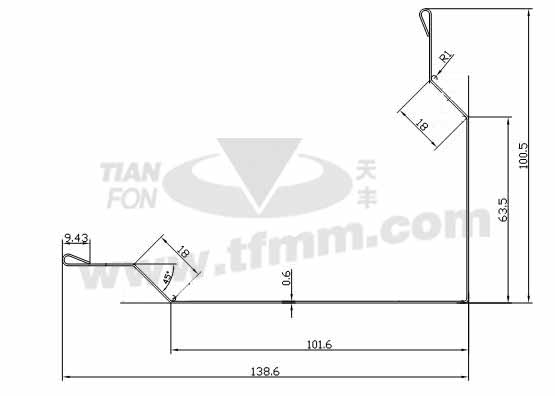

Specification

TF gutter roll forming line with auto flow production functions of uncoiling,  leveling,  roll forming and track cutting etc, perfectly achieve the joint of  roll forming , cutting. One operator could run the whole line. Products with high precise, good quality appearance. Machine with stable feature, short production assistance time, production efficient could reach 15m/min.
gutter roll former      gutter roll forming machinegutter roll former

Technical parameters:

Serial number Item Unit Parameters Remark

1

Suitable material
Type   Q235, galvanized sheet Prepainted coil
strength MPa ≤235
Thickness mm 0.4mm~0.8mm
Coil internal diameter mm 500
Coil weight T 3
2 Specification mm Φ500~Φ600mm
3 Line speed m/min 10
4 Roller material   GCr15
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About 3
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H)

metal gutter machine   gutter roll former

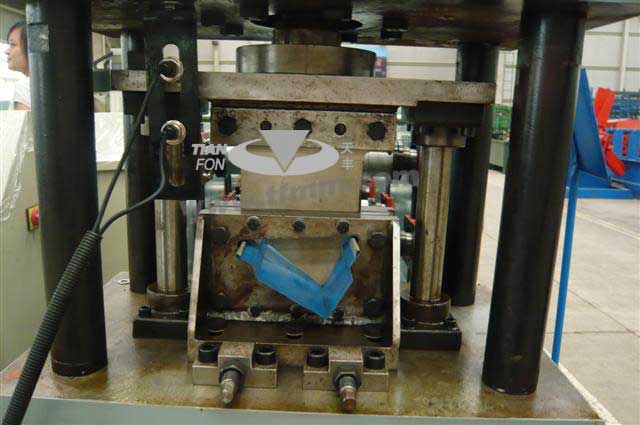

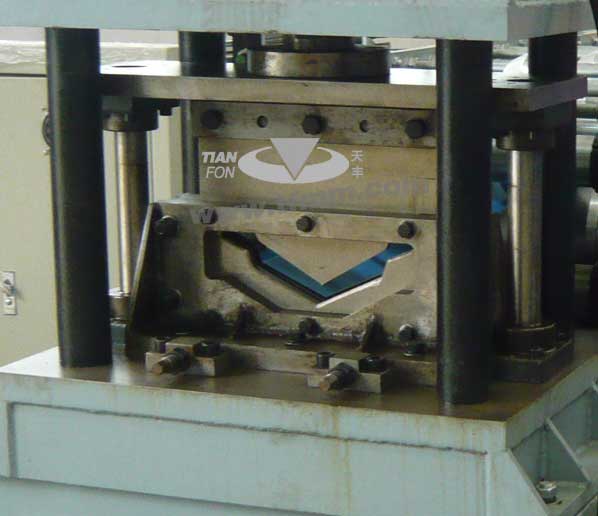

Components

 gutter roll former   gutter roll former
