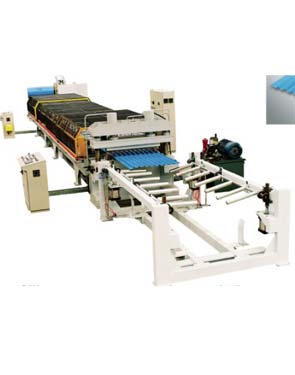

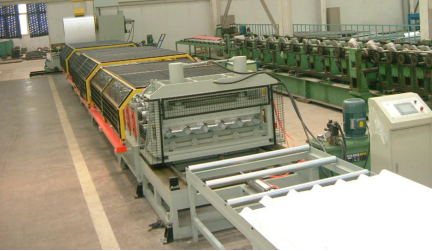

TF Roof Panel Roll Forming Line

Equipment overview:
TF Roof Panel Roll Forming Line speeds up to 60m/min, which can produce different profile through change quick-change cassette easily. One worker can operate the all line .PLC collective control the loading coil ,un-coiler ,pre-shears, forming machine, cu
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

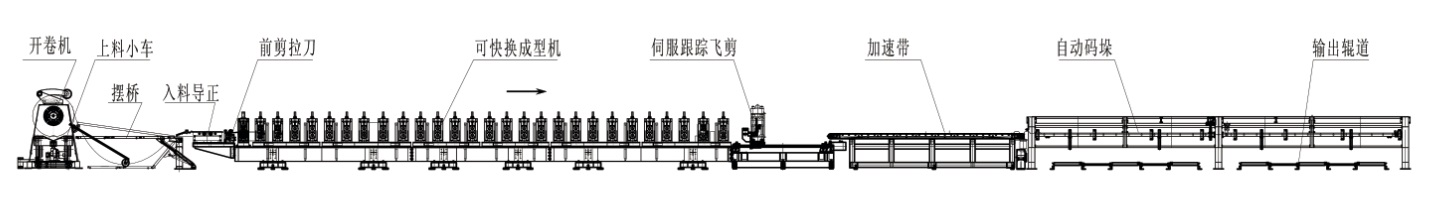

                            Uncoiling → Feeding guider→ roll forming →cutting → discharging




Specification

Equipment overview:

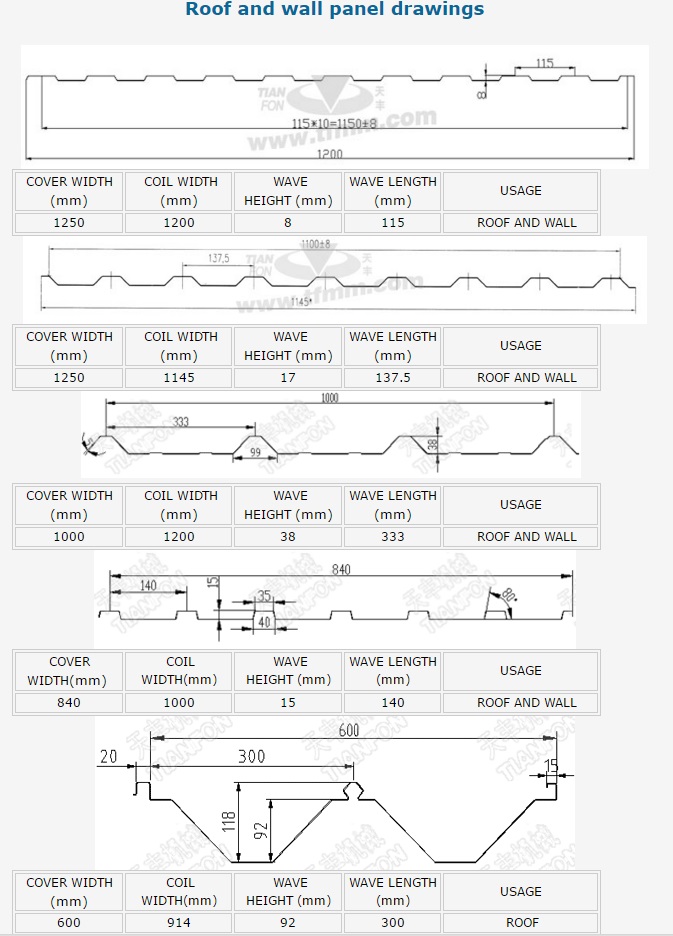

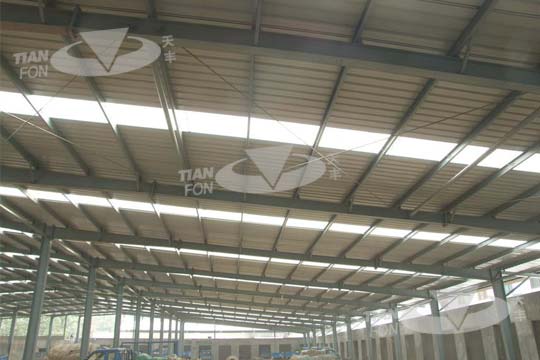

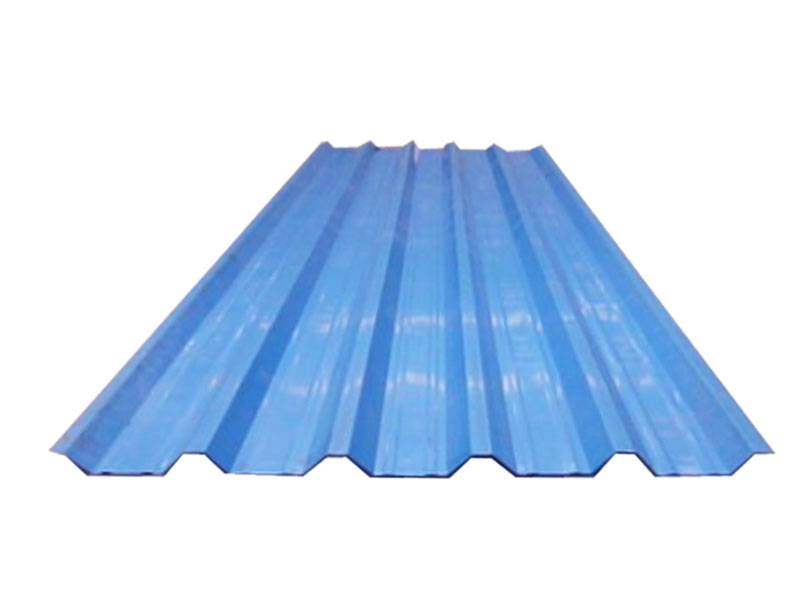

1.This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects and containment systems etc.
2. This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.
3. The line speed of this panel forming machine is 40m/min.

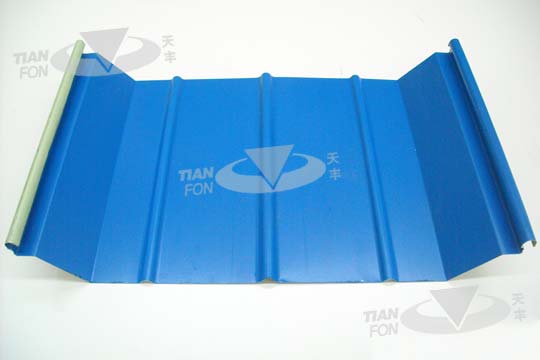

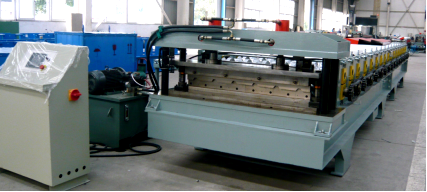

roof panel roll former

Technical parameters:

Serial number Item Unit Parameters Remark

1
Suitable material		 Type galvanized steel
strength MPa ≤350
Thickness mm 2.0-3.0mm
Coil internal diameter mm 500,600
Coil weight T 5
2 Specification mm 120
3 Line speed m/min 15
4 Roller material 45# steel, with hard chrome on surface, polishing
5 Roller driven type External chain transmission
6 Operating system Windows2000
7 Total motor power Kw 15
8 Power supply PLC automatic control system
9 Dimension(L*W*H) m

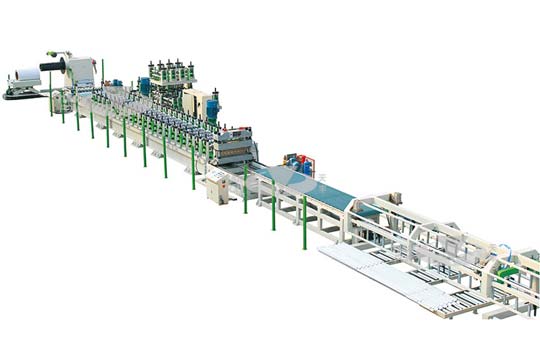

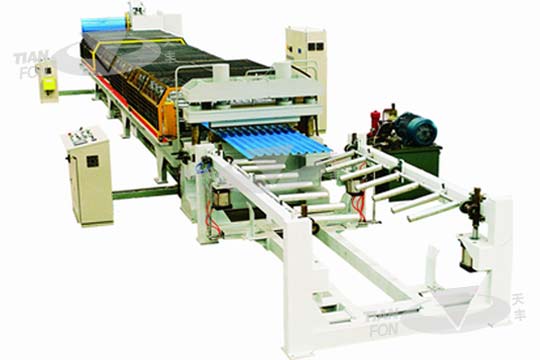

Roof Panel Roll Forming Line

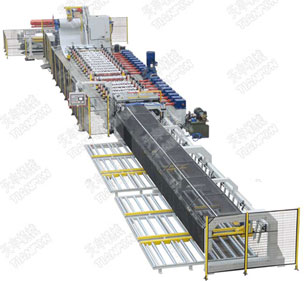

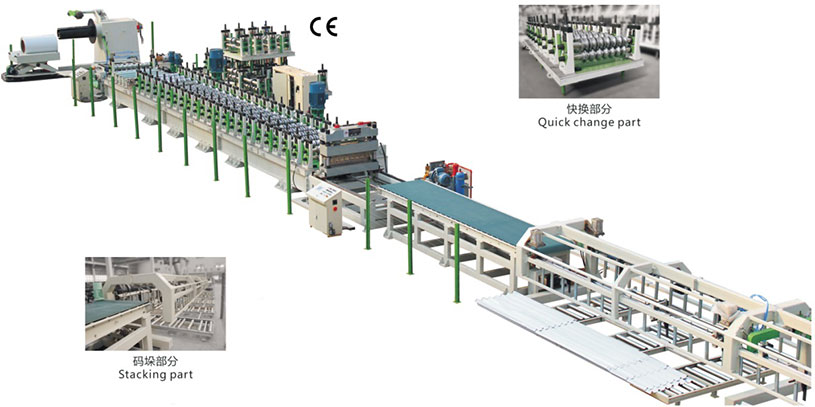

TF 45/50 quick-change-raft roll forming machine
Roof Panel Roll Forming Line  Roof Panel Roll Forming Line

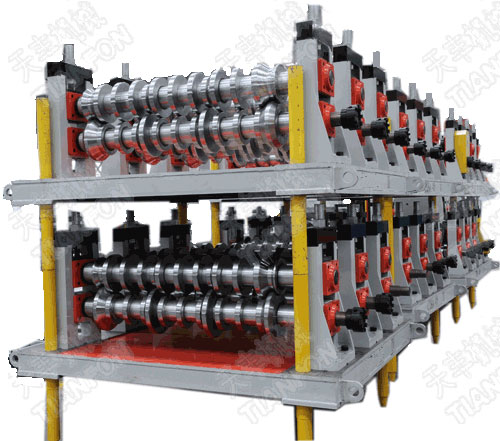

TF 45/50 quick-change-cassettes

            roof-panel-roll-forming-line
