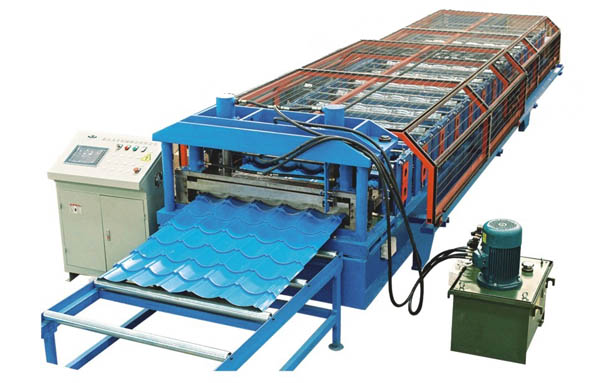

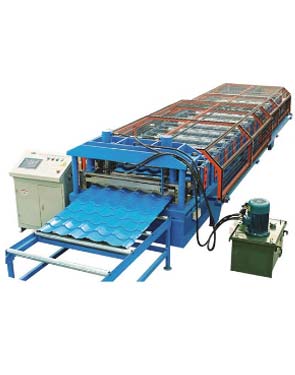

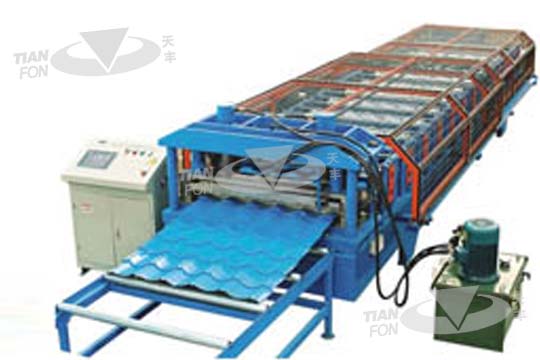

Glazed Tile Roll Forming Line

Equipment overview:
The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

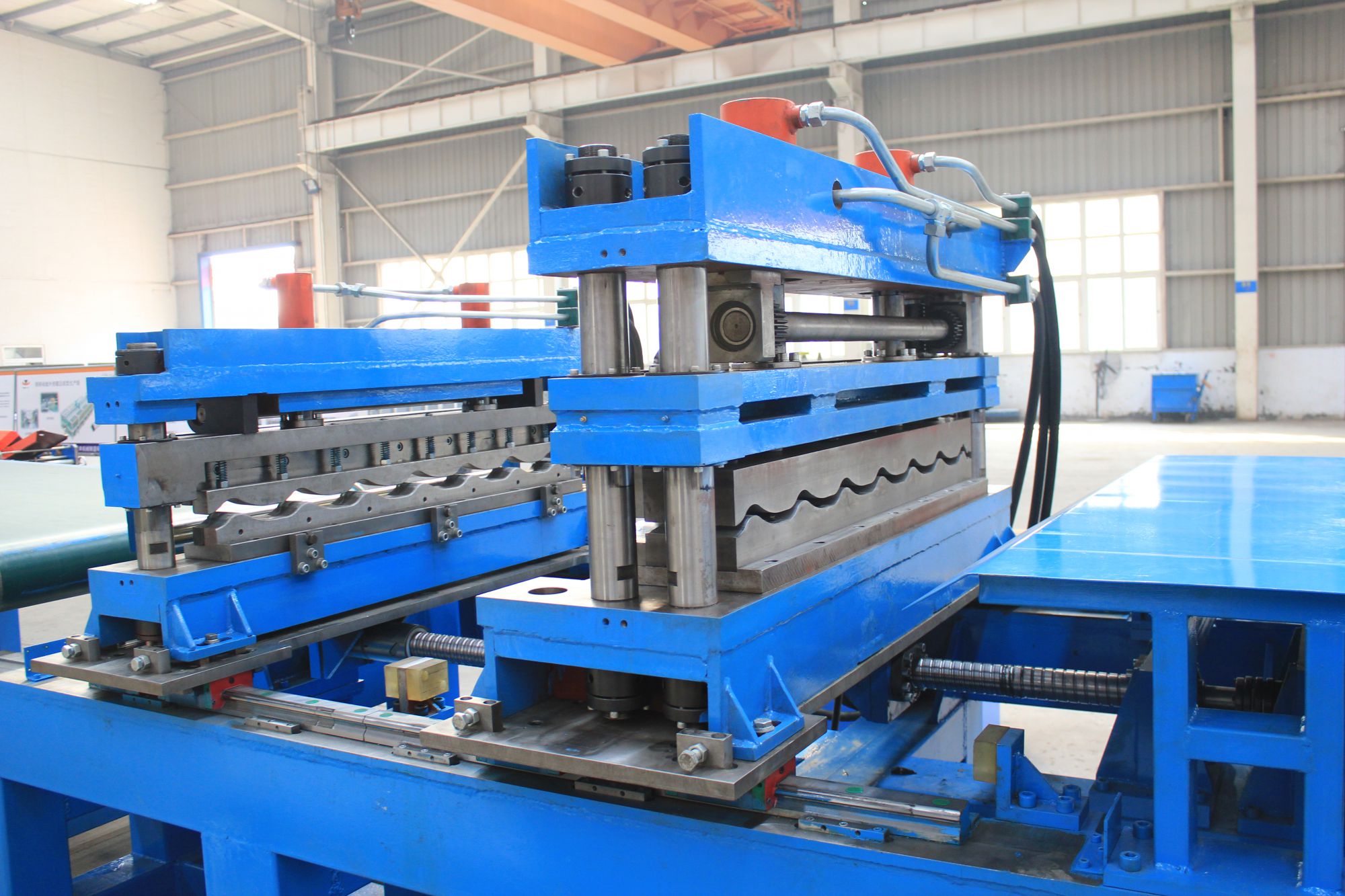

                        Uncoiling –filming –roll forming –Pressing and cutting-discharging

Specification

Equipment overview:
1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
2 The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.




Technical parameters:

Serial number Item Unit Parameters Remark

1
Suitable material		 Type   pre-painted steel coil Q235
strength MPa ≤350
Thickness mm 0.5-0.6mm
Coil internal diameter mm 500,600
Coil weight T 10

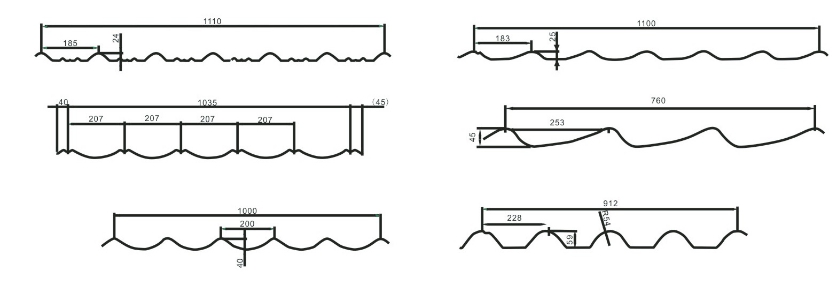

2 Specification mm 120
3 Line speed m/min 4

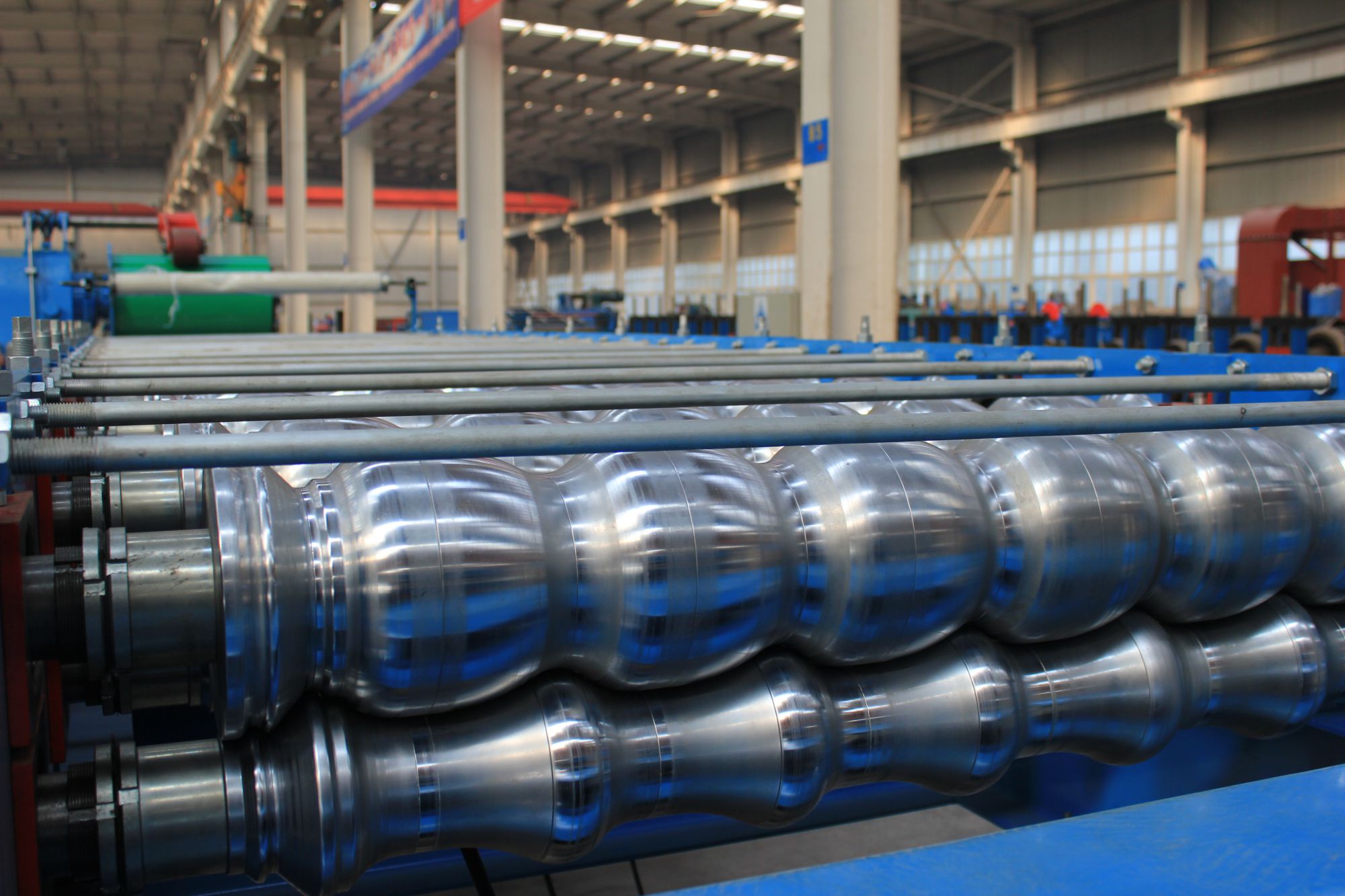

4 Roller material   45# steel, with hard chrome on surface, polishing
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 7.5
8 Power supply   PLC automatic control system
9 Dimension(L*W*H) m

Components
