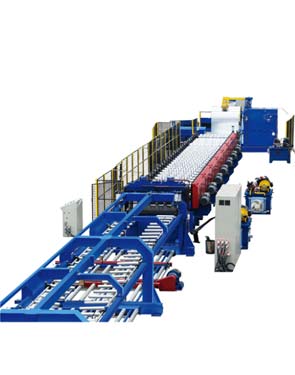

TF Steel structure floor roll forming machine

Equipment overview:
TF steel structure floor roll forming machines adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

                                                      Uncoiling – feeding - roll forming – cutting – stack;

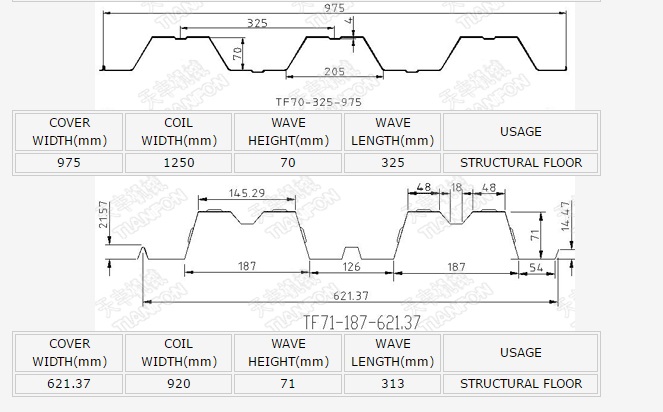

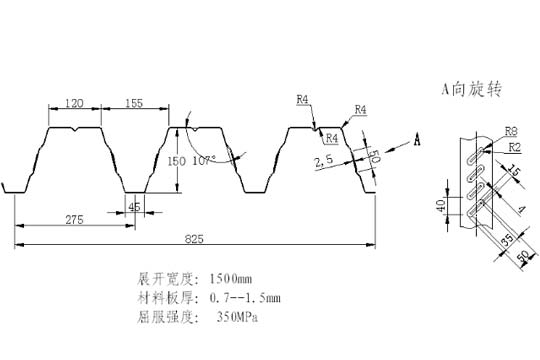

Specification

Equipment overview:
1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. TF deck/ roof panel NC high speed production line, whose production speed can reach 40m/min (includes cutting), multiple profiles can be produced through quick change cassette. PLC central control whole line, includes loading, uncoiler, pre-cutter, roll forming, servo flying cutter, stacker, discharging. HIM operateing, the whole line just needs one operator, many groups data can be set by one time, automatic producing, allocated with remote control, safety light curtain etc whole security systems, which is approved by CE. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.

Technical parameters:

Serial number Item Unit Parameters Remark

1
Suitable material		 Type   galvanized steel
strength MPa ≤350
Thickness mm 0.7—1.5mm
Coil internal diameter mm 500,600
Coil weight T 10
2 Specification mm 120
3 Line speed m/min 25
4 Roller material   45# steel, with hard chrome on surface, polishing
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 7.5

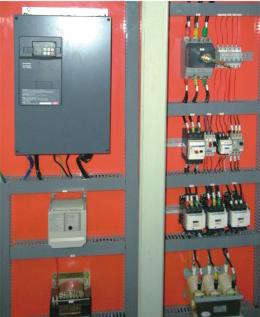

8 Power supply   PLC automatic control system
9 Dimension(L*W*H) m

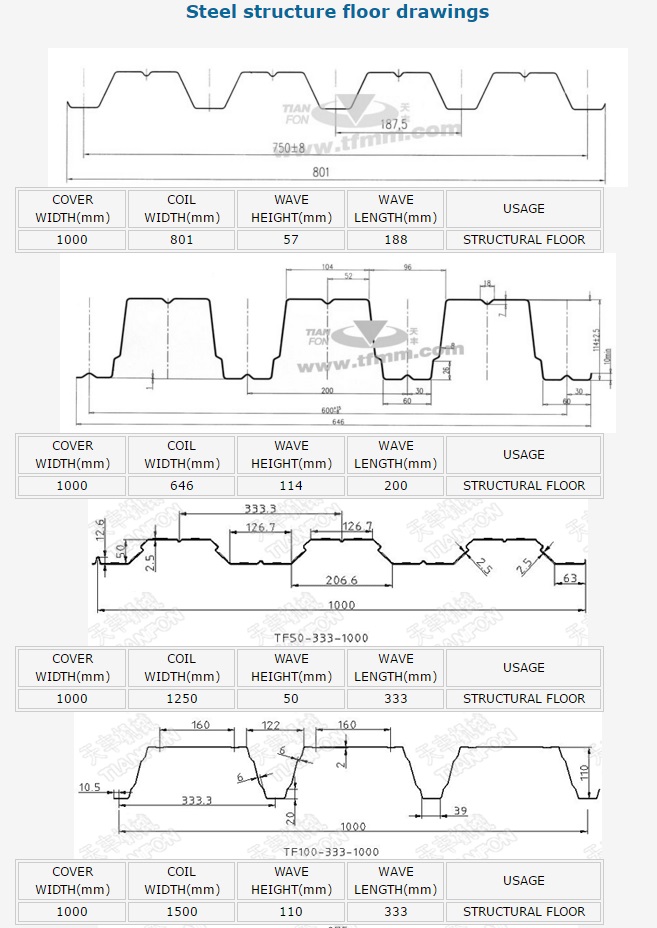

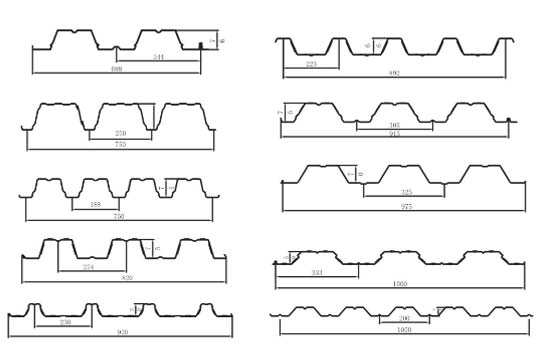

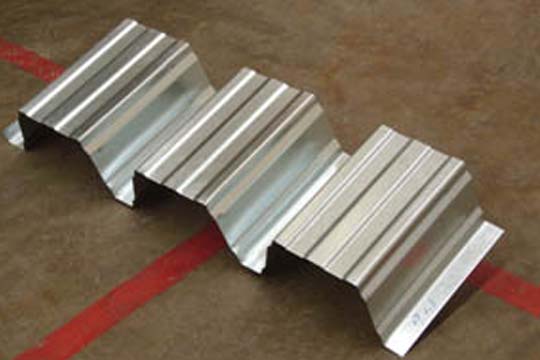

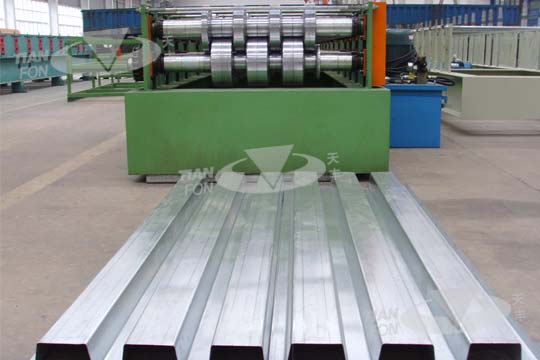

                                 Steel structure floor roll forming machine                                              Decking floor production roll forming line

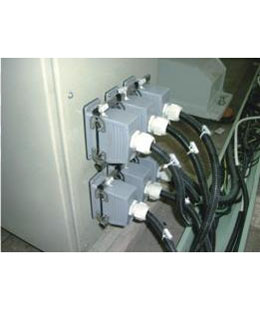

Components

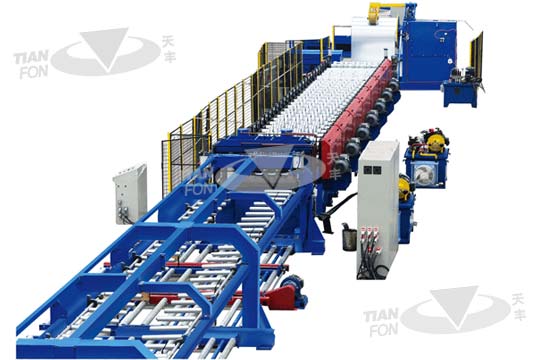

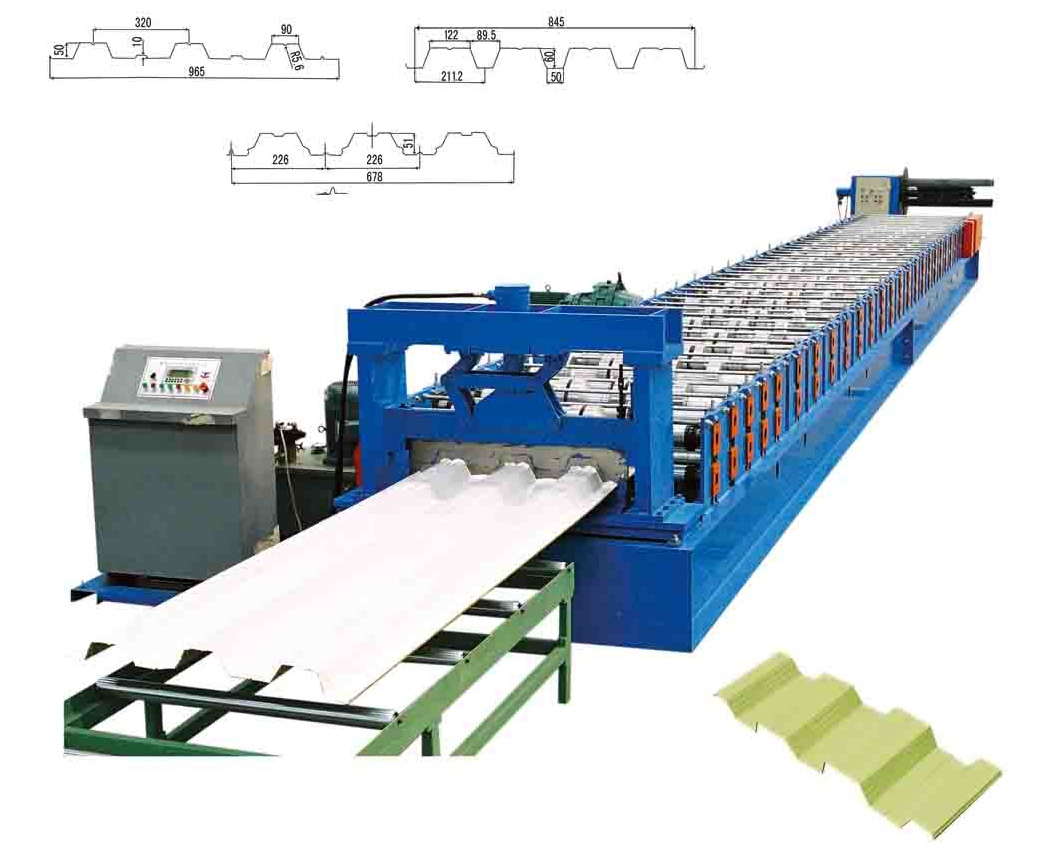

Decking floor production roll forming line

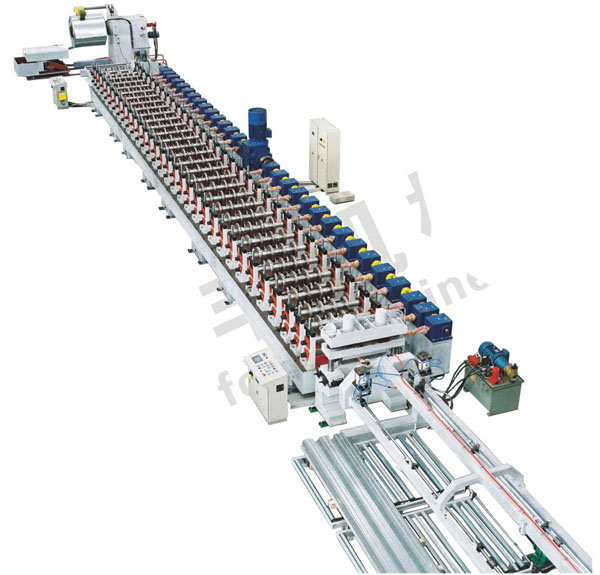

Decking floor production roll forming line


Product Videos
